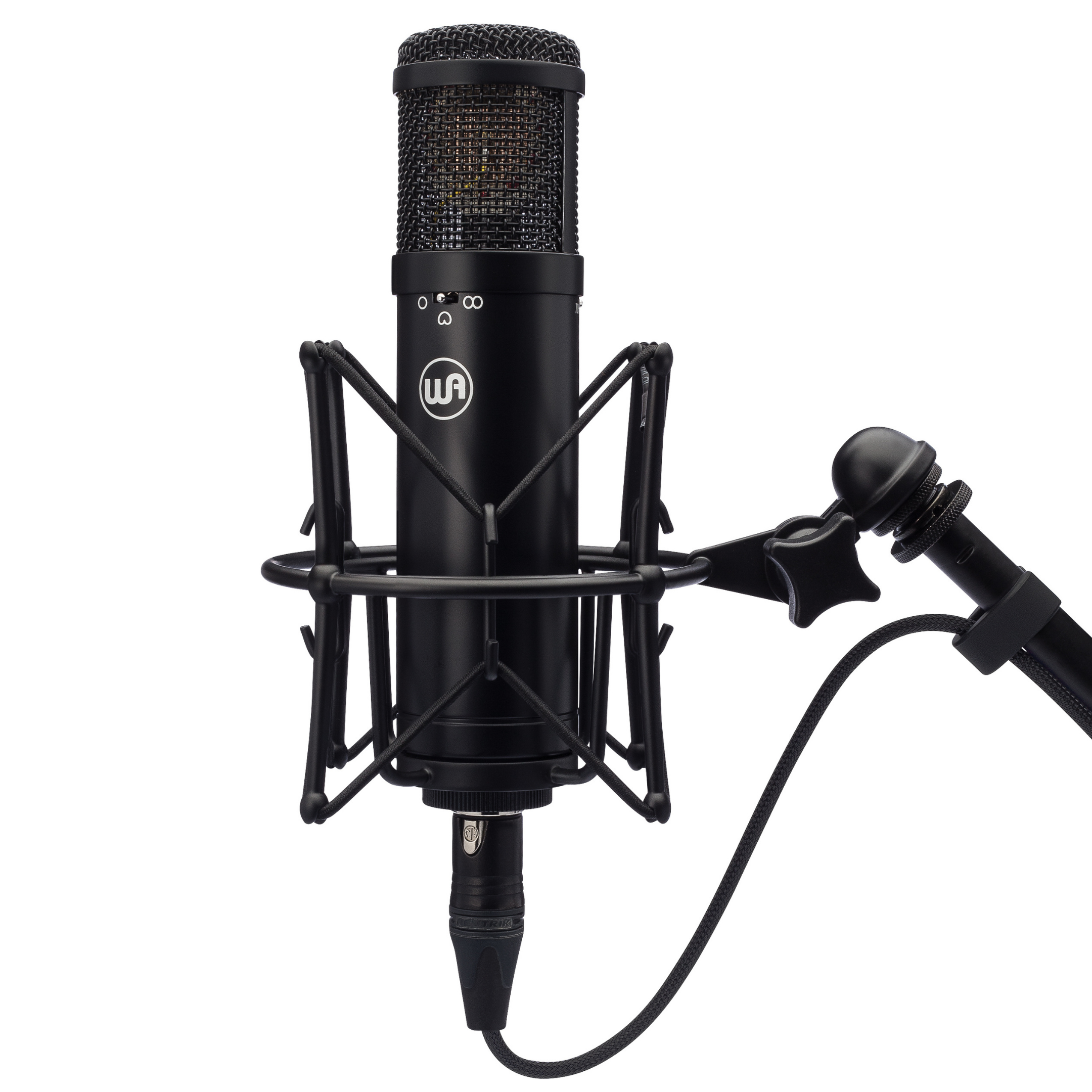

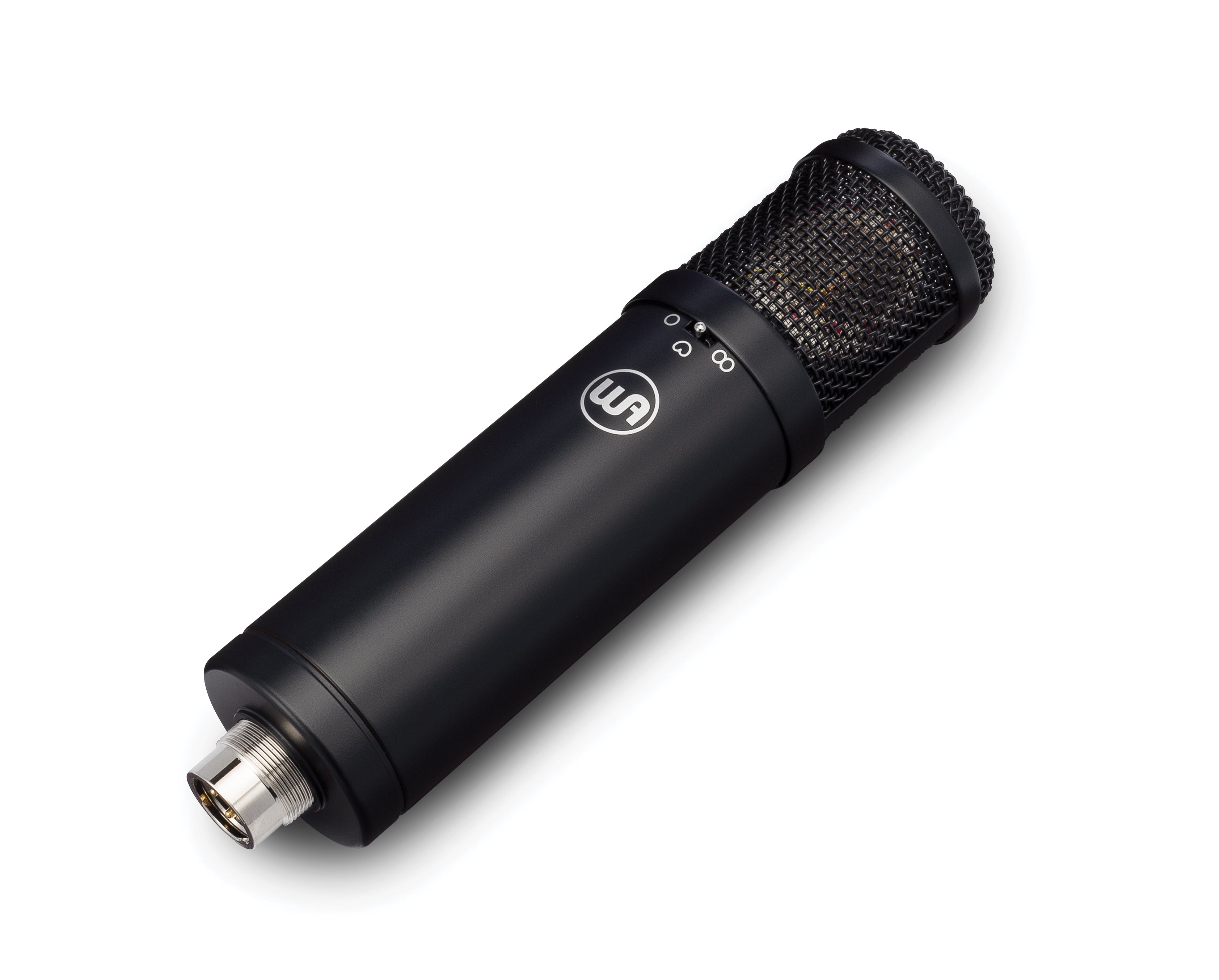

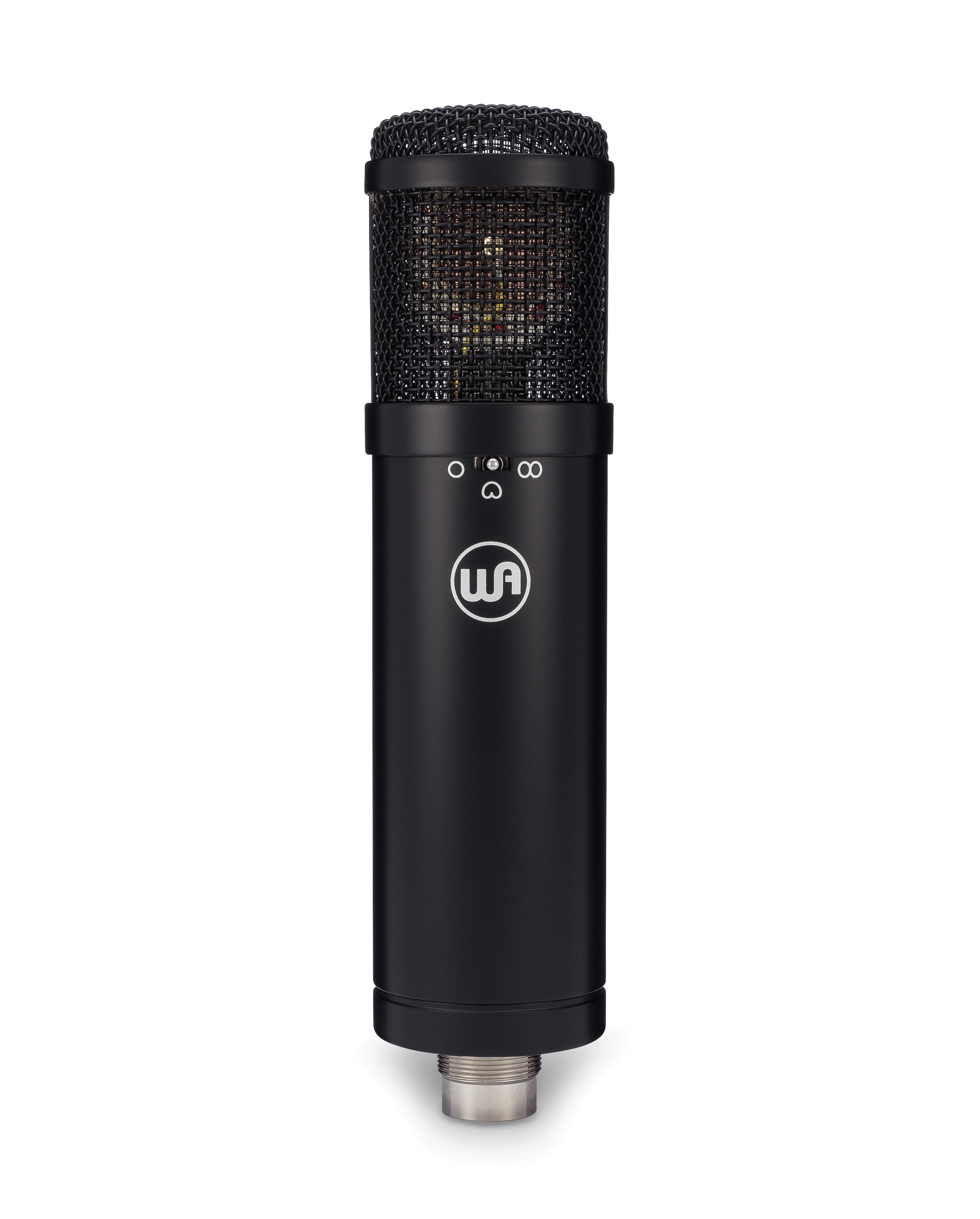

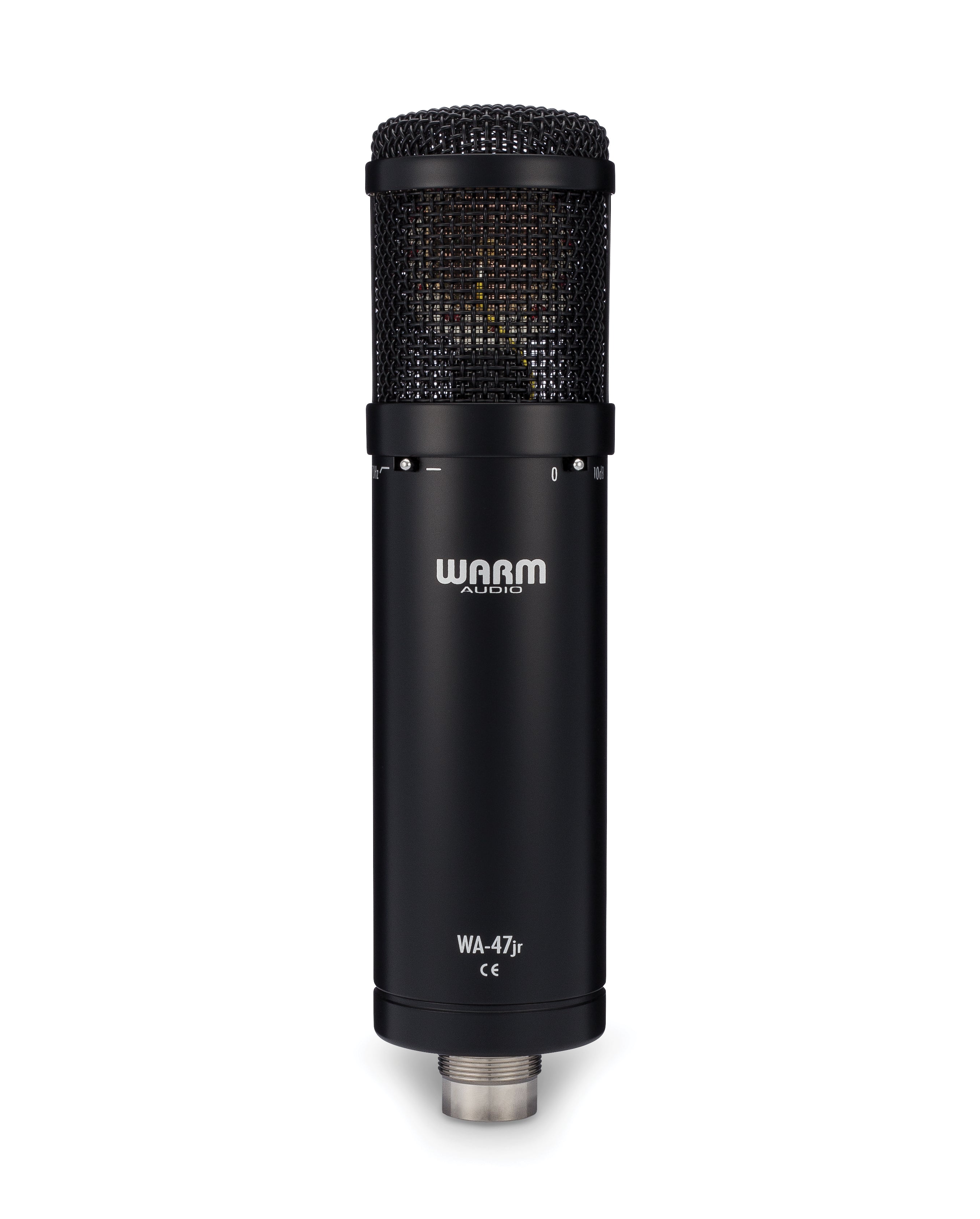

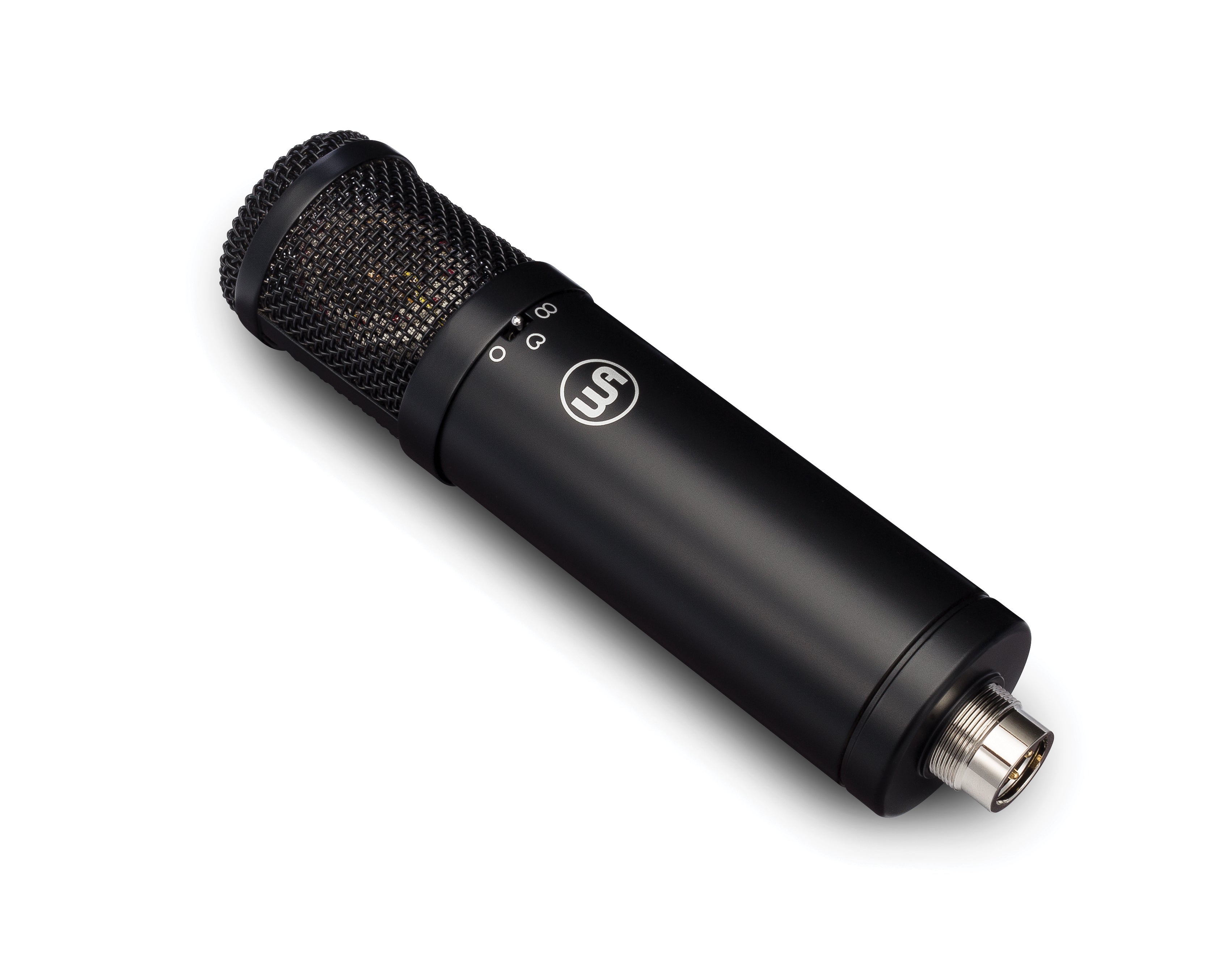

Warm Audio WA-47Jr Large-Diaphragm Condenser Microphone (Black) - Palen Music

Warm Audio WA-47jr

Name: Warm Audio WA-47jr
Brand: Warm Audio
SKU: WA-47JR
Price: 299.00 USD
Availability: InStock

SKU: WA-47JR

$299.00

Financing options available:

In stock

Local pickup available

Warm Audio WA-47jr

Joplin, MO

Pickup currently unavailable

1202 S Rangeline Rd
Suite #6
Joplin MO 64801
United States

Overland Park, KS

Pickup currently unavailable

11625 Metcalf Avenue
Overland Park KS 66210
United States

+19132344454

Springfield, MO

Pickup currently unavailable

1560 East Raynell Place
Springfield MO 65804
United States

Wichita, KS

Pickup currently unavailable

2300 E Lincoln St
Wichita KS 67211
United States

+13162621487

Questions? Ask Our Gear Expert

Real musicians. Real answers. No nonsense. Let’s get your rig dialed in!

(417) 882-7000 • Schedule a chat

Description

Warm Audio WA-47jr

At Palen Music Center, we are thrilled to offer the Warm Audio WA-47jr, a FET transformerless powerhouse that brings the legendary "47" sound to your studio without the vintage price tag. This microphone is built around a custom K47-style capsule reproduction—the same high-end component found in Warm Audio’s flagship tube model. By utilizing a fully discrete signal path featuring premium Toshiba FETs, Wima film capacitors, and Panasonic electrolytic capacitors, the WA-47jr delivers a boutique tonal signature that is both classic and remarkably clean. Whether you are tracking intimate vocals, aggressive electric guitars, or detailed orchestral strings, this versatile workhorse is designed to punch well above its weight class in any professional or home studio environment.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!

Specs

Microphone Type: FET Transformerless Condenser

Capsule: Custom WA-47-B-80v; Gold Sputtered, Dual Large Diaphragm, Single Backplate

Diaphragm Makeup: 6 Microns NOS Mylar (PET Film)

Polar Patterns: Cardioid, Figure-of-Eight, Omnidirectional

Frequency Range: 20Hz–20kHz

Max SPL: 147/157dB (@1kHz, 1kOhms 0.5% THD, 0/-10dB)

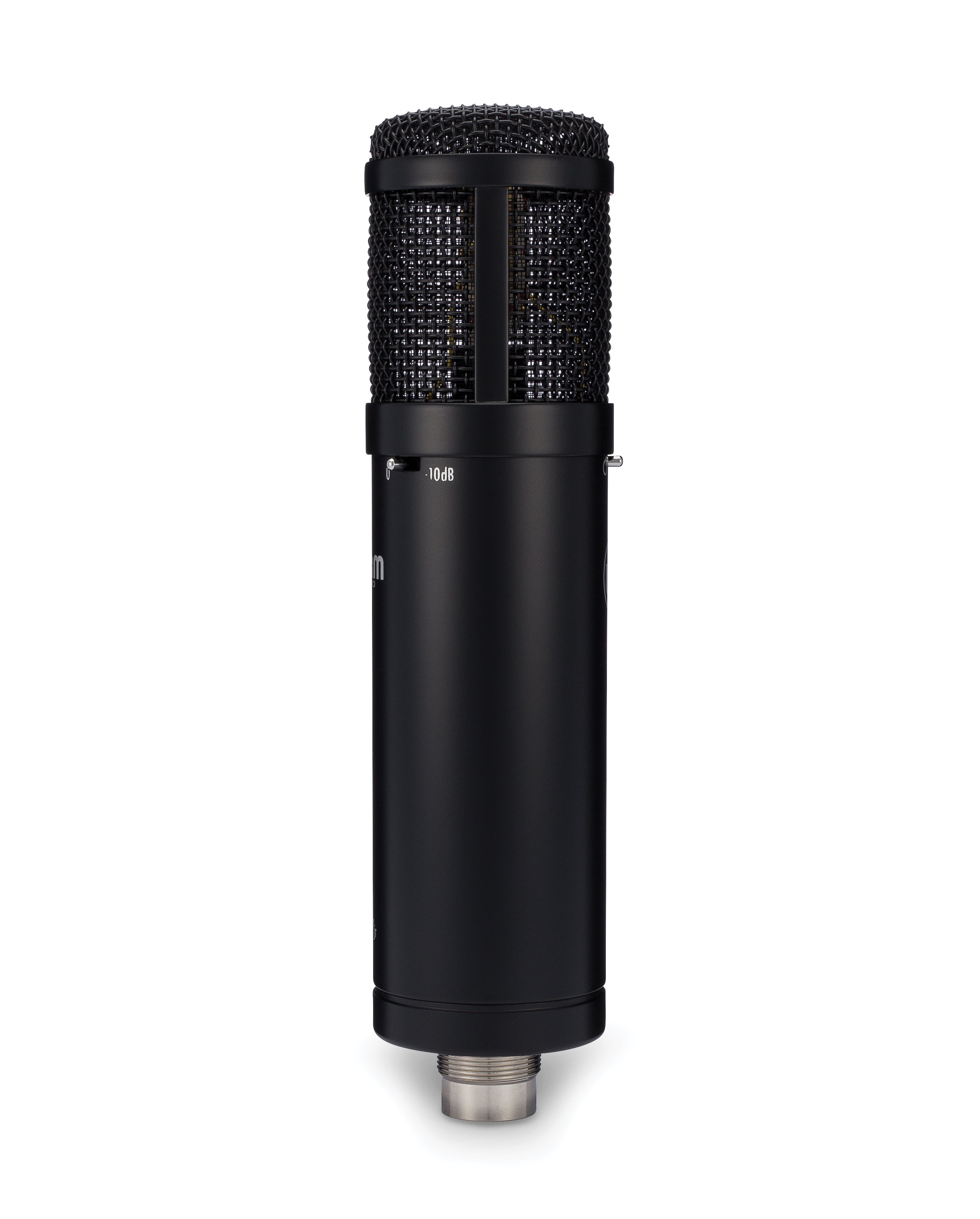

Pad: -10dB

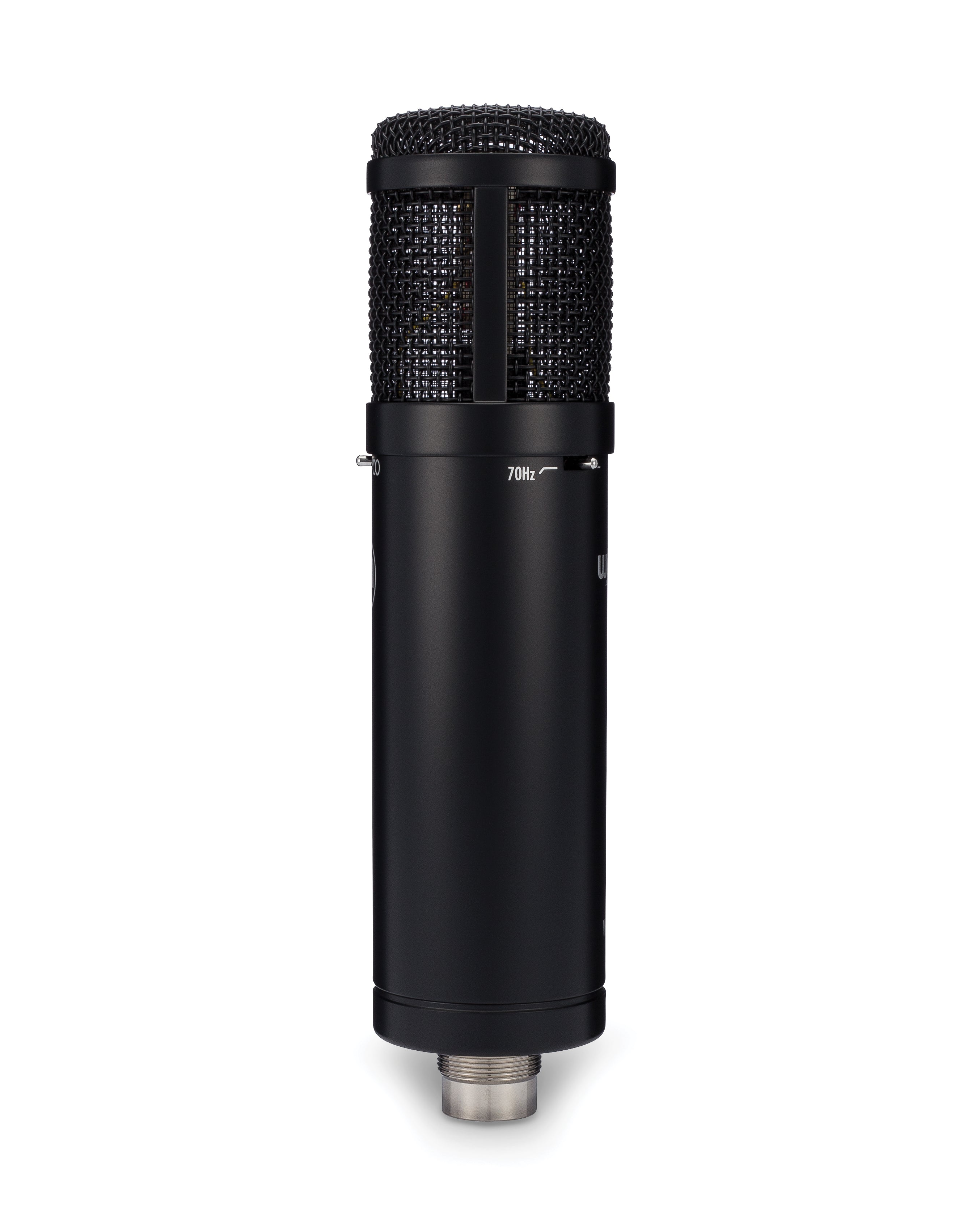

High-Pass Filter: 70Hz

Sensitivity: 10mV/Pa or -40dB

Output Impedance: 100 Ohms

Rated Load Impedance: ≥1kOhms

Self-Noise: 9dBA

Equivalent Noise: 10dBA (IEC651)

Dynamic Range: 138dBA

Weight: 1.1 lbs

Dimensions: 210mm (Length) x 52mm (Diameter)

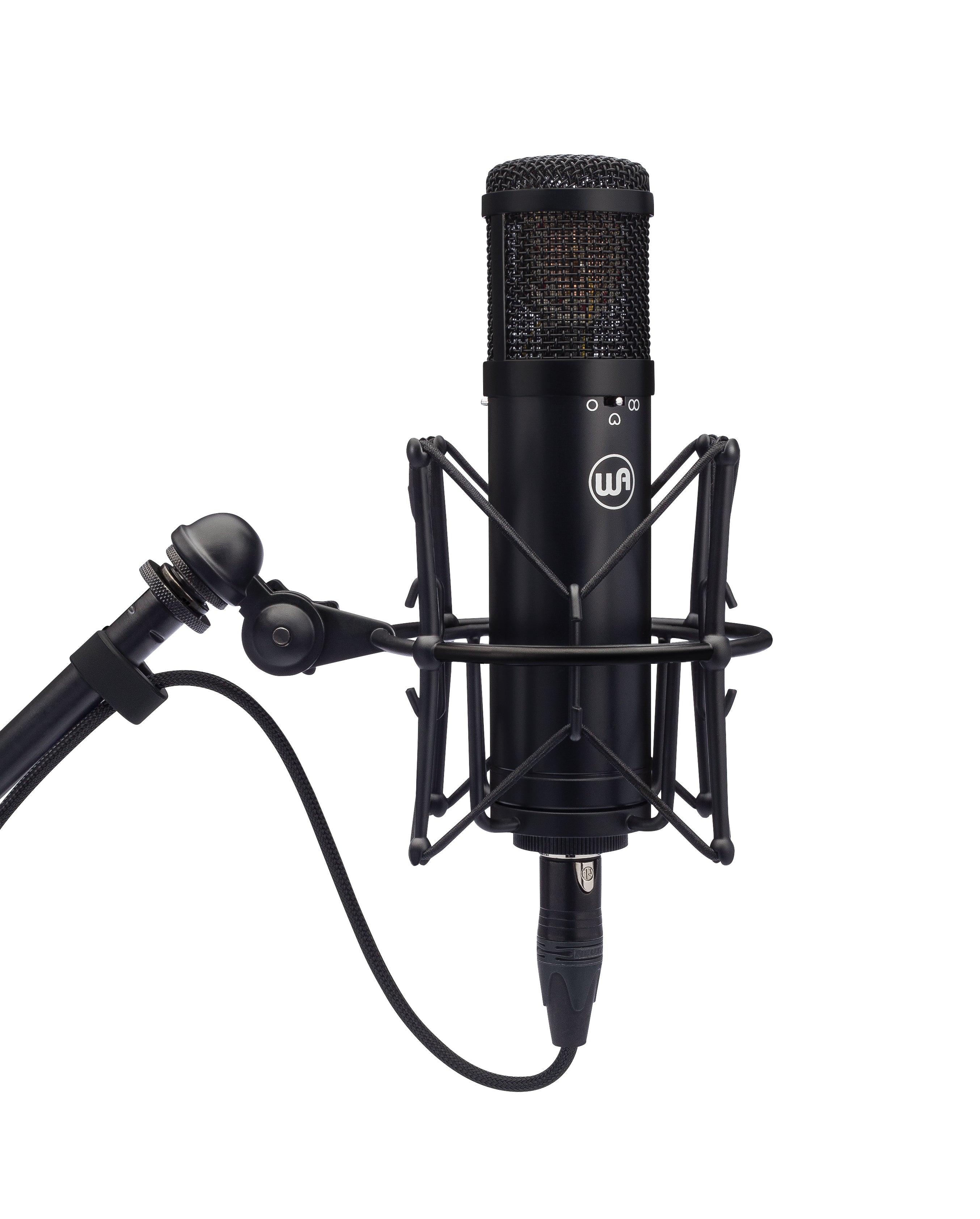

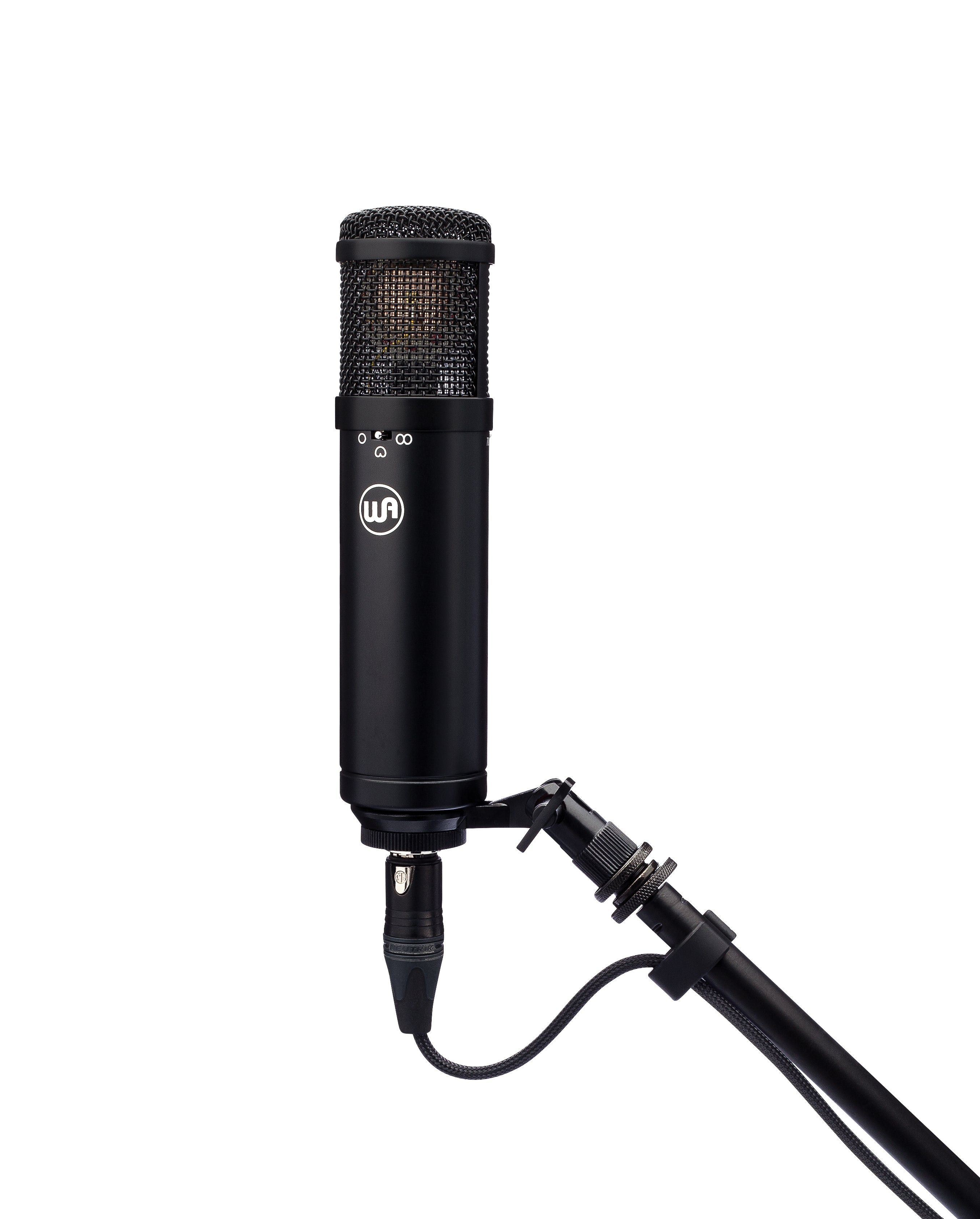

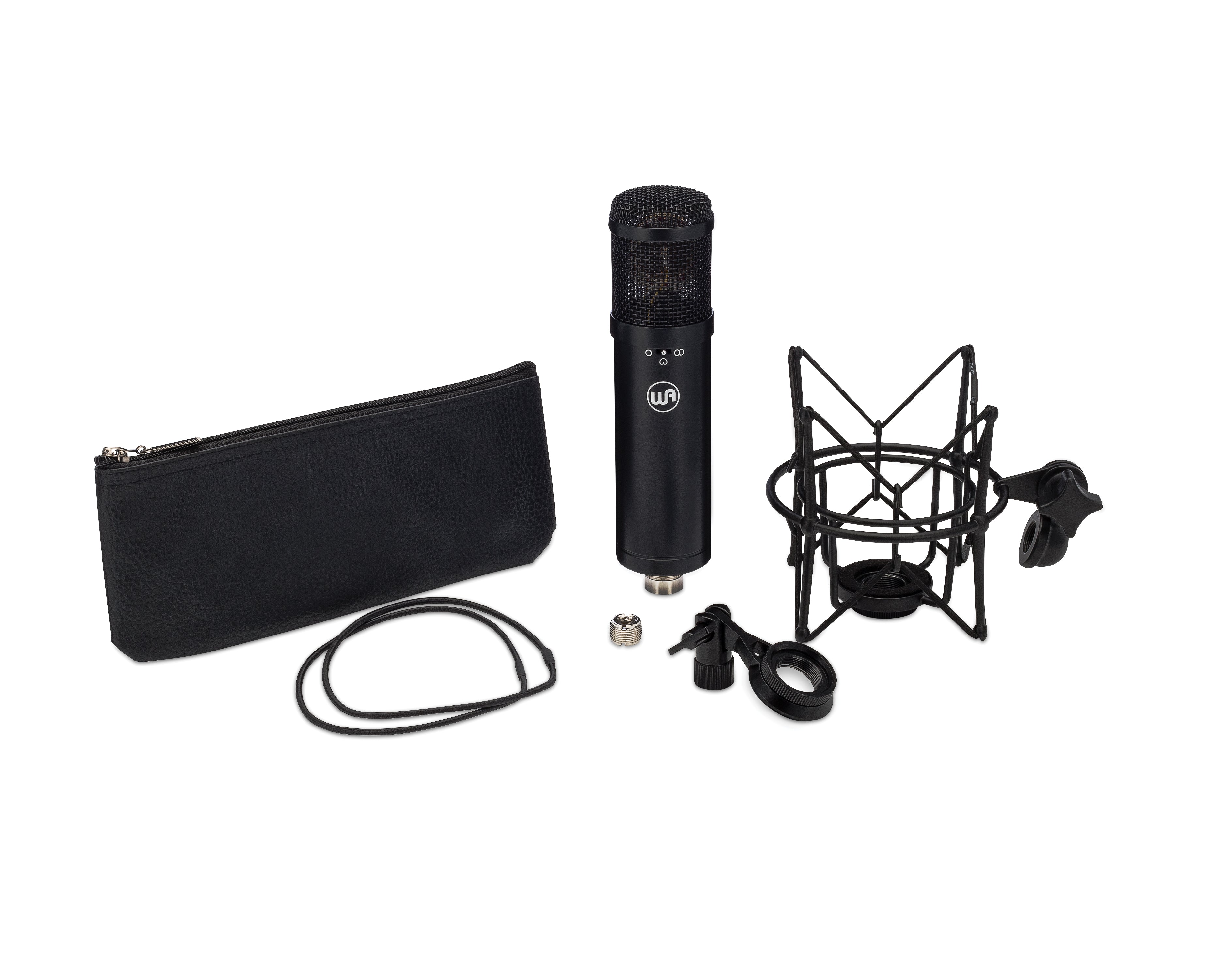

Included Accessories: Shockmount, Hard Mount, Zipper Storage Pouch

Videos

Highlights

Features a custom "True '47" k47-style capsule reproduction for authentic vintage tone.

Versatile recording with three selectable polar patterns: Cardioid, Figure-of-Eight, and Omnidirectional.

Fully discrete, transformerless signal path utilizing high-quality Toshiba FETs and Wima capacitors.

Engineered for high-SPL sources up to 157dB, making it ideal for everything from soft vocals to loud drums.

Includes a comprehensive accessory bundle with a shockmount, hard mount, and zipper storage pouch.

Warm Audio WA-47jr

Please feel free to reach out to our knowledgeable sales staff with any additional questions!

Warm Audio WA-47jr
