Walrus Audio Canvas Mono Line Isolator / D.I.

Walrus Audio Canvas Mono Line Isolator / D.I.

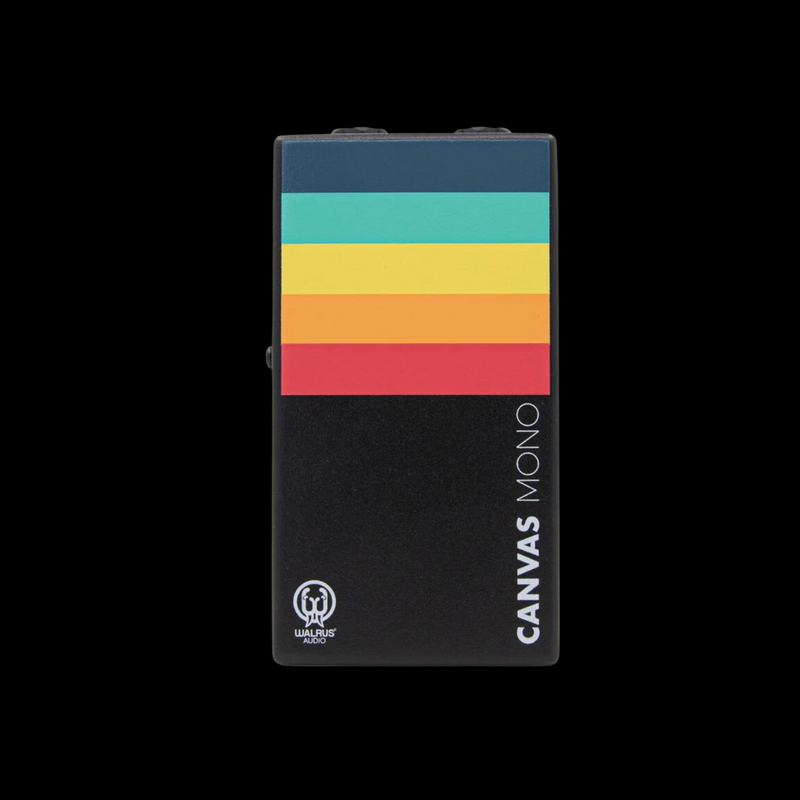

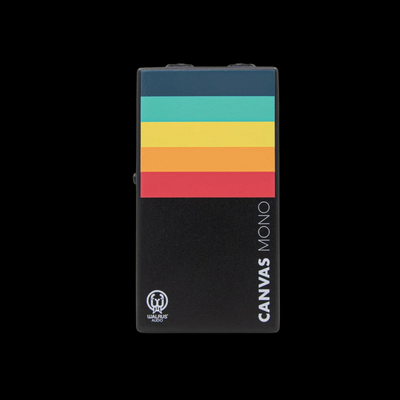

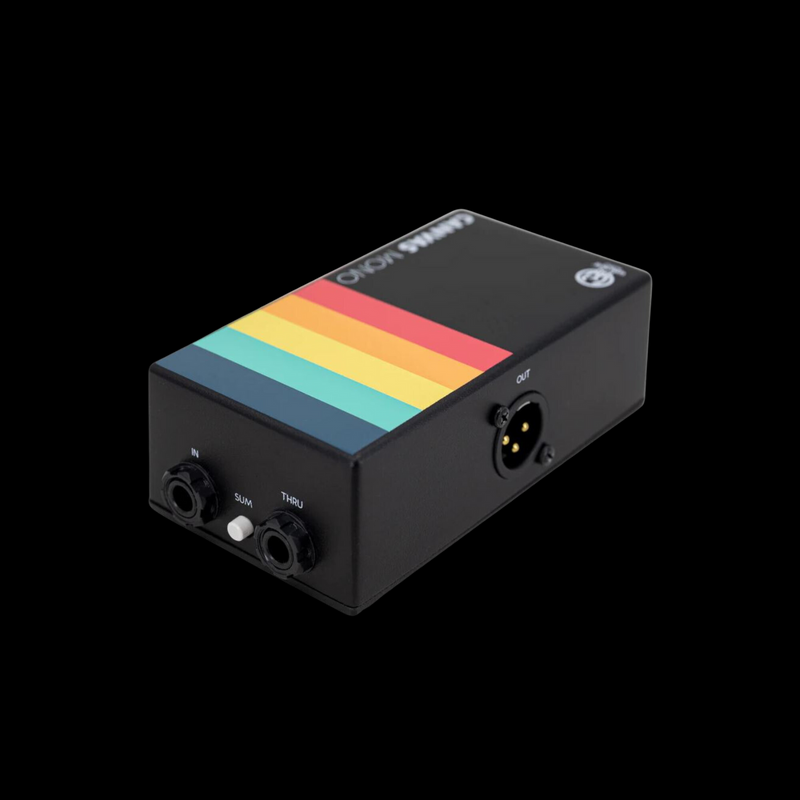

The Canvas Mono is a Direct Box/Line Isolator designed to break down any barriers between you and your audience by providing a flawless audio foundation on which to create your masterpiece. Canvas Mono is designed to be the performance tool that goes wherever you are performing your music, from places of worship to the dive bar downtown.

Highlights

• Flat frequency response from 20Hz-20kHz
• Converts ¼” unbalanced input to XLR balanced output
• Transformer isolated output
• Sum switch turns the Thru channel into a second input when engaged, allowing stereo input signals to be summed to the XLR output
• Pad: Enables a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimize distortion
• D.I./L.I.: Choose between DI or LI (Out for DI, In for LI)
• GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation
• Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response

Specifications

• Type:Passive Direct Box
• Channels:1
• Pads:-15dB
• Ground Lift:Yes
• Inputs:1 x 1/4"
• Outputs:1 x XLR (main out), 1 x 1/4" (thru)
• Height:1.39"
• Width:2.6"
• Depth:4.77"
• Manufacturer Part Number:900-1064
