Walrus Audio Canvas 15 Pedal Power Supply

Walrus Audio Canvas 15 Pedal Power Supply

The Canvas Power 15 has 15 isolated power outputs delivering up to 500mA of clean power at 9v. Two of the outlets are variable voltage, letting you switch between 9v, 12v, and 18v for powering high-voltage pedals. It also includes a USB-C port for powering devices like your phone or tablet while you play.

Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise.

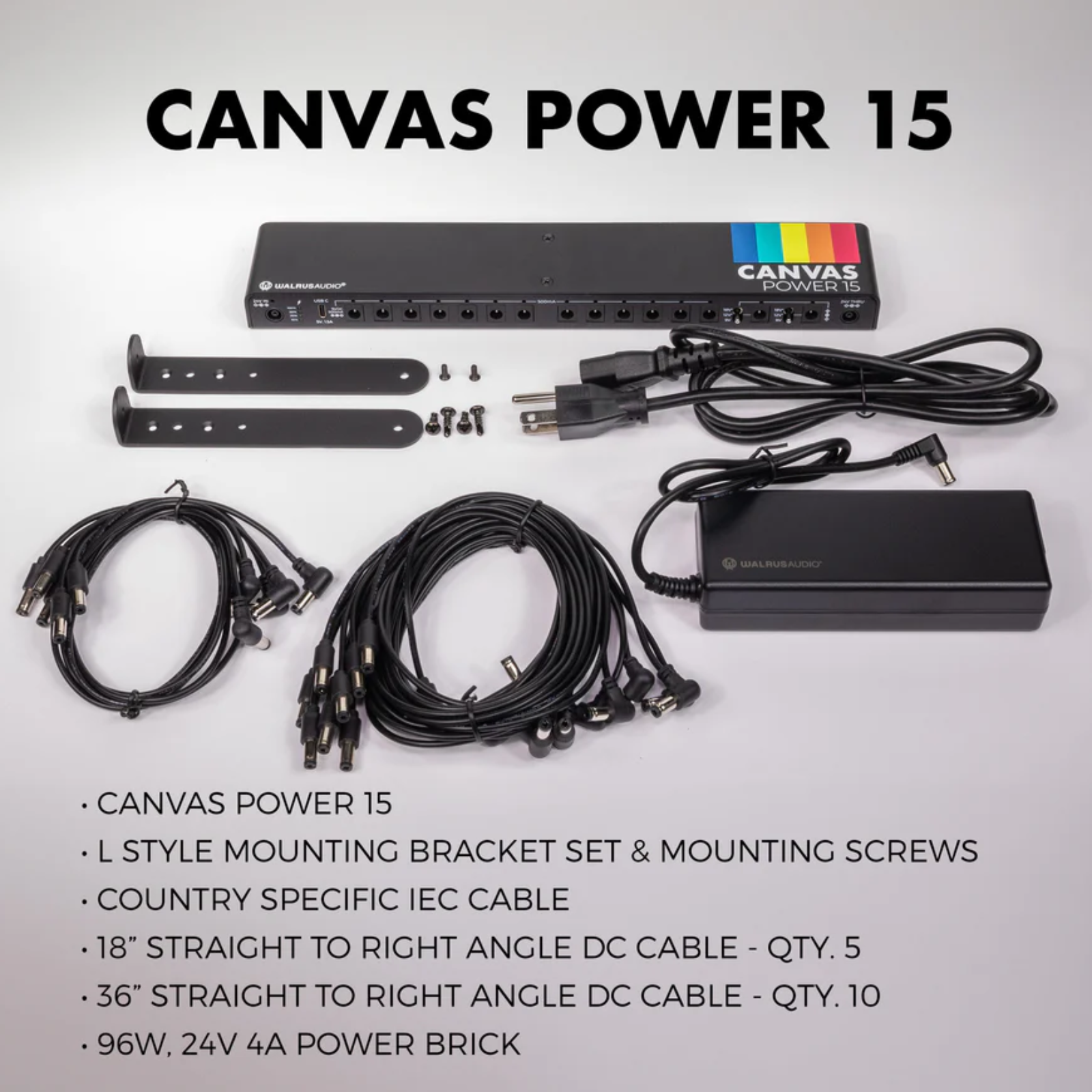

What’s in the Box?
If you purchase Canvas Power 15 Power Supply:
-      1 x Canvas Power Supply
-      18” straight to right angle DC Cable – Qty. 5
-      36” straight to right angle DC Cable – Qty. 10
-      96W, 24V DC 4A power brick and country specific IEC cable
-      L style mounting bracket set

Specifications

• Type:Pedalboard Power Supply
• Inputs:24V DC 4A (AC adapter included)

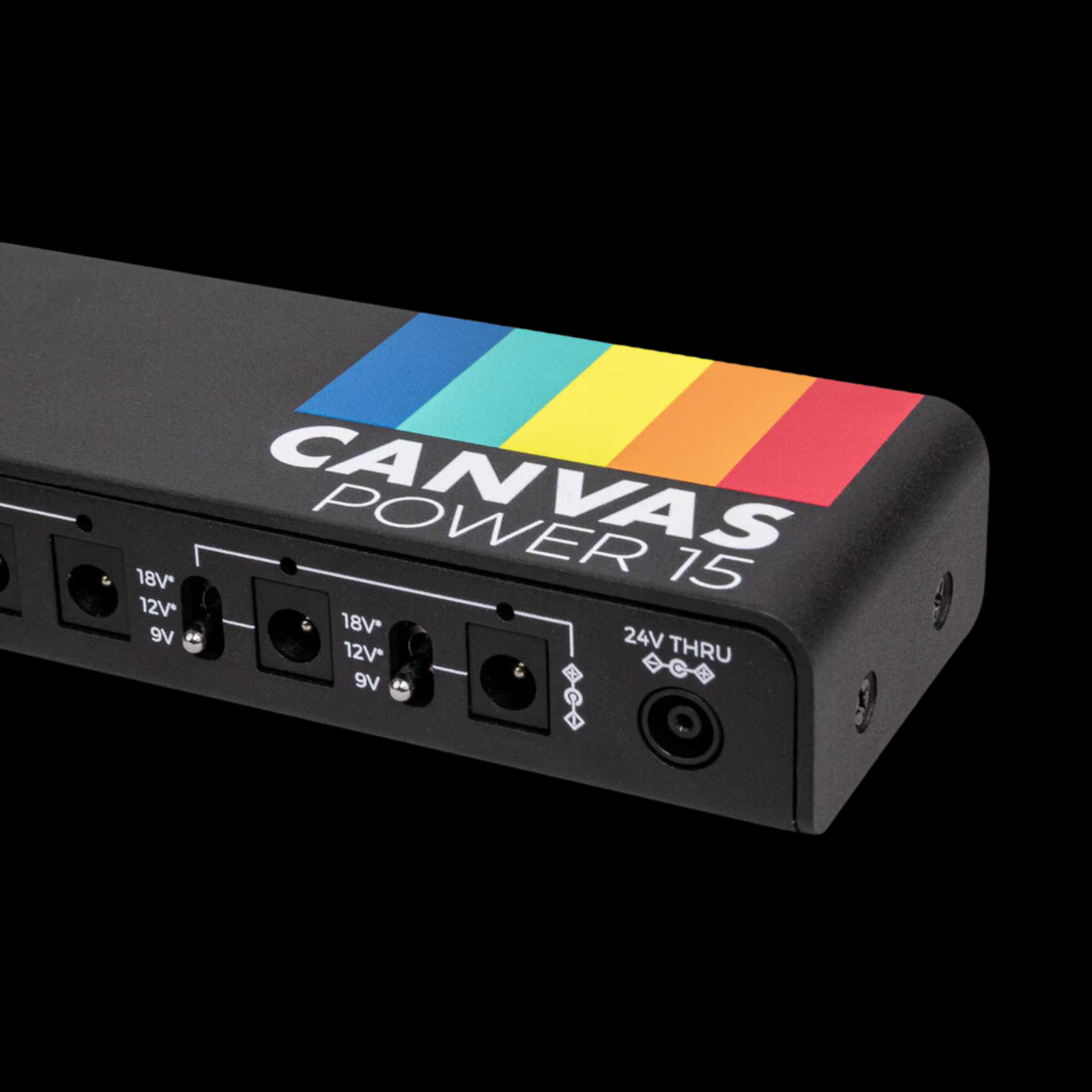

• Outputs:13 x 9V DC 500mA, 2 x 9V/12V/18V DC 500ma, 1 x 24V DC pass thru
• Maximum Output Current:500mA total

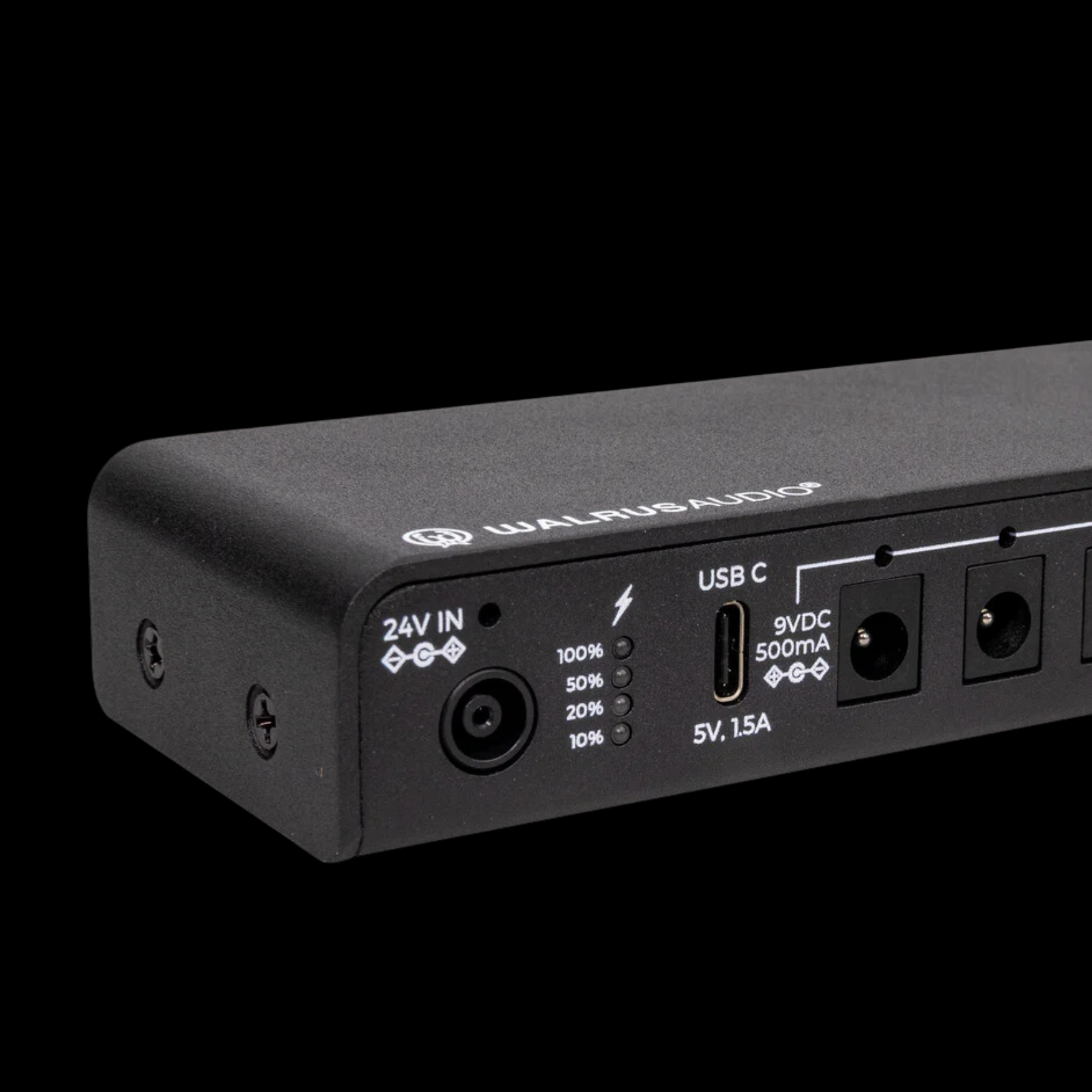

• USB:1 x USB-C (5V, 1.5A out)
• Connectivity:2.1mm barrel
• Isolated Output:Yes
• Height:1"
• Width:12.28"
• Depth:2.12"
• Weight:0.93 lbs.
• Manufacturer Part Number:900-1089US
