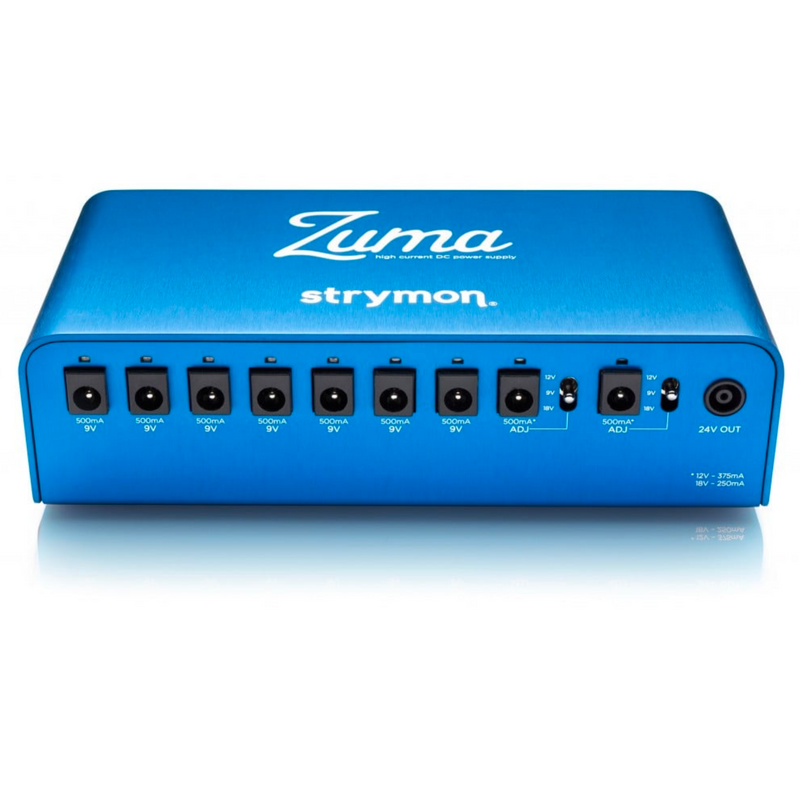

Zuma is the highest horsepower, most technologically advanced effects pedal power supply of its kind. Zuma offers nine high-current, individually isolated, ultra-low-noise outputs—each with its own dedicated regulator and custom transformer. Designed to meet the needs of today’s players, each output provides a staggering 500mA of current.
Zuma’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.
Zuma’s all analog circuitry offers two stages of isolation. Each of the nine output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Zuma also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.
Playing gigs all around the world? No need to purchase separate power supplies for your international tour. Zuma has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you’re on 120V, 240V, 100V, or any variation in between, Zuma will deliver clean, reliable power to your pedals, even if the venue has dirty power.
Have a growing rig? Or unique requirements that require distributed power? Add more outputs to your Zuma by connecting a Strymon Ojai (sold separately) with the 24V Out jack. Use Zuma by itself if that’s all you need, or as part of a truly expandable, modular power distribution system that can grow with your pedalboard.
Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies. Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.
Do you have pedals that require 12V or 18V? Zuma has you covered. Two channels have selectable 9, 12, or 18V output voltages.
Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!
Don’t let the blue chassis fool you: Zuma is green at heart. Significantly more efficient than linear power supplies, Zuma is able to deliver substantially more current while handling a much wider range of input voltages. Zuma’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.
| Pedal Type: | Power Supply |
|---|---|
| Inputs: | 100-240V AC (IEC cable included) |
| Outputs: | 7 x 9V DC, 2 x 9/12/18V DC, 1 x 24V out jack (for additional Ojai) |
| Maximum Output Current: | 500 mA per outlet |
| Featureas: |
Isolated Outlets |
| Height: | 1.8" |
| Width: | 6.8" |
| Depth: | 3.3" |
| Weight: | 1.25" |
| Manufacturers Part Number: | Z12A-ZUMA |
