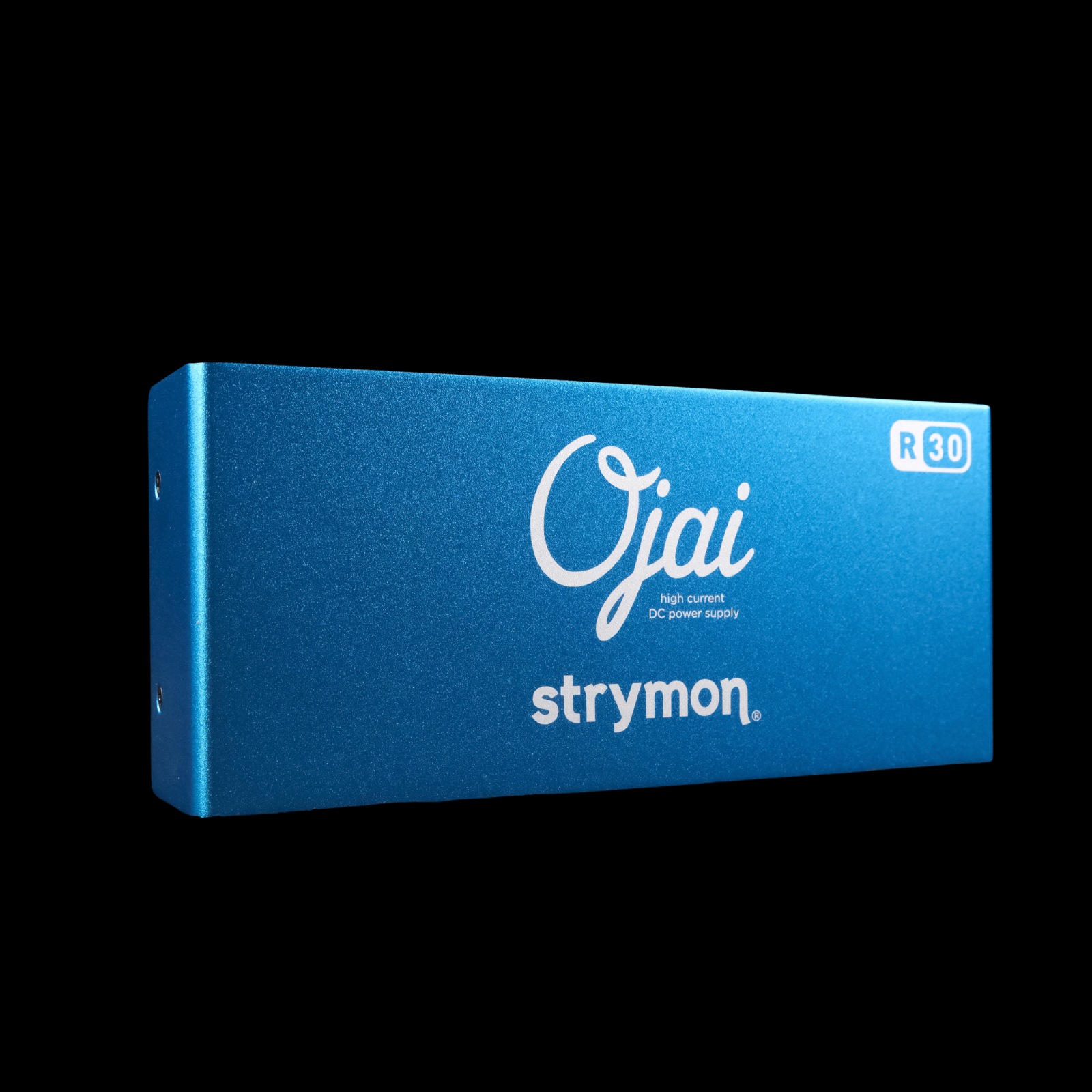

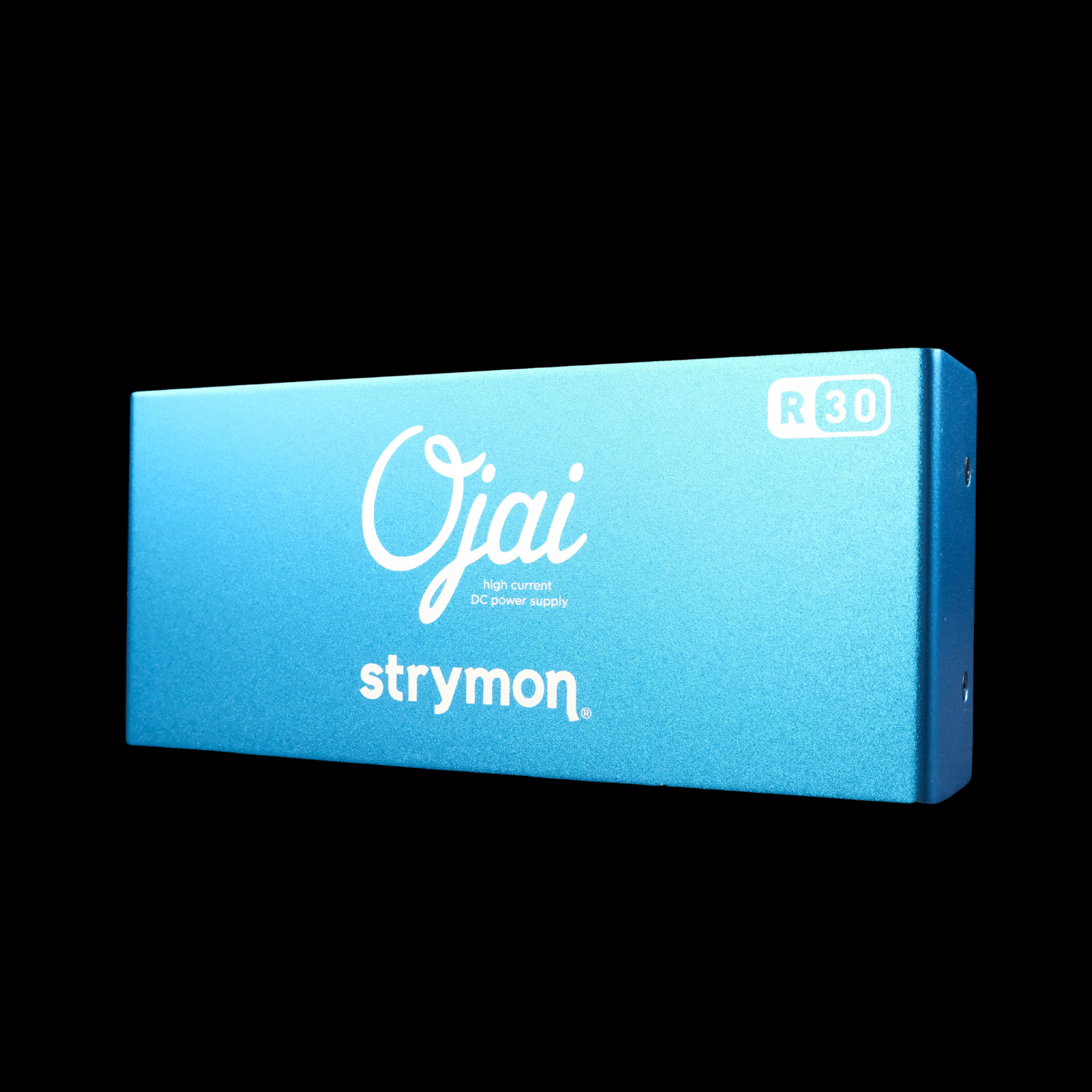

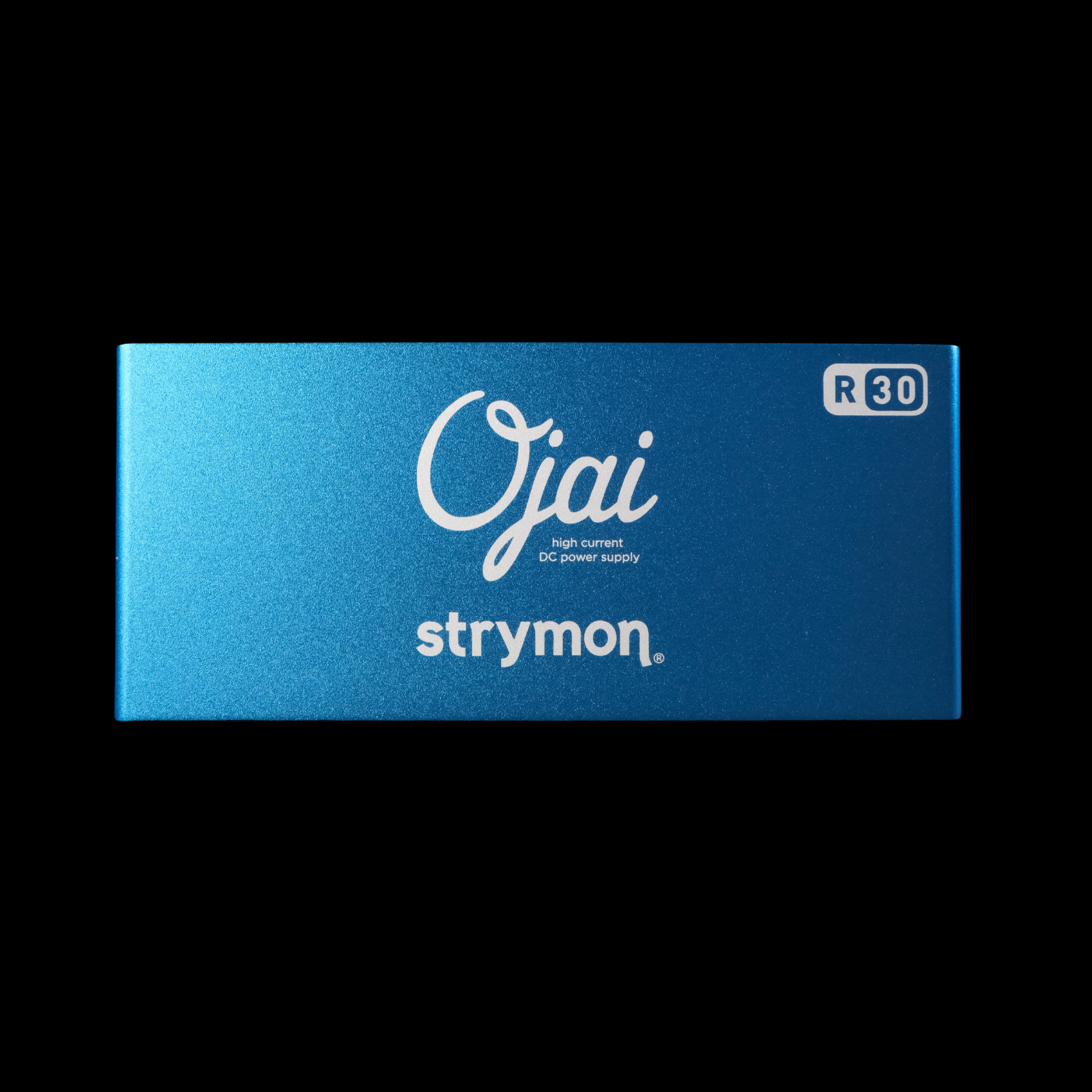

Strymon Ojai R30 5-Output Power Supply
Power your pedals with Ojai R30—the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.
Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Ojai's all analog circuitry offers two stages of isolation. Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.
Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to our Zuma power supply (sold separately).
Highlights
- 5 Fully Isolated Outputs
- 2 Switchable Outlets for 9/12/18V operation
- Expandable (add an Ojai)
- Dual isolation ensures noise free operation
- Includes all necessary cables
Specifications
- Pedal Type: Power Supply
- Inputs: 100-240V AC (IEC cable included)

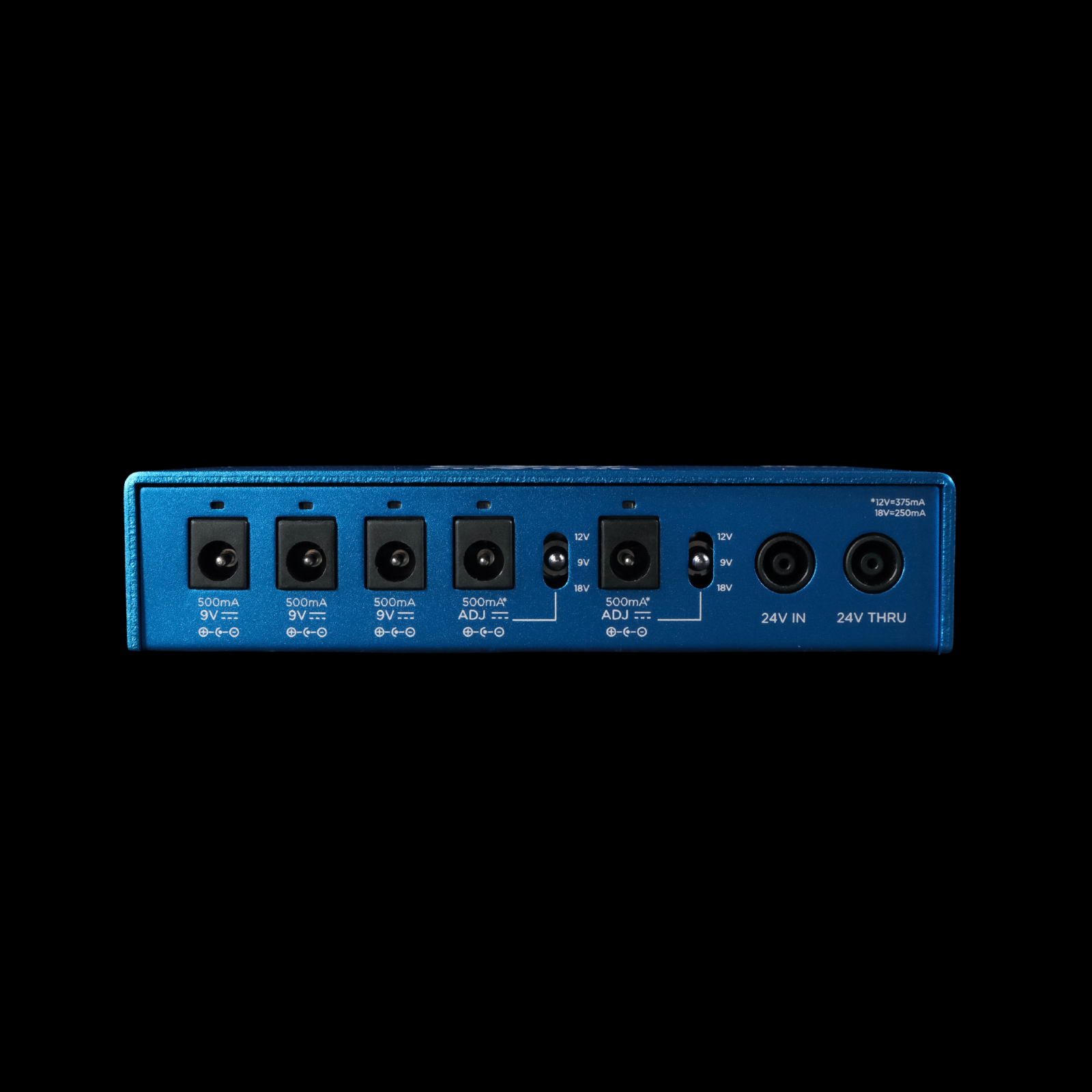

- Outputs: 3 x 9V DC, 2 x 9/12/18V DC, 1 x 24V out hack (for additional Ojai)
- Maximum Output Current: 500 mA per outlet
- Features: Isolated Outlets
- Height: 1.15"
- Width: 5.1"
- Depth: 2.3"
- Weight: 6 oz.
