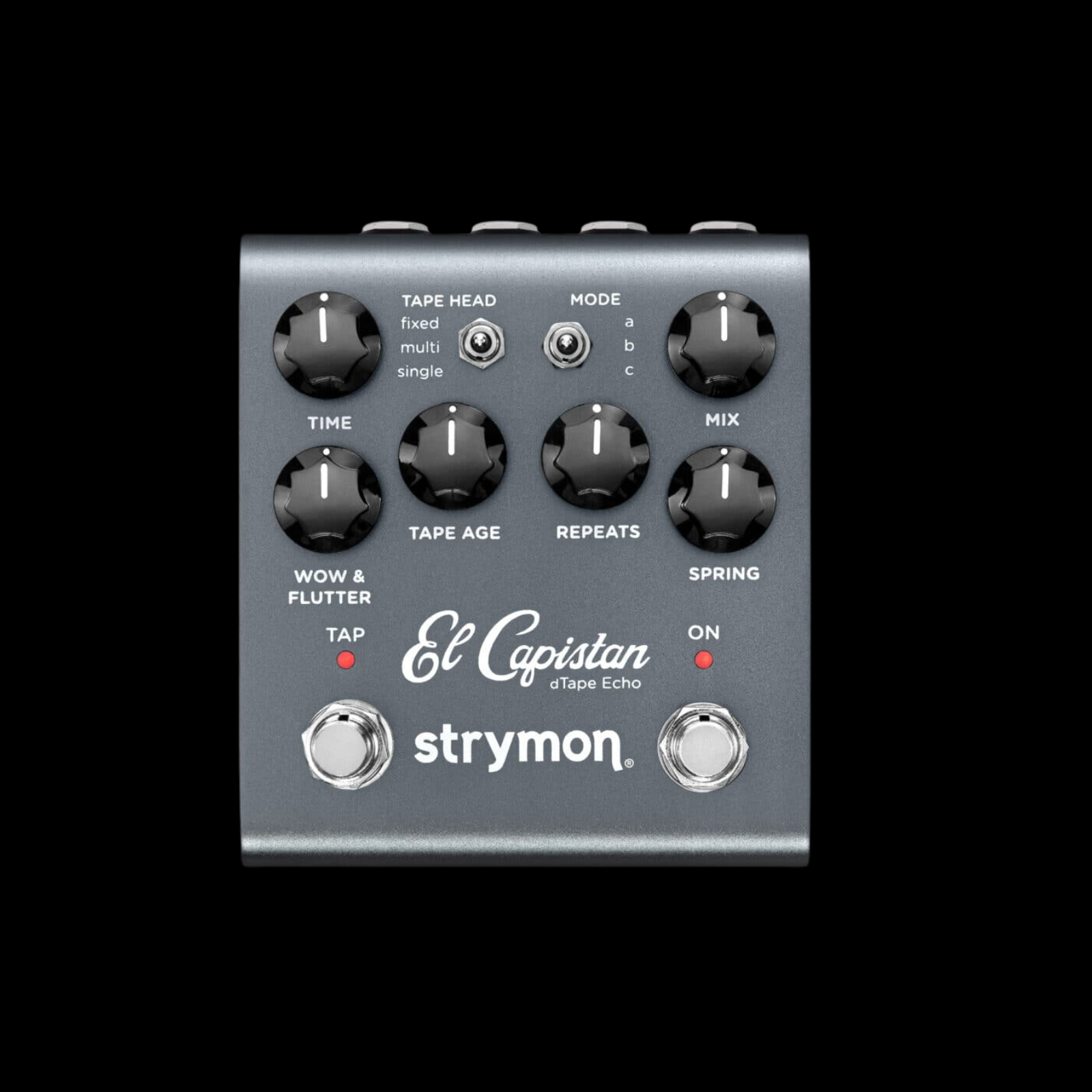

Strymon El Capistan dTape Echo Pedal V2
El Capistan provides three different tape machine types in one pedal, each with three unique modes and extensive control over tape quality, machine health and tone shaping.
Go from the full-range sonic stability of a fresh-from-the-factory echo machine, to the heavily fluctuating sound of a road-worn unit in need of service. Enjoy the full bodied sound of fresh tape, or dial in the dark, gnarled and vibey qualities of worn out tape.
Our meticulously handcrafted dTape™ technology and powerful ARM DSP give you a range of tape experiences that would be unattainable with a single traditional tape machine. Plus you get sound on sound looping, all without the headaches of tape machine maintenance and repair.
High impedance ultra low-noise discrete Class A JFET TRS stereo input.
Low impedance independent TS stereo outputs.
Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection.
USB jack for controlling via MIDI from a computer or for performing firmware updates.
Dedicated tap tempo & On/Off footswitches
Premium JFET analog front end
Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
520MHz ARM Superscalar processor
32-bit floating point processing
20Hz to 20kHz frequency response
Audio Input Impedance: 1M Ohm
Audio Output Impedance: 100 Ohm
Strong and lightweight anodized dark gray aluminum chassis
Pedal Type: Tape Echo
Effects: Fixed Head, Multi Head, Single Head, Spring Reverb
Max Delay Time: 1500ms
Looping Time: 20 seconds
Tap Tempo: Yes

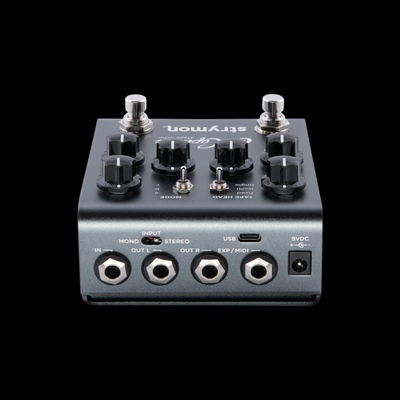

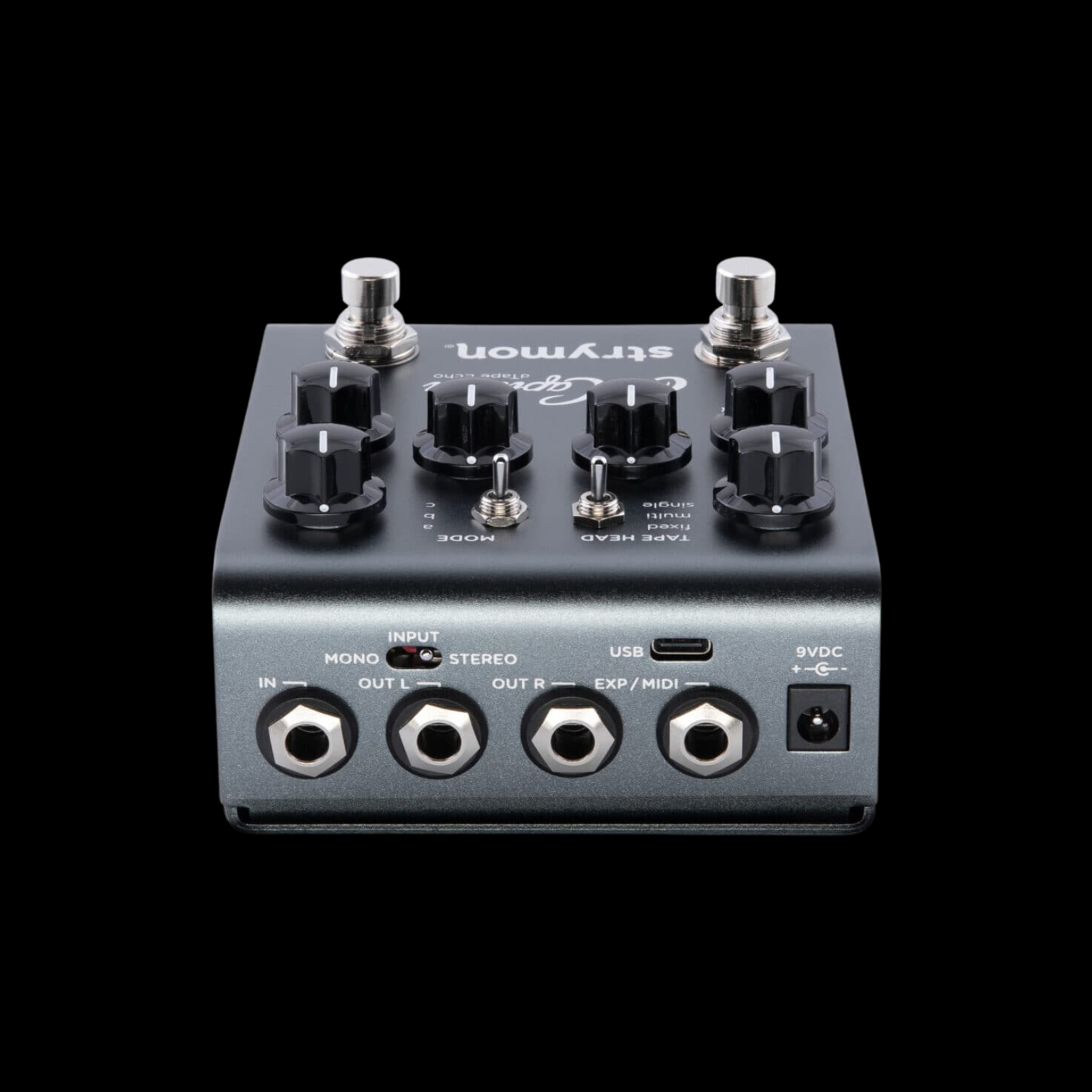

Inputs: 1 x 1/4" (mono/stereo)
Outputs: 2 x 1/4"
MIDI I/O: In/USB
Other I/O: 1 x 1/4" TRS (expression/MIDI)
USB: 1 x USB-C
True Bypass: Yes, switchable to Buffered
Power Source: 9V DC 300mA power supply (included)
Please feel free to reach out to our knowledgeable sales staff with any additional questions!
