Shure GLXD16+ Digital Wireless Guitar Pedal System

Shure GLXD16+ Digital Wireless Guitar Pedal System

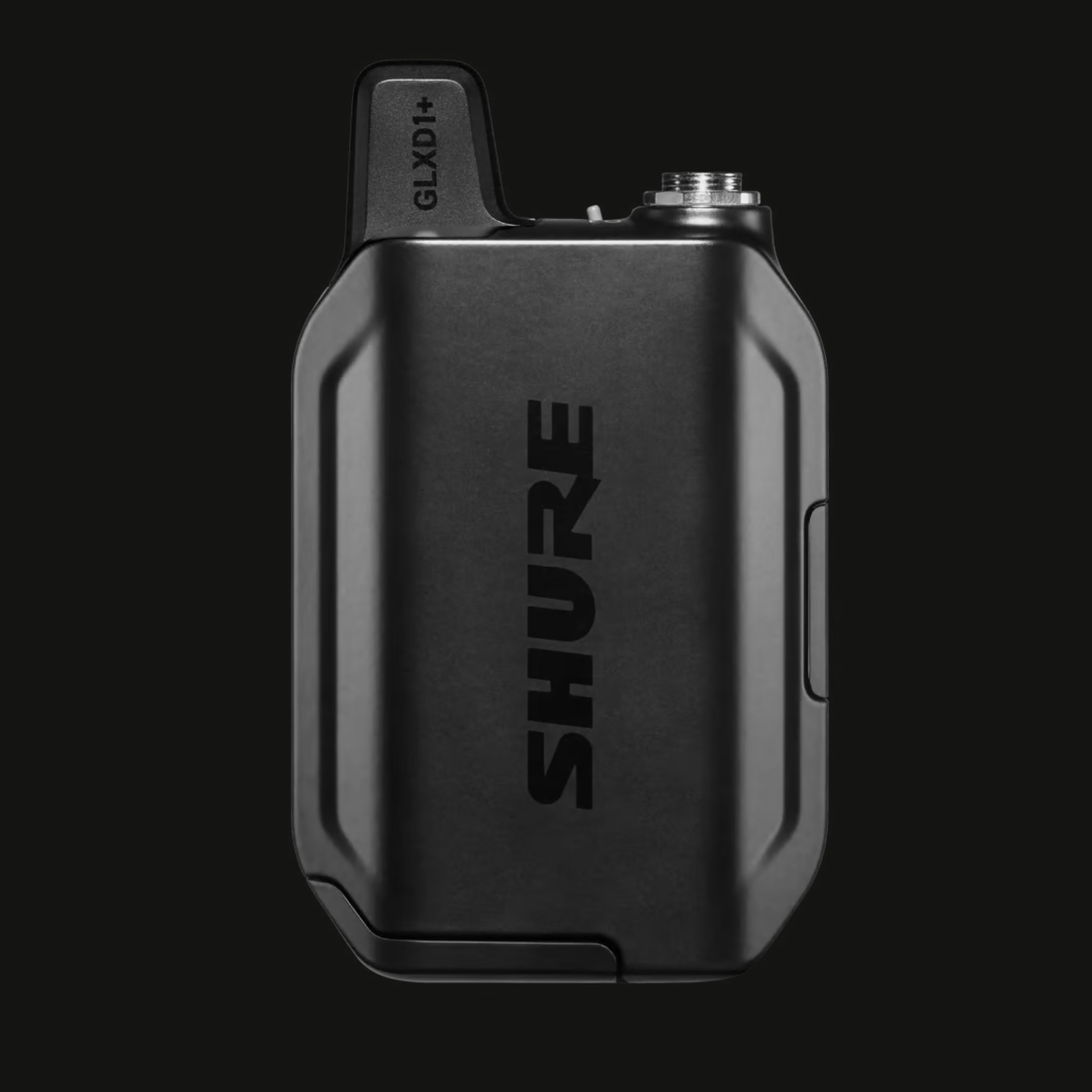

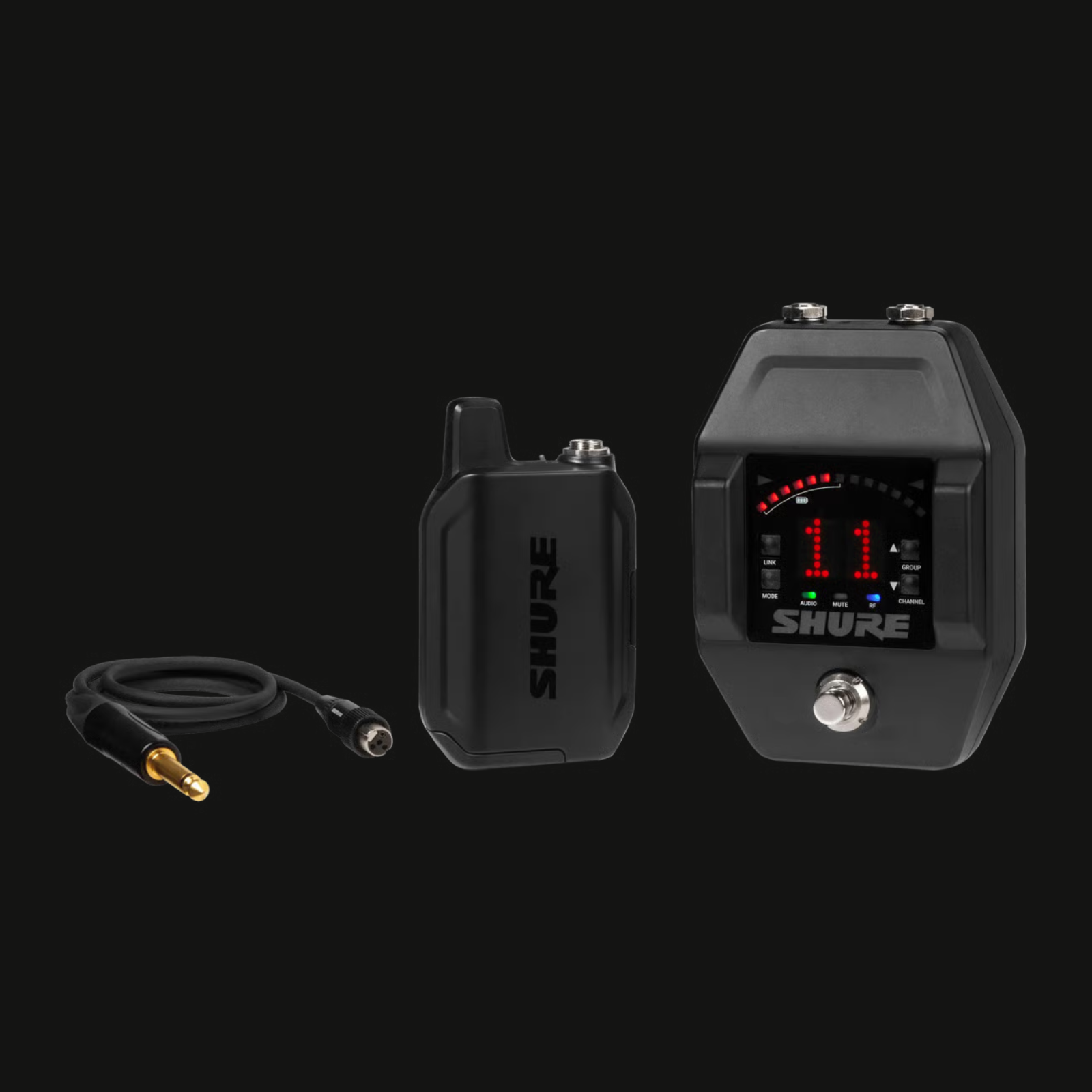

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack with SB904 rechargeable battery, and the GLXD6+ Guitar Pedal w/ tuner. Go wireless without compromising your tone or complicating your rig.

Highlights

• New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz.
• Rugged metal chassis design that can be completely integrated into your pedalboard.
• GLXD6+ Guitar Pedal Receiver is compatible with 9V power supply in Pedalboards (minimum current: 400mA).
• ​Transmitter battery life monitoring via highly visible LED segment display.
• Included Tuner with adjustable mode (Strobe / Needle) and selectable reference pitch (432 – 447 Hz).
• Included SB904 rechargeable battery delivers up to 12 hours of runtime.
• New ¼" true bypass input allows you to switch between two instruments (one wired and one wireless guitar/bass) during live performance by toggling the push button on the pedal receiver. Integrated guitar input also enables easy transition from practice to live performance.
• Output ¼" connector for easy daisy-chain connection with other pedals.

Specifications

• Configuration: Complete System

• System: Simultaneous Channels: Up to 11 channels

• System: Analog/Digital: Digital

• System: Frequency Range: 2.4 GHz, 5.8 GHz

• System: Operating Range: Up to 200 ft. Line-of-sight

• System: Channel Selection: Auto/Manual

• System: Frequency Response: 20Hz-20kHz

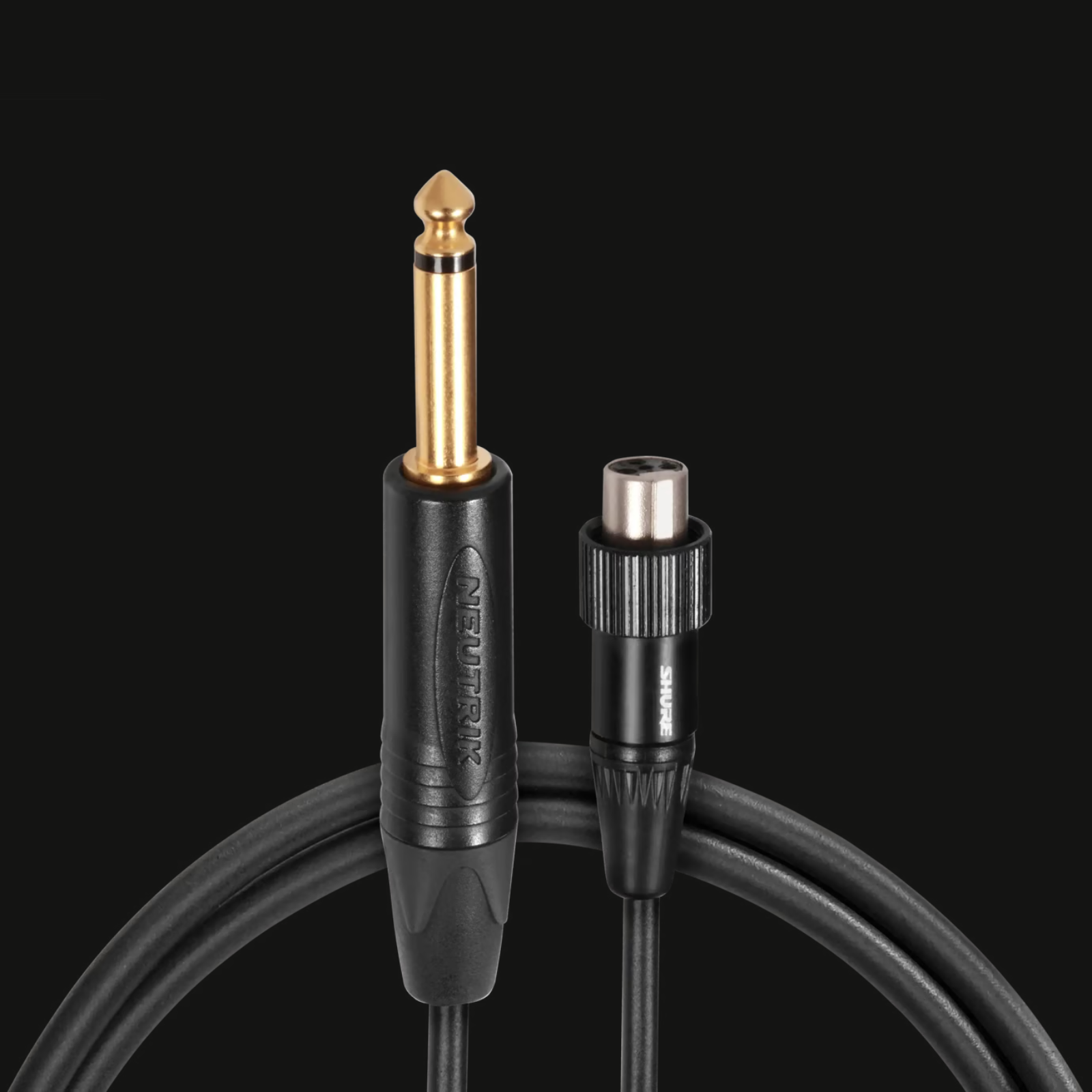

• Instrument Cable: Connector 1: 1/4"

• Instrument Cable: Connector 2: TA4F

• Transmitter: Form Factor: Bodypack

• Transmitter: Dynamic Range: 120dB (A weighted)

• Transmitter: Battery Type: 3.7V Rechargeable Lithium-Ion

• Transmitter: Battery Life: Up to 12 hours

• Transmitter: Connector: 1 x TA4M

• Transmitter: Dimensions: 4.5" (h) x 2.6" (w) x 1.1" (d)

• Transmitter: Weight: 0.33 lbs.

• Microphone: Color: Black

• Microphone: Connector: TA4F

• Receiver: Antenna Type: Fixed

• Receiver: Front Panel Display: Yes

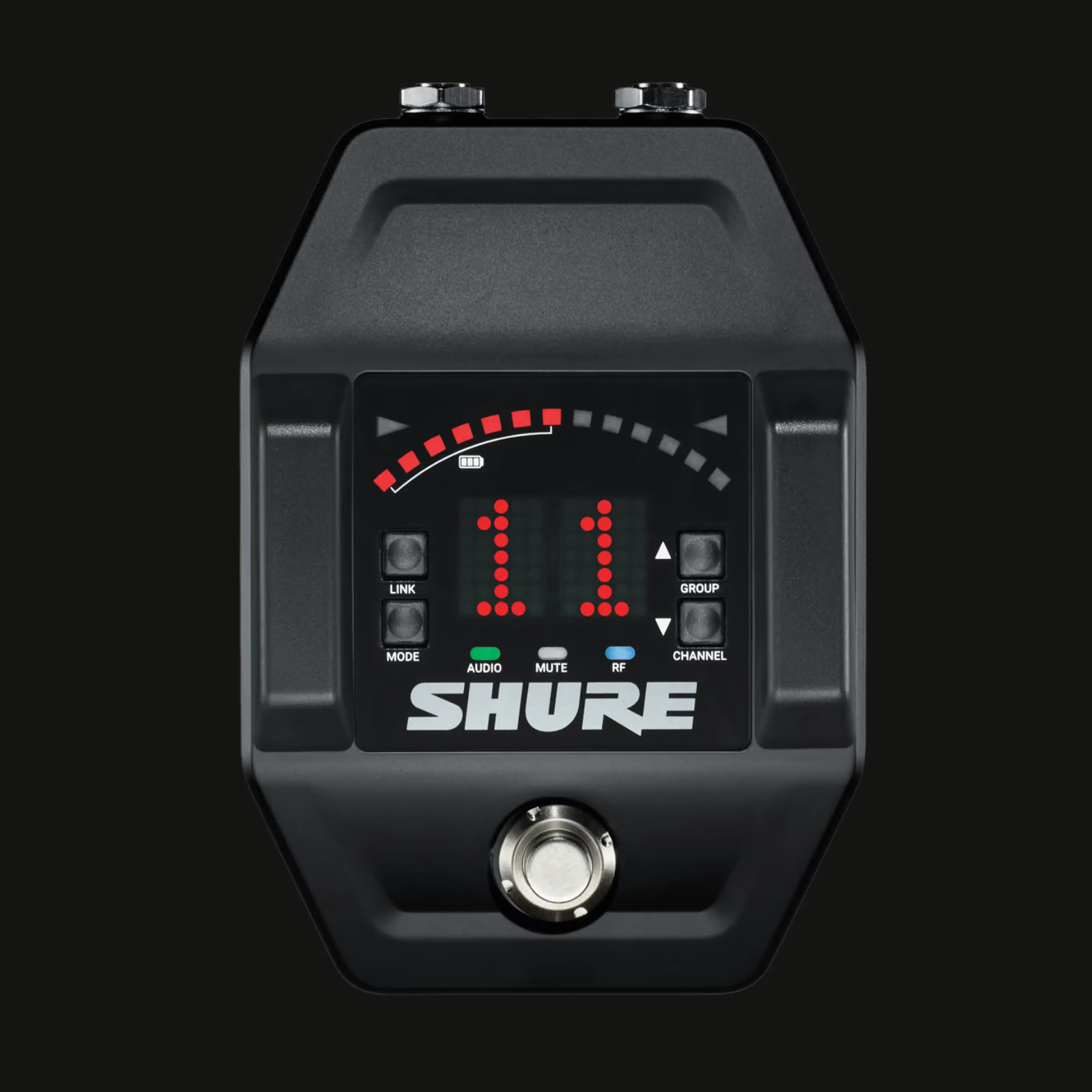

• Receiver: Type: Pedal

• Receiver: Inputs: 1 x 1/4" (tuner/true bypass)

• Receiver: Outputs: 1 x 1/4"

• Receiver: Power Source: 12V DC adapter (included)

• Receiver: Dimensions: 1.89" (h) x 3.7" (w) x 5.4" (d)

• Receiver: Weight: 1.23 lbs.

• Manufacturer Part Number: GLXD16+-Z3
