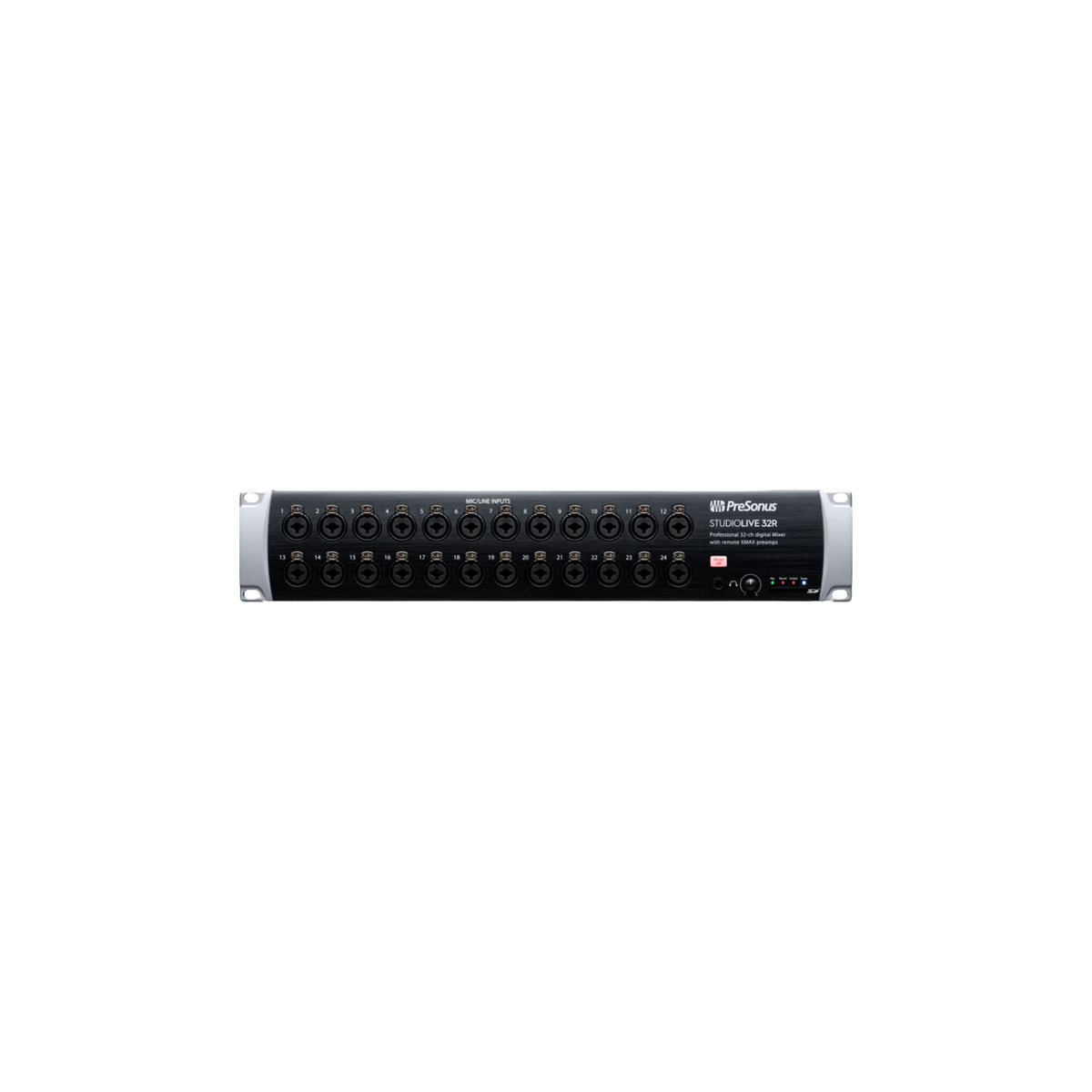

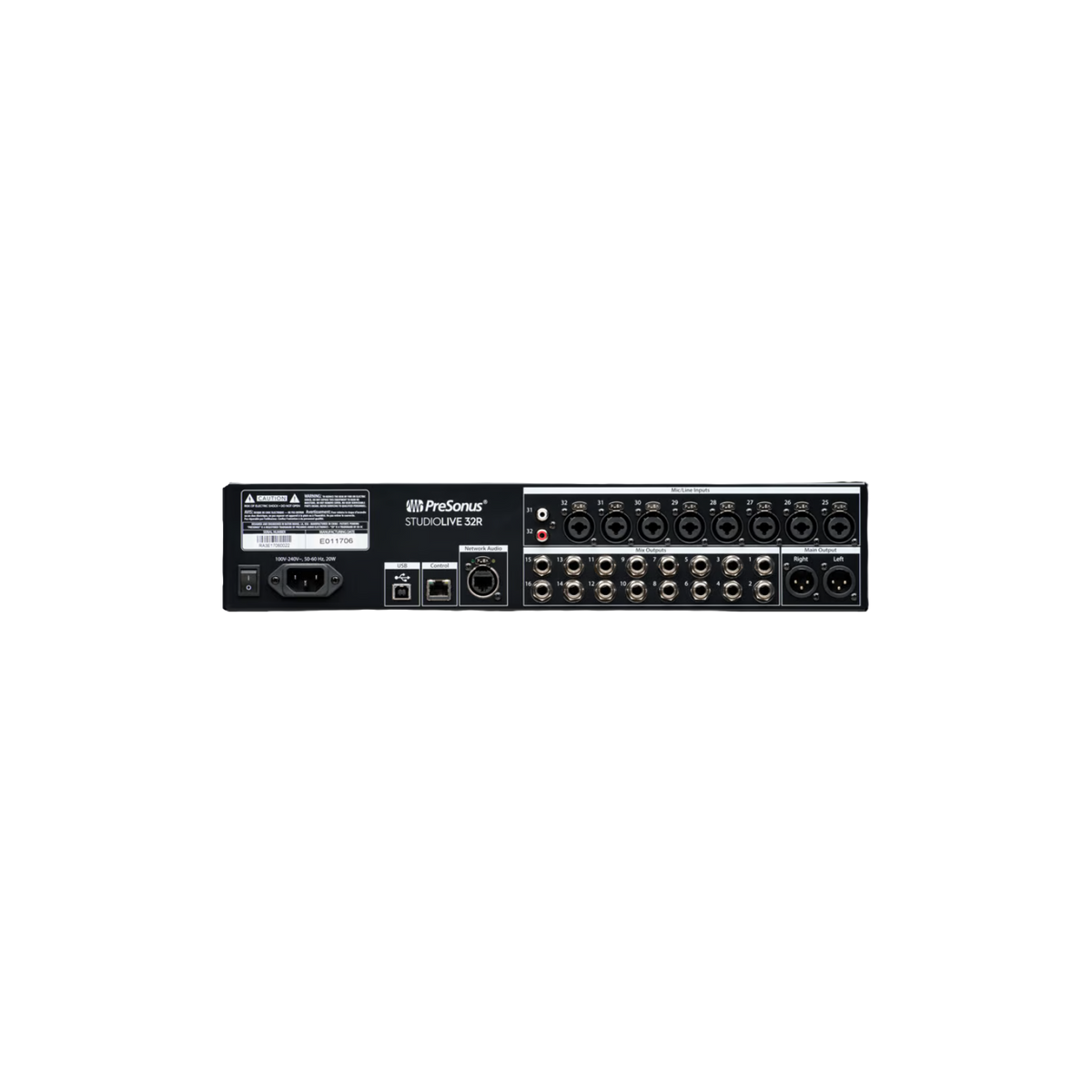

The StudioLive® 32R digital mixer is four audio tools in two compact rack spaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. And of course, like other StudioLive Series III digital mixers, the StudioLive 32R has a continuously bidirectional 128-channel (64x64) USB audio interface onboard. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
Inside the StudioLive 32R, you’ll find the dual-core PreSonus® FLEX DSP Engine powering 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders but with the benefit of allowing you to mix front-of-house from anywhere in the venue.
Professional venues and touring acts know that having a dedicated monitor mixer is the best way to ensure musicians can hear themselves clearly on stage. When connected to a StudioLive Series III console mixer, the StudioLive 32R provides remote inputs and main outputs while simultaneously retaining full control over its FlexMixes, so you can create up to 16 monitor mixes complete with independent gate, compression, EQ, and effects on every channel and bus.
Below are the minimum computer-system requirements for StudioLive 32R.
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.
Click here for Studio One’s system requirements.
Mi crophone Preamplifier |
|
---|---|
Input Type |
Combo locking XLR mic-¼” TRS line |
Frequency Response to Main Output (at unity gain) |
20-20 kHz, ±0.5 dBu |
Input Impedance |
1 kΩ |
THD to Main Output |
<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd |
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) |
94 dB |
Common Mode Rejection Ratio (1 kHz at unity gain) |
65 dB |
Gain Control Range (±1 dB) |
0 dB to +60 dB |
Maximum Input Level (unity gain) |
+12 dBu |
Phantom Power (±2 VDC) |
48 VDC, switchable per channel |
Unbalanced Inputs (Ch. 31-32) |
|
---|---|
Type |
RCA Female, unbalanced (stereo pair) |
Maximum Input Level |
+12 dBu, ±0.5 dBu |
Main Outputs |
|
---|---|
Type |
XLR Male, balanced |
Maximum Output Level |
+24 dBu, ±0.5 dBu |
Output Impedance |
100Ω |
Mix Outputs |
|
---|---|
Type |
¼” TRS Female, balanced |
Maximum Output Level |
+18 dBu, ±0.5 dBu |
Output Impedance |
100Ω |
Headphone Output |
|
---|---|
Type |
¼” TRS Female, active stereo |
Maximum Output |
100 mW/ch. @ 60Ω load |
Frequency Response |
20 Hz – 20 kHz (± 0.5 dB) |
THD+N |
0.01%, 1 kHz, max gain, 20 Hz BW, unwtd |
S/N Ratio |
96 dB, 1 kHz, max gain, 20 Hz BW, unwtd |
System Crosstalk |
|
---|---|
Input to Output |
-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
Adjacent Channels |
-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) |
Digital Audio and Control |
|
---|---|
ADC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
DAC Dynamic Range |
115 dB (A-wtd, 48 kHz) |
USB Recording Port |
USB 2.0, Type-B |
Network Control Port |
RJ-45 |
AVB Audio Network Port |
Locking XLR Ethernet |
Internal Processing |
32-bit, floating point |
Sampling Rate |
48 kHz, 44.1 kHz |
A/D/A Bit Depth |
24 |
Reference Level for 0 dBFS |
+18 dBu |
Total System Latency |
1.9 ms (local routing, analog in-analog out, all processing active) |
Clock |
|
---|---|
Jitter |
<20 ps RMS (20 Hz - 20 kHz) |
Jitter Attenuation |
>60 dB (1 ns in, 1 ps out) |
Power / Environmental |
|
---|---|
Connector |
IEC |
Input-Voltage Range |
90 to 230 VAC (±10%) |
Power Requirements (continuous) |
85W |
Recommended Ambient Operating Temperature |
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit |
Physical |
|
---|---|
Height |
3.5” (90 mm) |
Width |
19” (483 mm) |
Depth |
12” (305 mm) |
Weight |
11.2 lbs. (5 kg) |
