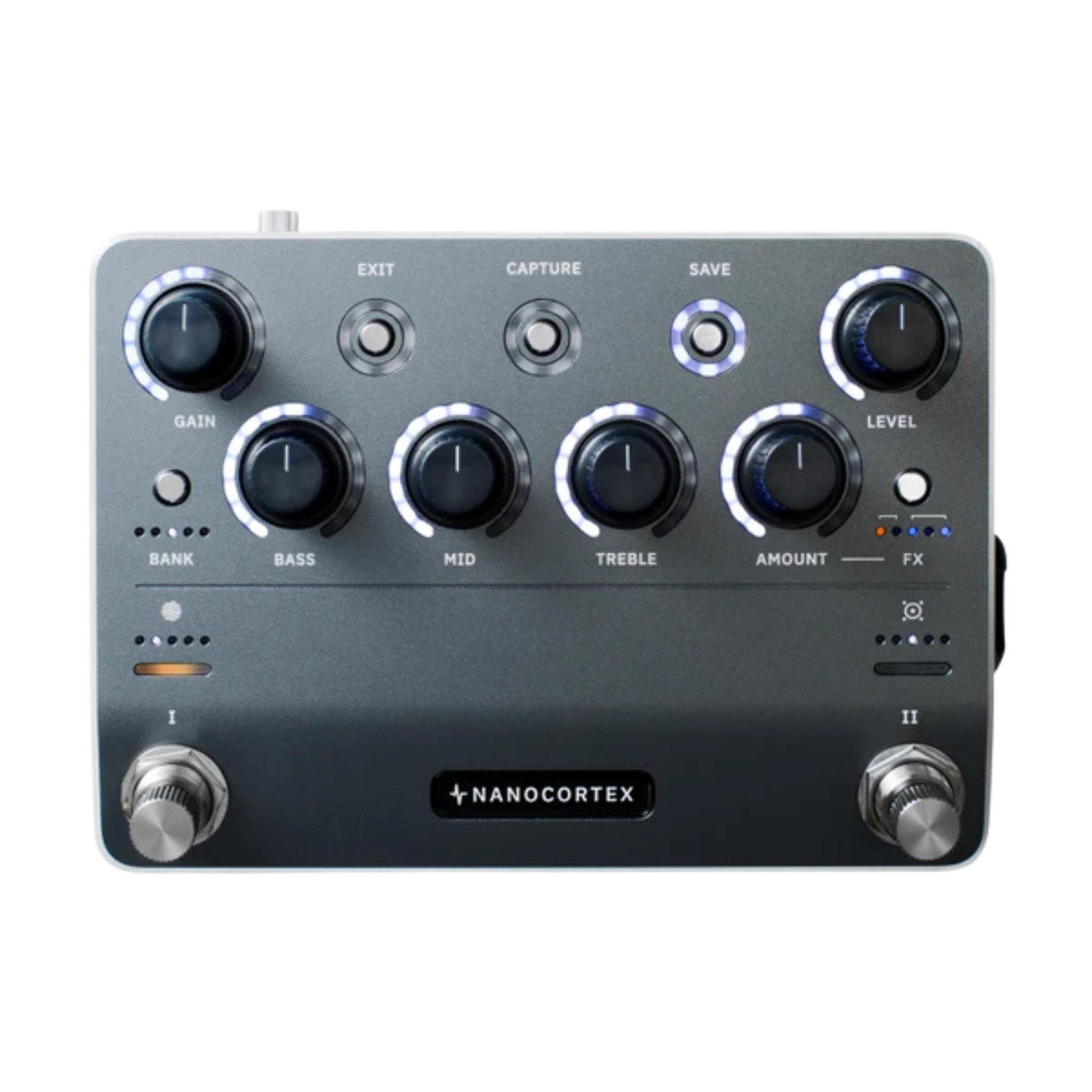

Neural DSP Nano Cortex

Neural DSP Nano Cortex

Step into the future of guitar and bass tone with the Neural DSP Nano Cortex, a groundbreaking, ultra-compact digital amp, cabinet, and effects processor. This pedal is a testament to Neural DSP's commitment to delivering studio-grade sound in an incredibly portable package. The heart of the Nano Cortex lies in its revolutionary Neural Capture technology, allowing you to meticulously clone the unique sonic fingerprint of your favorite amplifiers, cabinets, and even drive pedals with astonishing accuracy. Experience the authentic feel and responsive dynamics of your cherished gear, all perfectly replicated within this small but mighty device.

Crafted with a robust, tour-ready build, the Nano Cortex is designed to withstand the demands of any performance setting, from the stage to the studio. Its intuitive controls, combined with the seamless integration of the Cortex Cloud app, provide an unparalleled user experience, whether you're a beginner or a seasoned pro. The Nano Cortex isn't just about recreating tones; it's about giving you the freedom to explore an expansive library of pre-loaded captures and effects, or to create your own signature sounds. This pedal is an all-in-one solution that ensures your perfect tone is always within reach.

Highlights

• Neural Capture Technology: Create highly accurate digital replicas of your amps, cabs, and drive pedals.
• Ultra-Compact Design: Fits easily on any pedalboard or in a gig bag for ultimate portability.
• Comprehensive Signal Chain: Access a wide range of pre and post-effects, including a built-in input gate.
• Versatile Connectivity: Functions as a low-latency USB audio interface and offers Bluetooth for app control.
• Extensive Tone Library: Comes with pre-loaded captures and access to thousands more via Cortex Cloud.

Specifications

• Processor: SHARC DSP architecture
• Dimensions: Width: 14.4 cm (5.6 inches), Depth: 10.3 cm (4.0 inches), Height: 6.2 cm (2.4 inches)
• Weight: 0.62 kg (1.36 lbs)

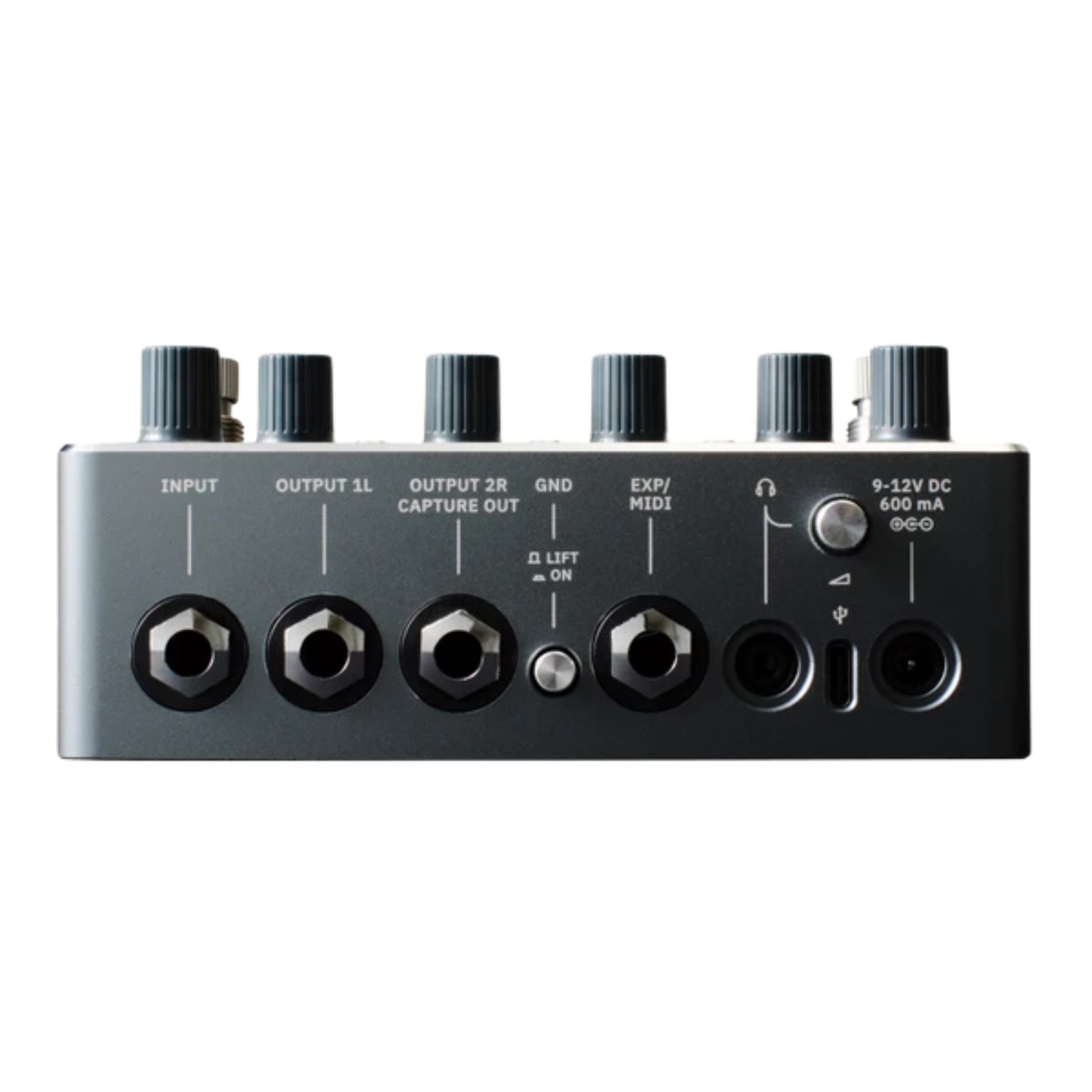

• Inputs:
  • Instrument Input: 1/4" TRS-F

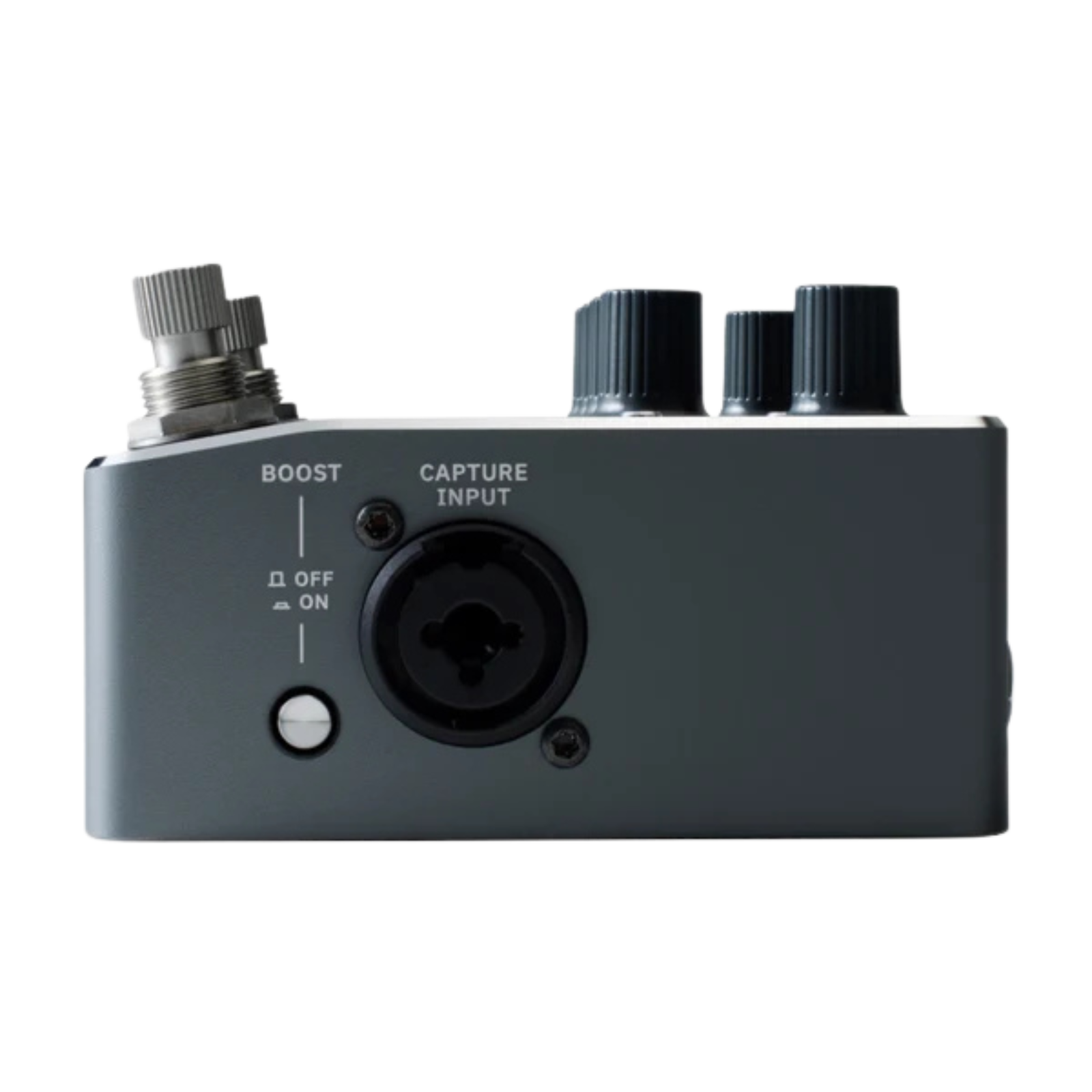

  • Combo Capture Input: XLR-F + 1/4" TRS-F (with +26dB boost switch)
• Outputs:
  • Main Outputs: (2) 1/4" TRS-F
  • Headphone Output: 3.5mm TRS-F
• USB Audio: USB Audio Class 2.0, 7 channels (4 in / 3 out), 48kHz fixed audio clock
• Power: 9-12V DC 600mA (center negative, power supply not included) / USB-C 5V, 1.5A or higher
• Preset Slots: 64
• Neural Capture Slots: 256
• IR Slots: 256 (with 10 premium-quality IRs pre-loaded)
• Effects: Over 50 effects and utilities, including compressors, overdrives, modulation, delays, reverbs, and EQs.
• Connectivity: Bluetooth, TRS MIDI input
