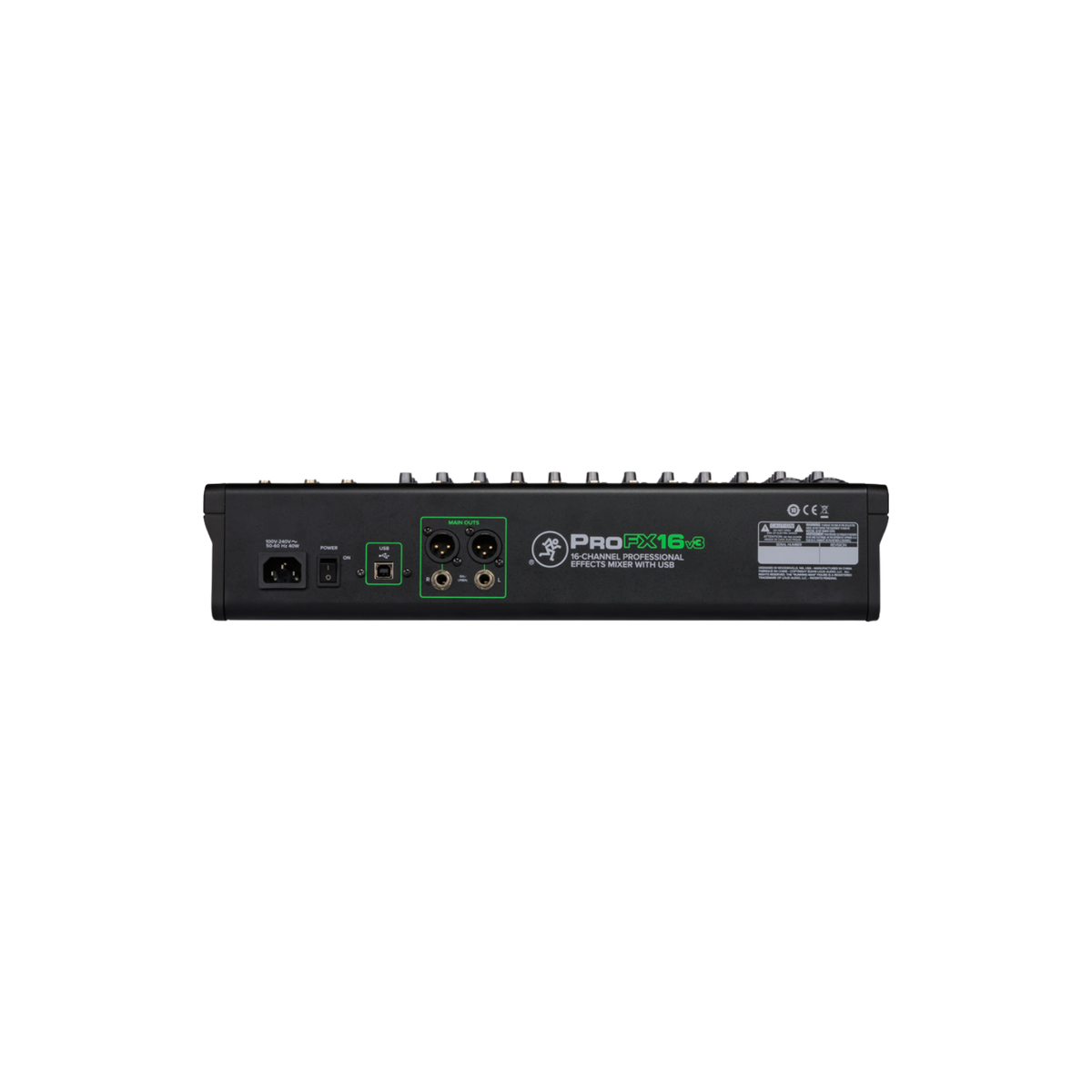

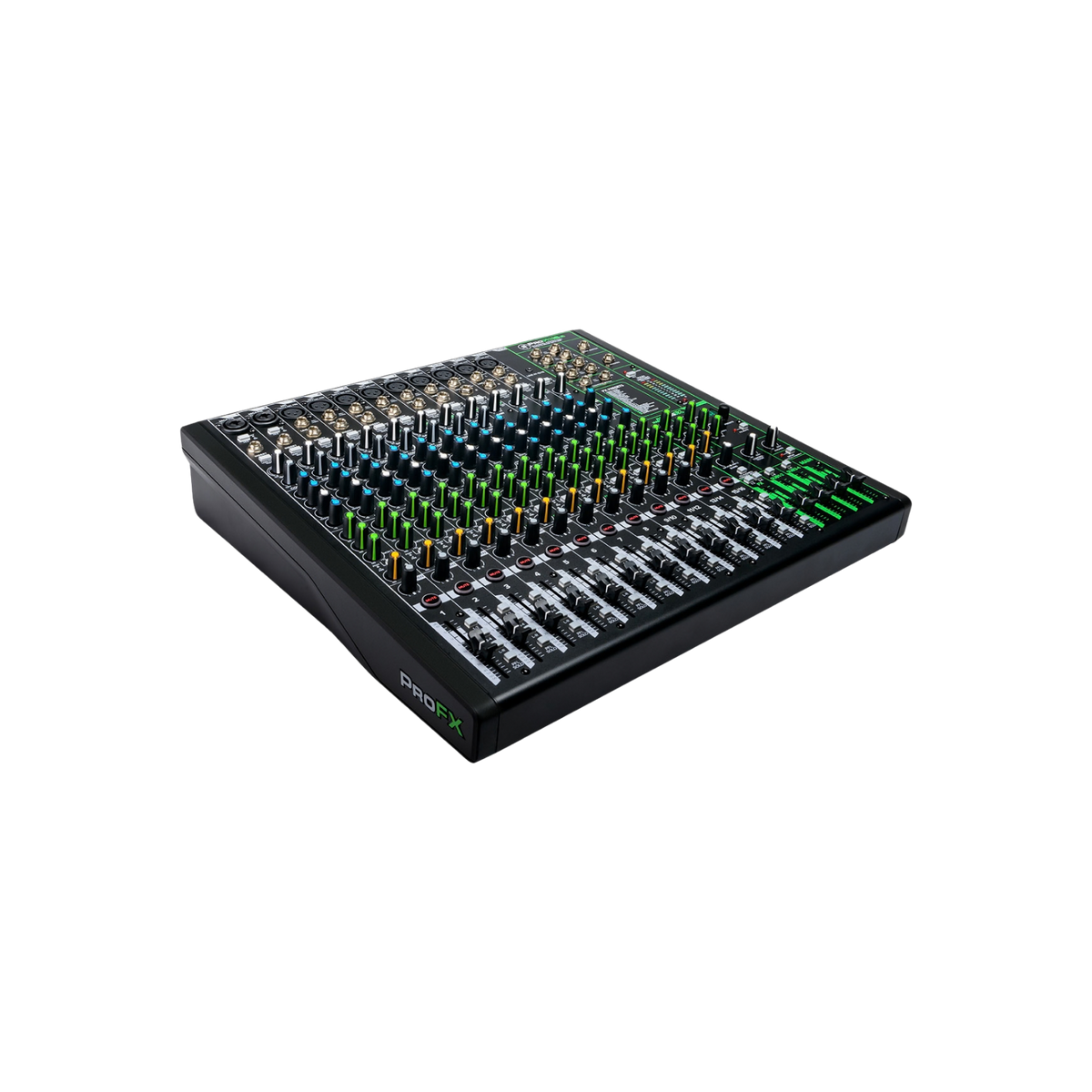

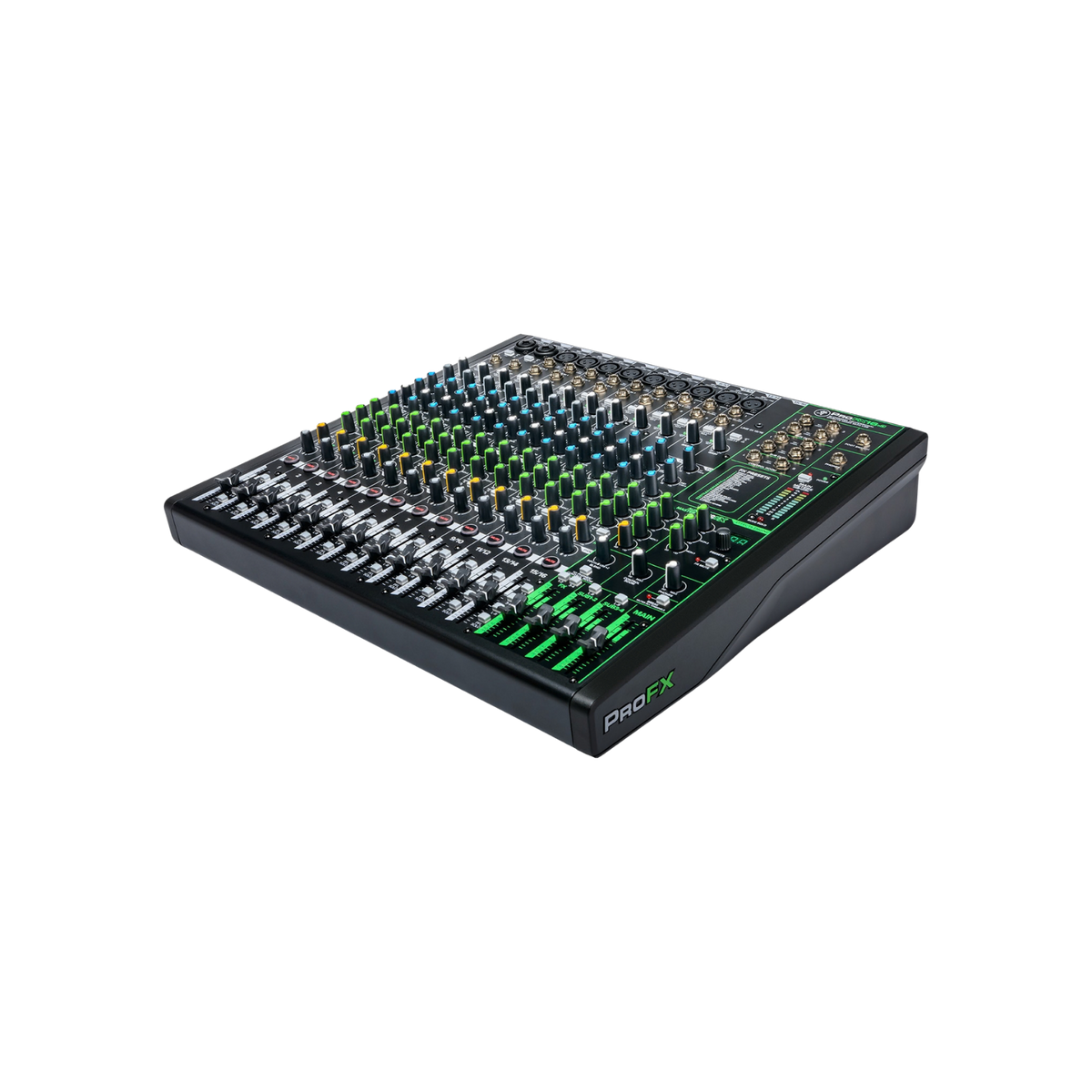

Mackie PROFX16V3 16-Channel Professional FX Analog Mixer with USB

Mackie PROFX16V3 16-Channel Professional FX Analog Mixer with USB

Power your studio or live rig with award-winning Onyx preamps and a high-resolution GigFX engine. The Mackie ProFX16v3 gives you ultimate control, versatility and flexibility for multiple applications that range from studio recording to live sound reinforcement. And with the included Waveform™ OEM software bundle, you’ll have the ultimate plugin collection for fine-tuning your sound.

Highlights

• High-resolution recording via USB

• Award-Winning Onyx Preamps for Pristine Audio

• Powerful FX Engine with Customizable Presets

• 48-volt Phantom Power

• Headphone Output with Independent Volume Control

• Dedicated Control Room Output

• Rugged Design

Specifications

• Type: Analog Mixer with USB Interface
• Channels: 16 (8 x mono, 4 x stereo)
• Computer Connectivity: USB (2 x 4)
• A/D Resolution: 24-bit/192kHz
• Faders: 16 x 60mm Faders
• Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 9 x XLR (mic)
• Phantom Power: Yes
• Inputs - Line: 6 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
• Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
• Outputs - Other: 4 x 1/4" (subgroup out)
• Aux Sends: 1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
• Send/Return I/O: 1 x 1/4" (FX send), 3 x 1/4" (monitor send)
• Busses/Groups: 2 x Subgroup
• Inserts: 8 x 1/4" (channel)
• Headphones: 1 x 1/4"
• USB: 1 x Type B
• Other I/O: 1 x 1/4" (footswitch)
• EQ Bands: 3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
• Signal Processing: 8 x Channel Compressors
• Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
• Software: Waveform OEM DAW, FX Plug-in Collection
• Power Source: Standard IEC AC cable
• Height: 4.4"
• Width: 17.7"
• Depth: 17.1"
• Weight: 15.2 lbs.
• Manufacturer Part Number: PROFX16V3
