Mackie 22-Channel ProFX22v3

Name: Mackie 22-Channel ProFX22v3
Brand: Mackie
SKU: PROFX22V3
Price: 799.99 USD
Availability: InStock

SKU: PROFX22V3

$799.99

Financing options available:

In stock

Local pickup available

Mackie 22-Channel ProFX22v3

Springfield, MO

Pickup currently unavailable

1560 East Raynell Place
Springfield MO 65804
United States

Questions? Ask Our Gear Expert

Real musicians. Real answers. No nonsense. Let’s get your rig dialed in!

(417) 882-7006 • Schedule a chat

Description

Mackie 22-Channel ProFX22v3

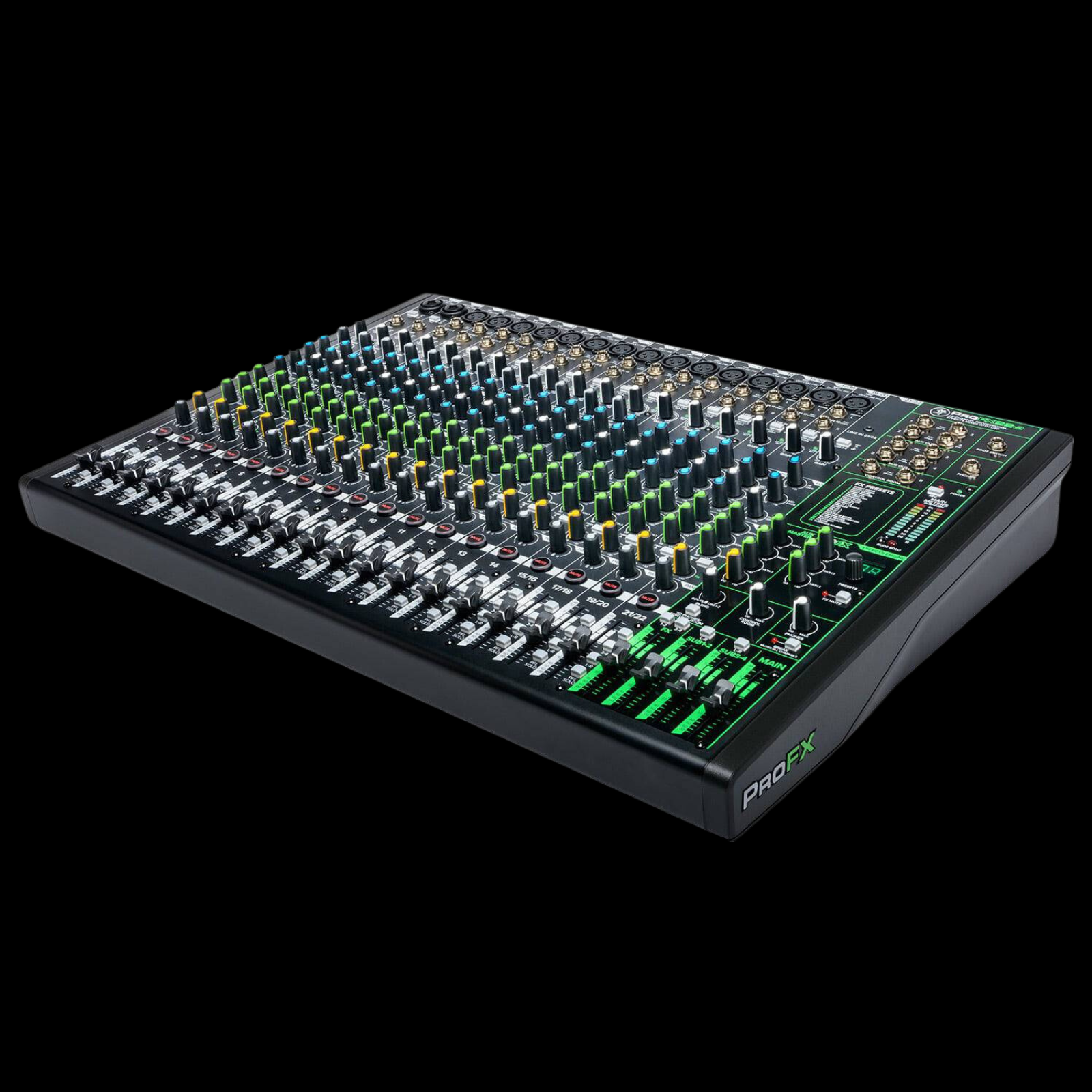

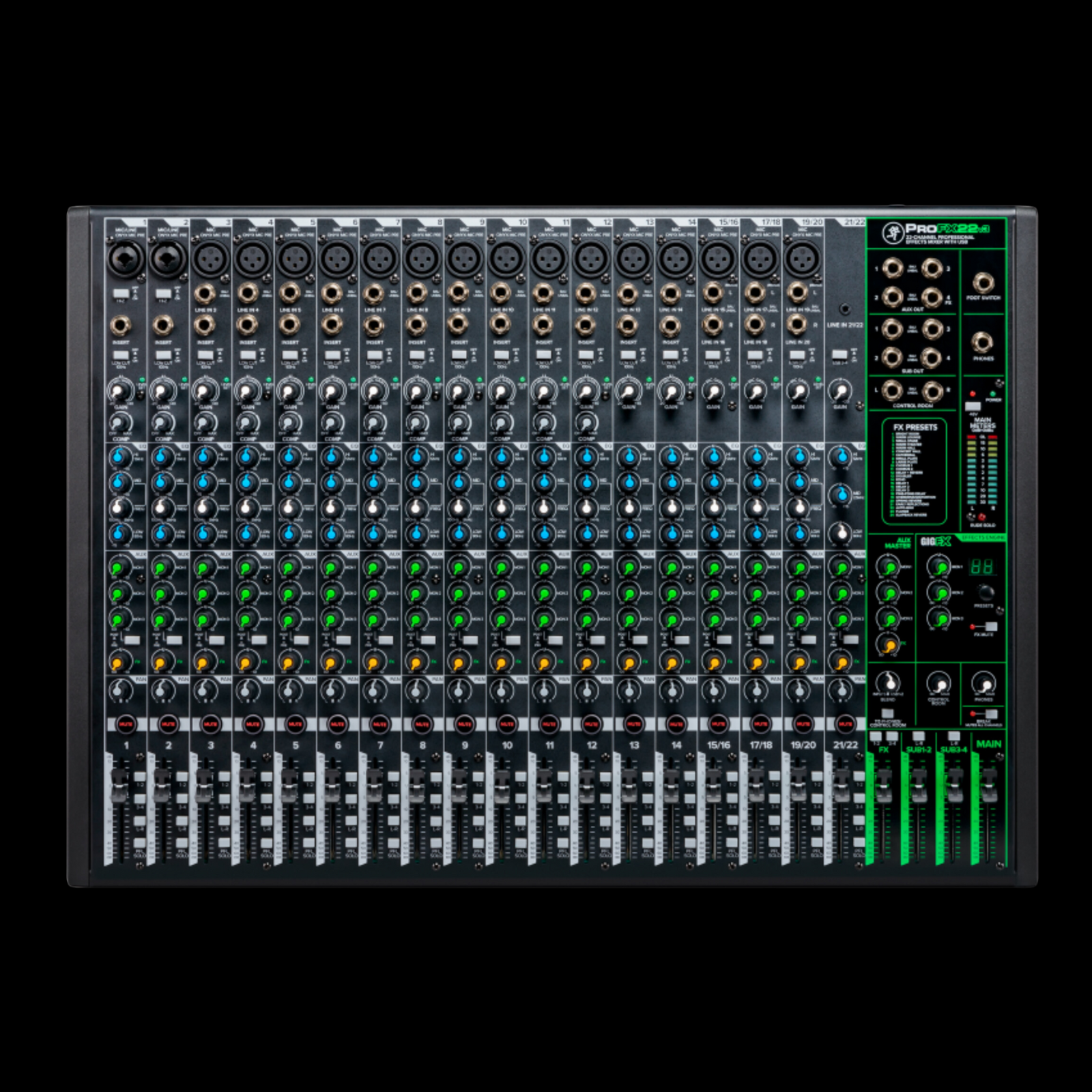

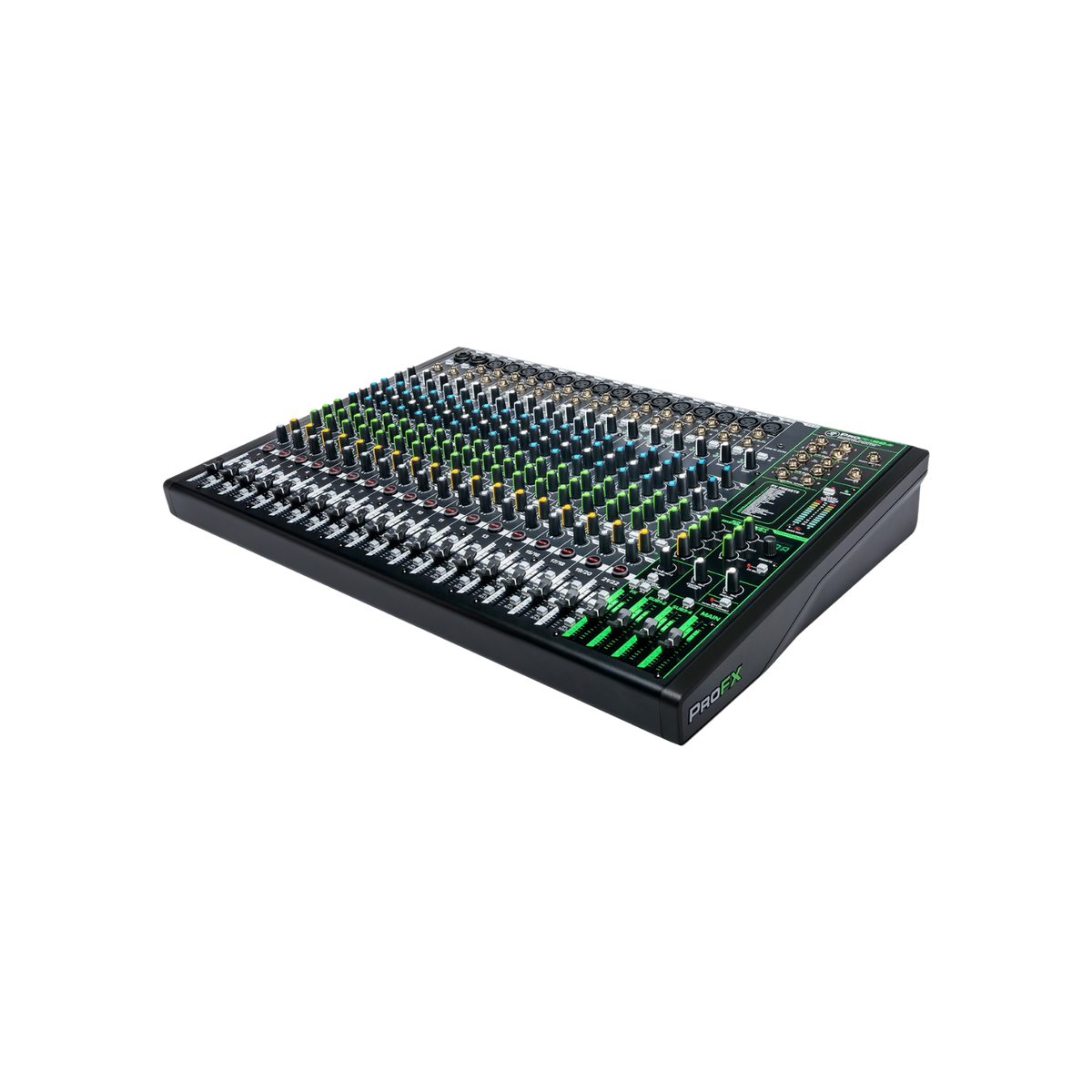

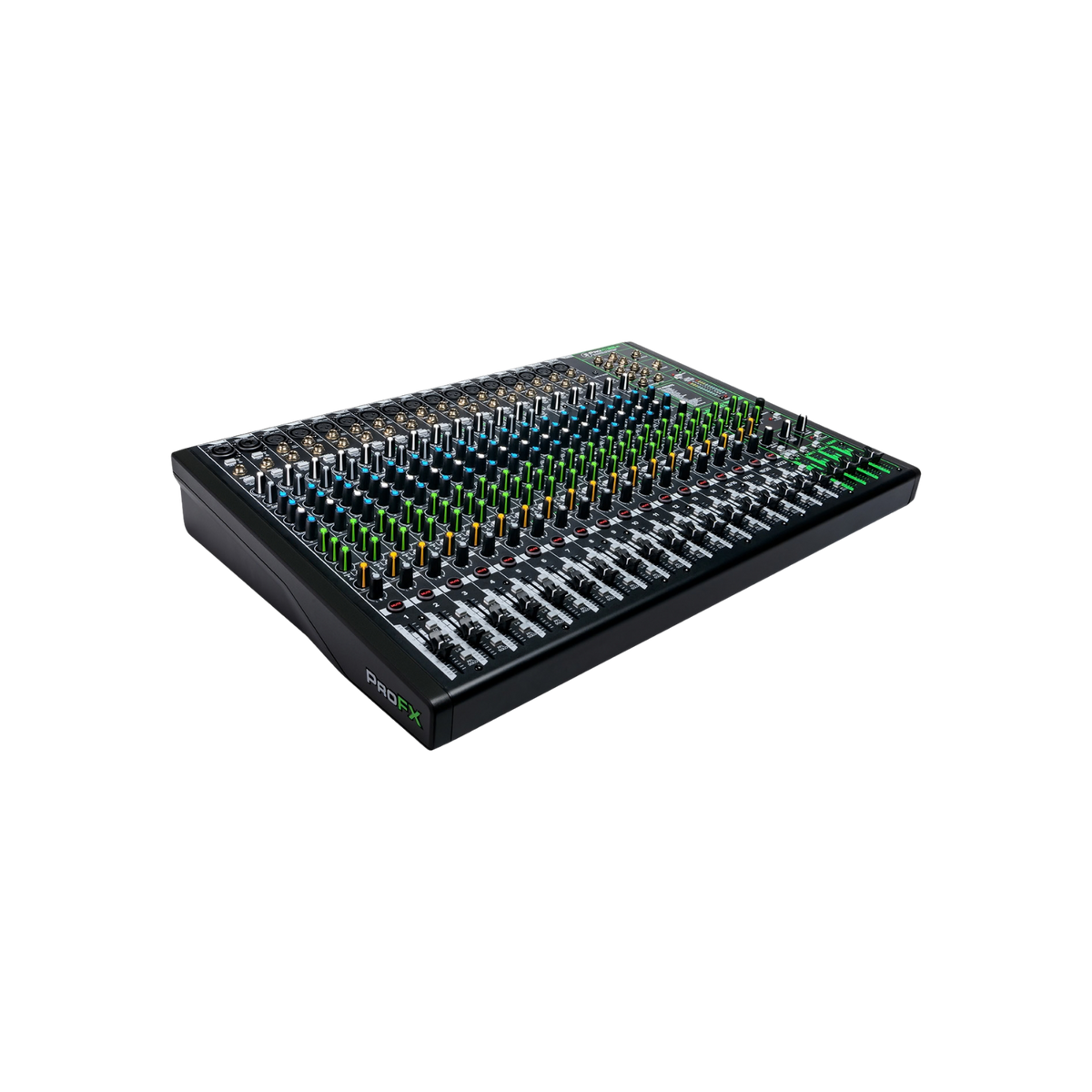

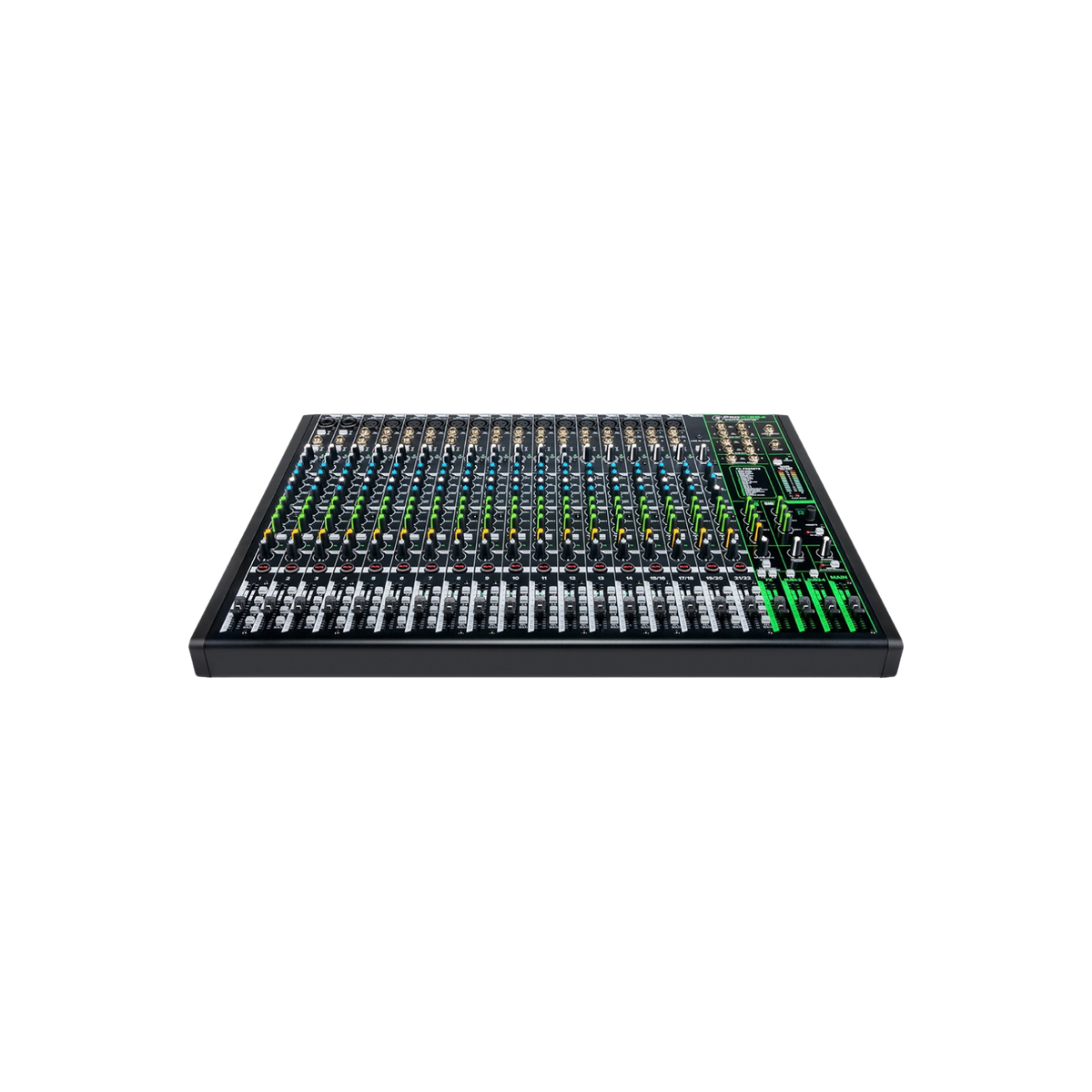

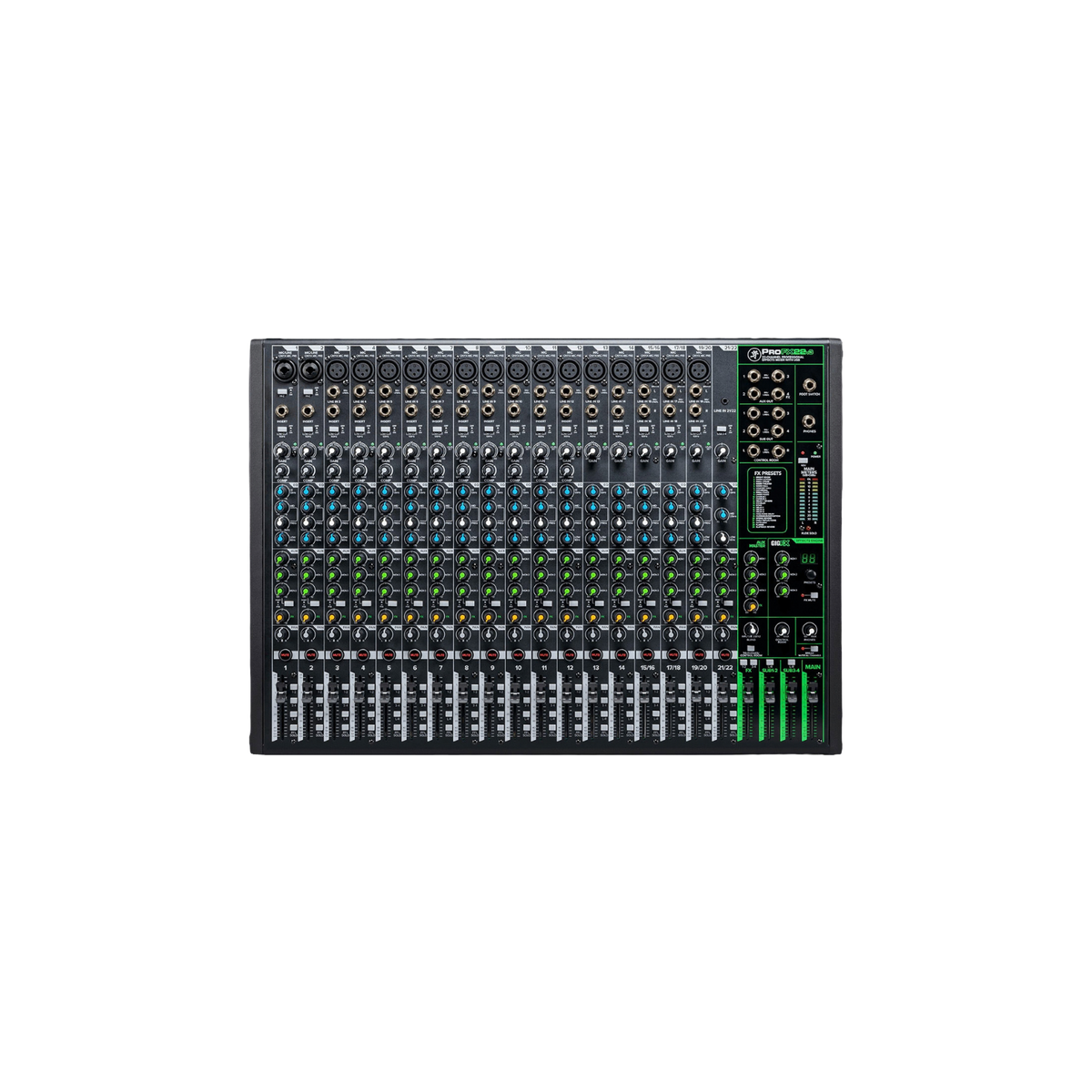

Step up your live sound and studio setup with the Mackie ProFX22v3 22-Channel USB Mixer. Designed to deliver top-tier sound quality, incredible versatility, and rock-solid durability, this mixer is a powerhouse for mixing bands, running live sound in houses of worship, or tracking multi-instrument studio sessions. Equipped with Mackie's legendary Onyx mic preamps providing up to 60dB of headroom, you'll experience crystal-clear audio with ultra-low noise every time.

Take complete control over your tone using the built-in GigFX engine, featuring 24 high-definition effects ranging from lush reverbs to rich delays. The integrated 2x4 USB recording interface lets you capture pristine 24-bit/192kHz tracks directly to your DAW with zero-latency monitoring. Complete with single-knob channel compression, flexible routing options, and Mackie's iconic "Built-Like-A-Tank" construction, the ProFX22v3 provides everything you need to bring studio-grade audio performance to any venue or studio.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!

Specs

Type: Analog Mixer with USB Interface

Channels: 22 (14 x mono, 4 x stereo)

Computer Connectivity: USB (2 x 4)

A/D Resolution: 24-bit/192kHz

Faders: 22 x 60mm Faders

Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 15 x XLR (mic)

Phantom Power: Yes

Inputs - Line: 12 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)

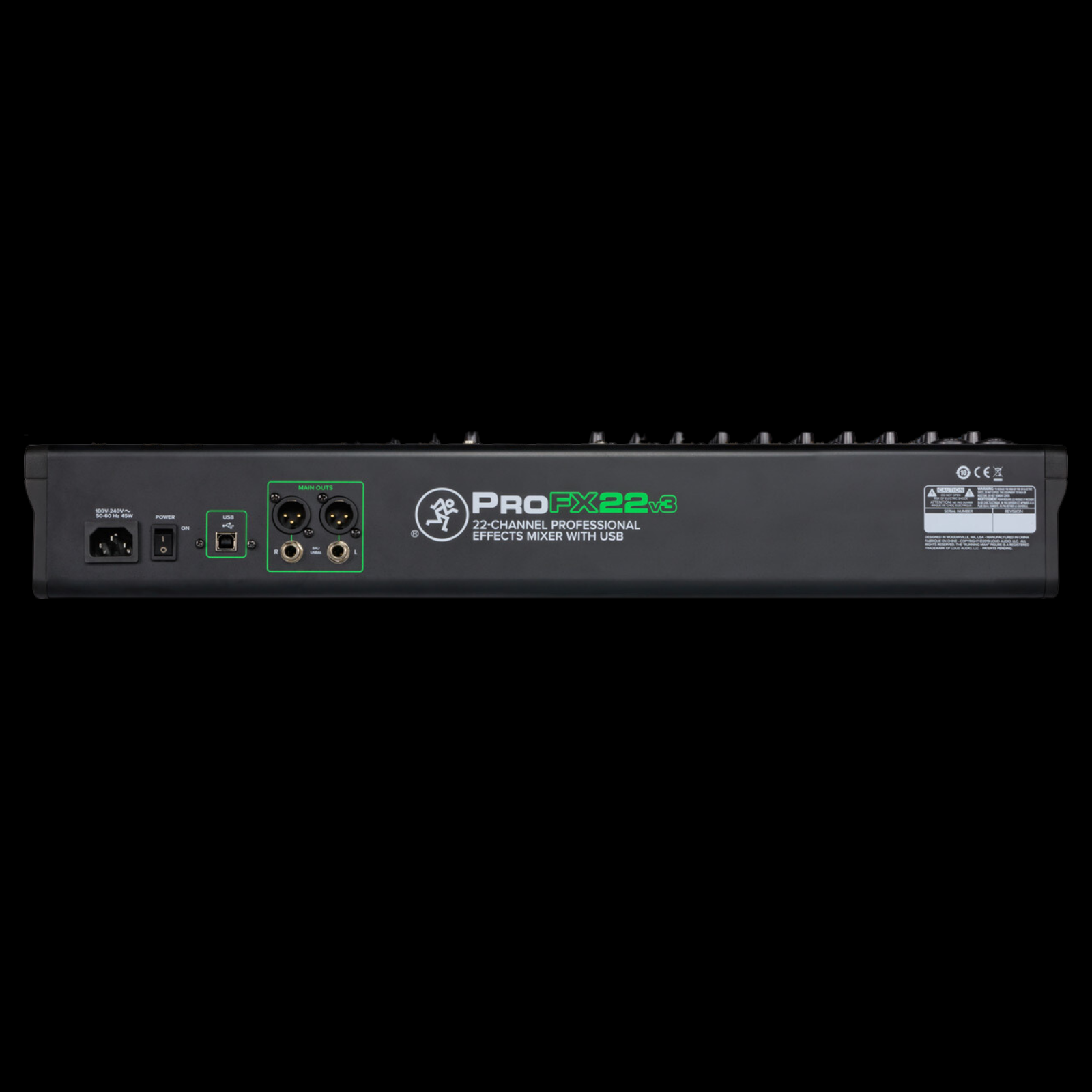

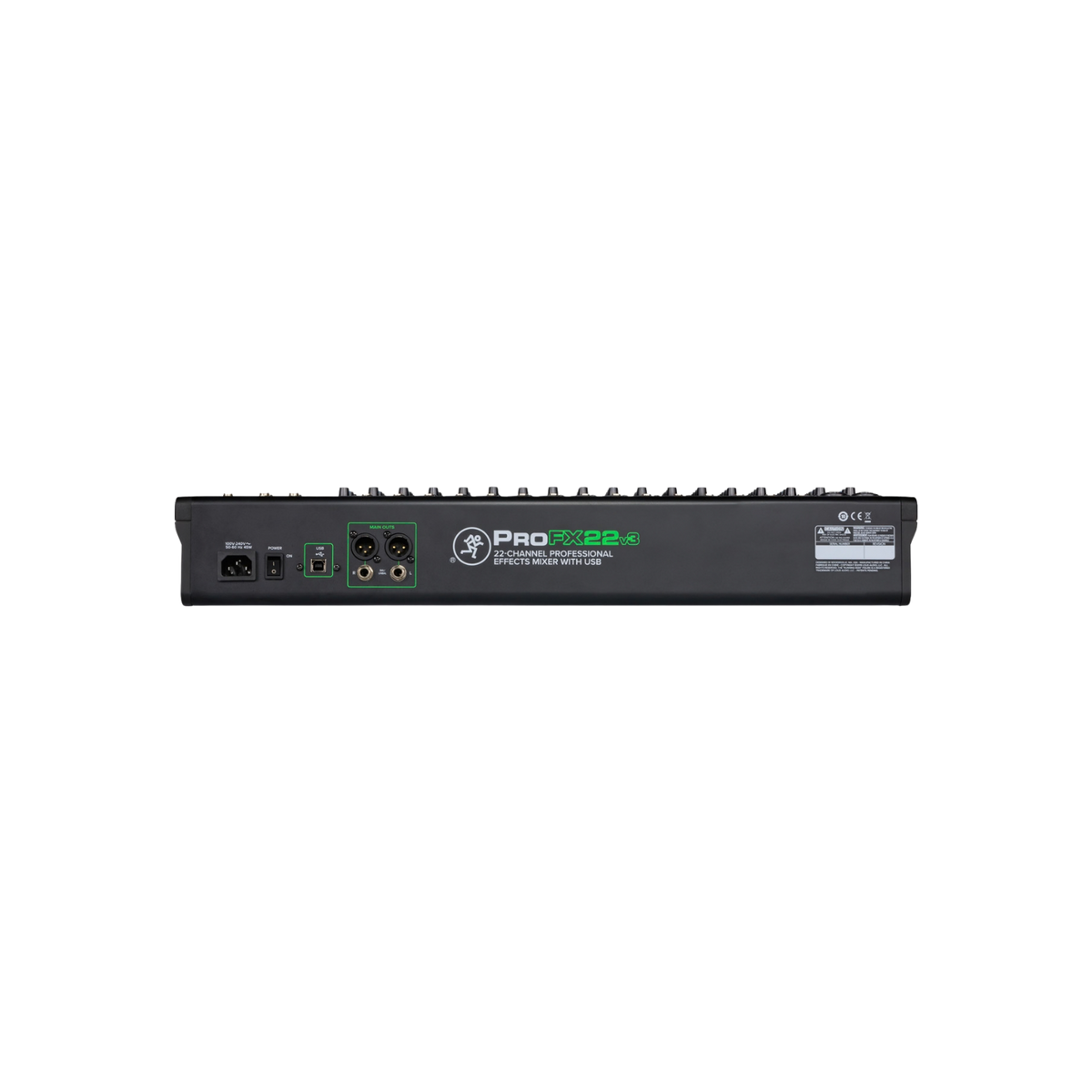

Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)

Outputs - Other: 4 x 1/4" (sub group out)

Aux Sends: 1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)

Send/Return I/O: 1 x 1/4" (FX send), 3 x 1/4" (monitor send)

Busses/Groups: 2 x Sub Group

Inserts: 14 x 1/4" (channel)

Headphones: 1 x 1/4"

USB: 1 x Type B

Other I/O: 1 x 1/4" (footswitch)

EQ Bands: 3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter

Signal Processing: 12 x Channel Compressors

Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah

Software: Waveform OEM DAW, FX Plug-in Collection

Power Source: Standard IEC AC cable

Height: 4.4"

Width: 17.1"

Depth: 24.1"

Weight: 19.8 lbs.

Videos

Highlights

Award-Winning Onyx Preamps: 17 mic preamps deliver pristine clarity with up to 60dB of gain and ultra-low noise.

GigFX Effects Engine: Elevate your mix with 24 high-resolution effects, including reverbs, delays, choruses, and more.

24-Bit/192kHz USB Recording: High-resolution 2x4 USB interface offers seamless multi-track recording and playback with zero-latency hardware monitoring.

Built-In Channel Compression: Keep your dynamics balanced with simple, single-knob compression controls on key channels.

Rugged & Reliable Construction: Built with Mackie's famous "Built-Like-A-Tank" steel chassis and solid side protection to withstand life on the road.

Mackie 22-Channel ProFX22v3

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
