Luminal Booster Ultra - Darkglass Comes Clean
Introducing the next evolution in clean bass tone: The Luminal Booster Ultra. Our latest creation seamlessly blends the undeniably lavish tone of the Harmonic Booster with a versatile Multiband Compressor, delivering a pristine, controlled signal like never before. Featuring a gain reduction meter for precise monitoring and a 6-band EQ for unparalleled tonal flexibility, your clean sound is now fully under your command. And to top it off, you can load up to 7 custom Impulse Responses via USB, the ultimate tone-shaping power is right at your fingertips.

Highlights

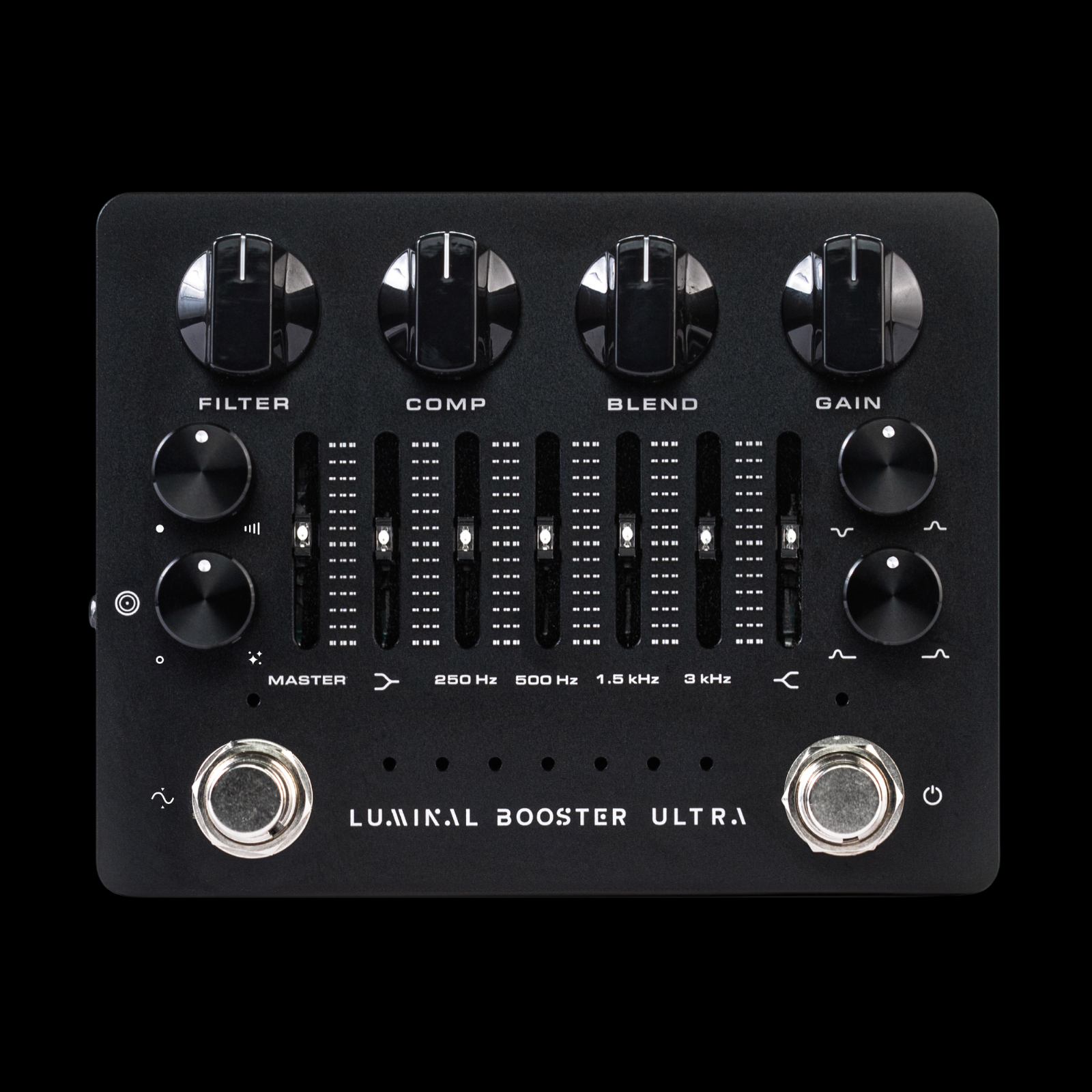

• Top Panel Features

  • Blend: Blends between clean and compressed signal

  • Comp: Adjusts the amount of compression applied

  • Filter: Adjustable lowpass filter for the compressed signal

  • Gain: Adjusts the level of the compressor after the blend control
  • Boost: Flat -20dB to +20dB cut or boost.

  • Character: Allows blending in the perfect amount of the tone-shaping circuitry.

  • Mid gain: +-20dB @ the frequency selected by “Mid Frequency”.

  • Mid Frequency: Mid frequency from 250Hz to 2.5kHz.
• Sliders

  • Master: +-12 dB. Sets the overall volume of the unit.

  • Low shelf: +-12 dB @ 80 Hz.

  • 250 Hz: +-12dB.

  • 500 Hz: +-12dB.

  • 1,5 kHz: +-12dB.

  • 3 kHz: +-12dB.

  • High shelf: +-12 dB @ 5 kHz.

Specifications

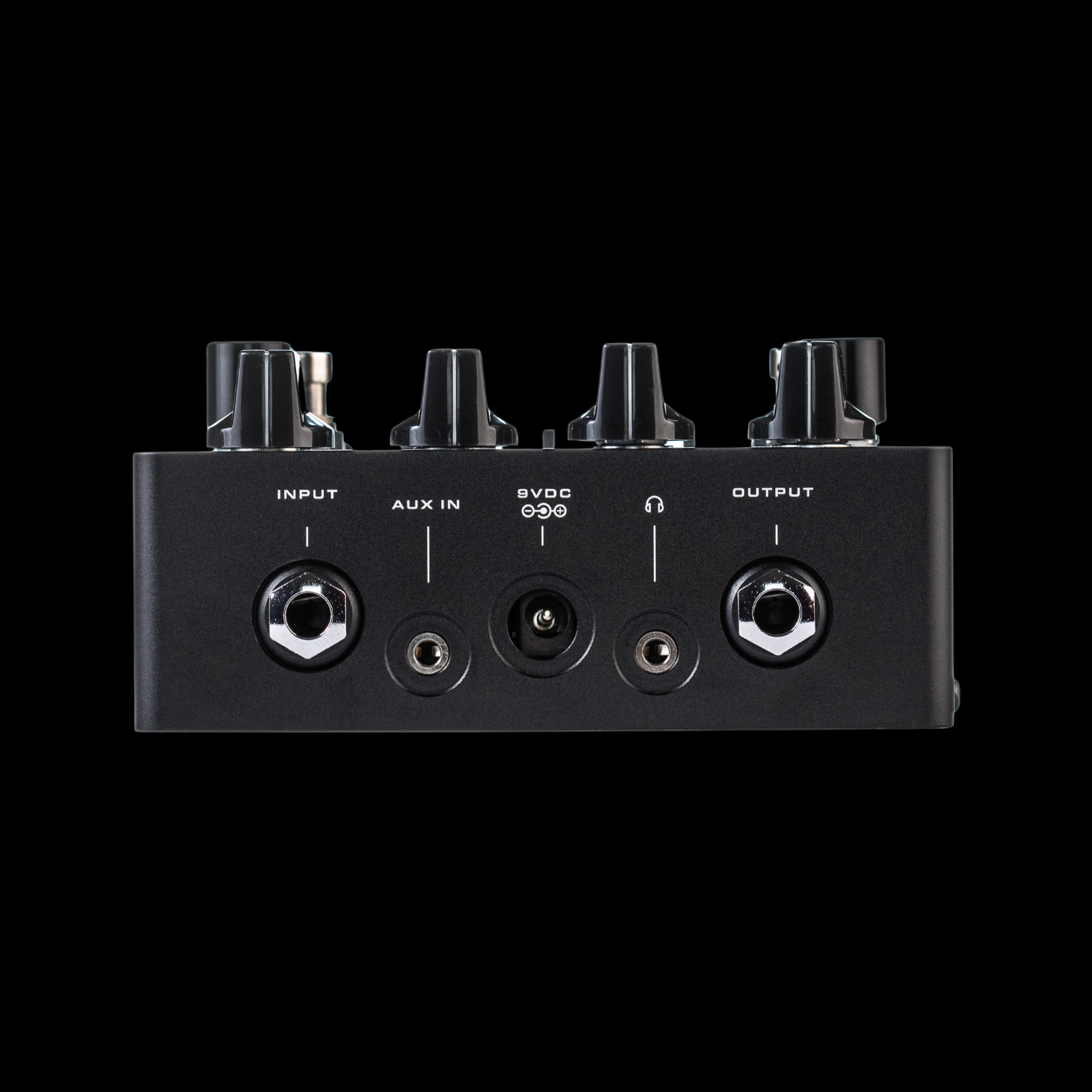

• Input: 1/4" connector for the instrument.

• Aux In: 3.5mm stereo input to practice with backing tracks.

• 9VDC: Center negative, regulated 9VDC only.

• Headphone Output: Internal stereo headphone amplifier capable of driving a minimum load of 16 ohms from the 3.5mm stereo jack.

• Output: 1/4" connector for the amplifier or next effect in the chain.

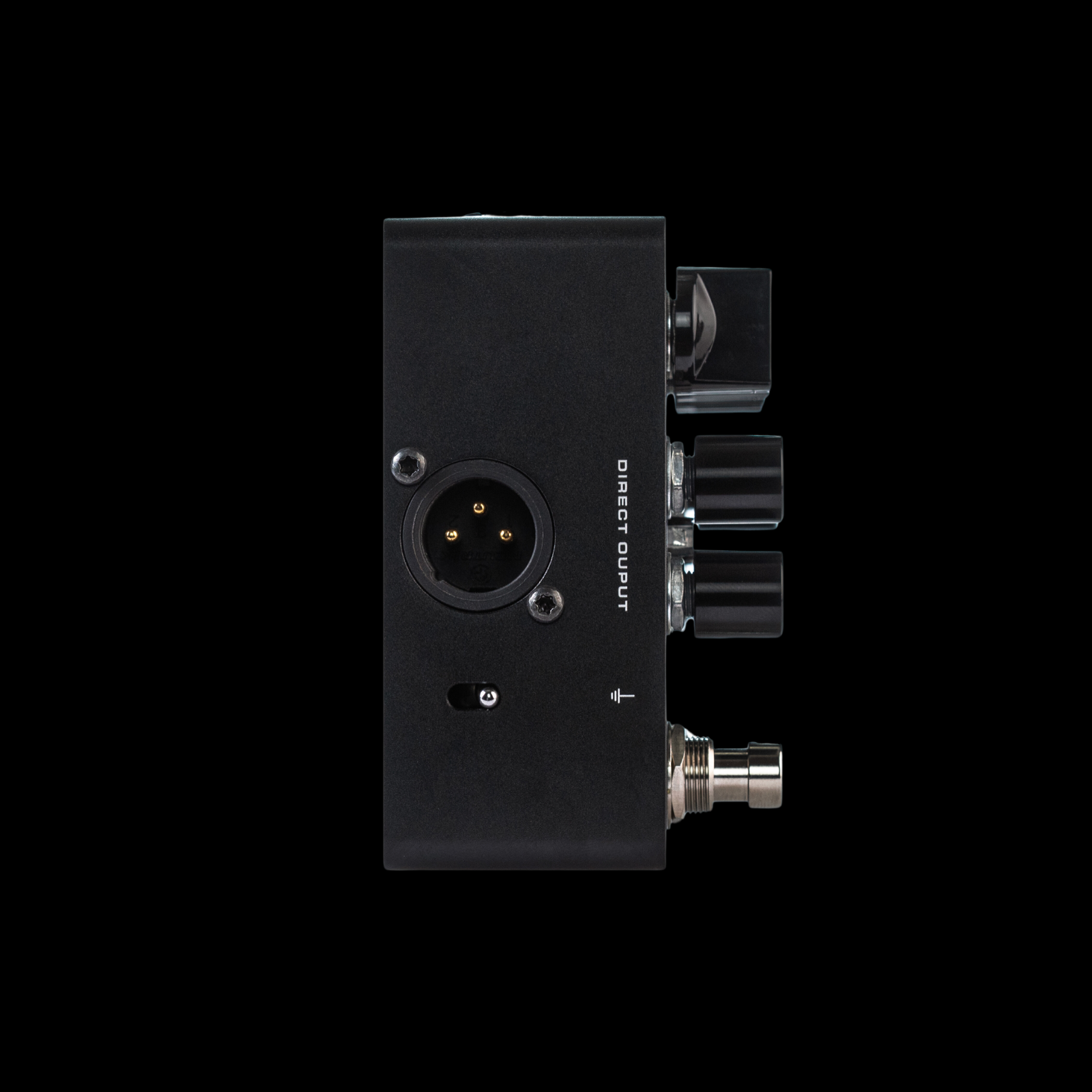

• Direct Output: Balanced output via XLR connector. Cabinet simulation can be switched with the Cab Sim push-button.

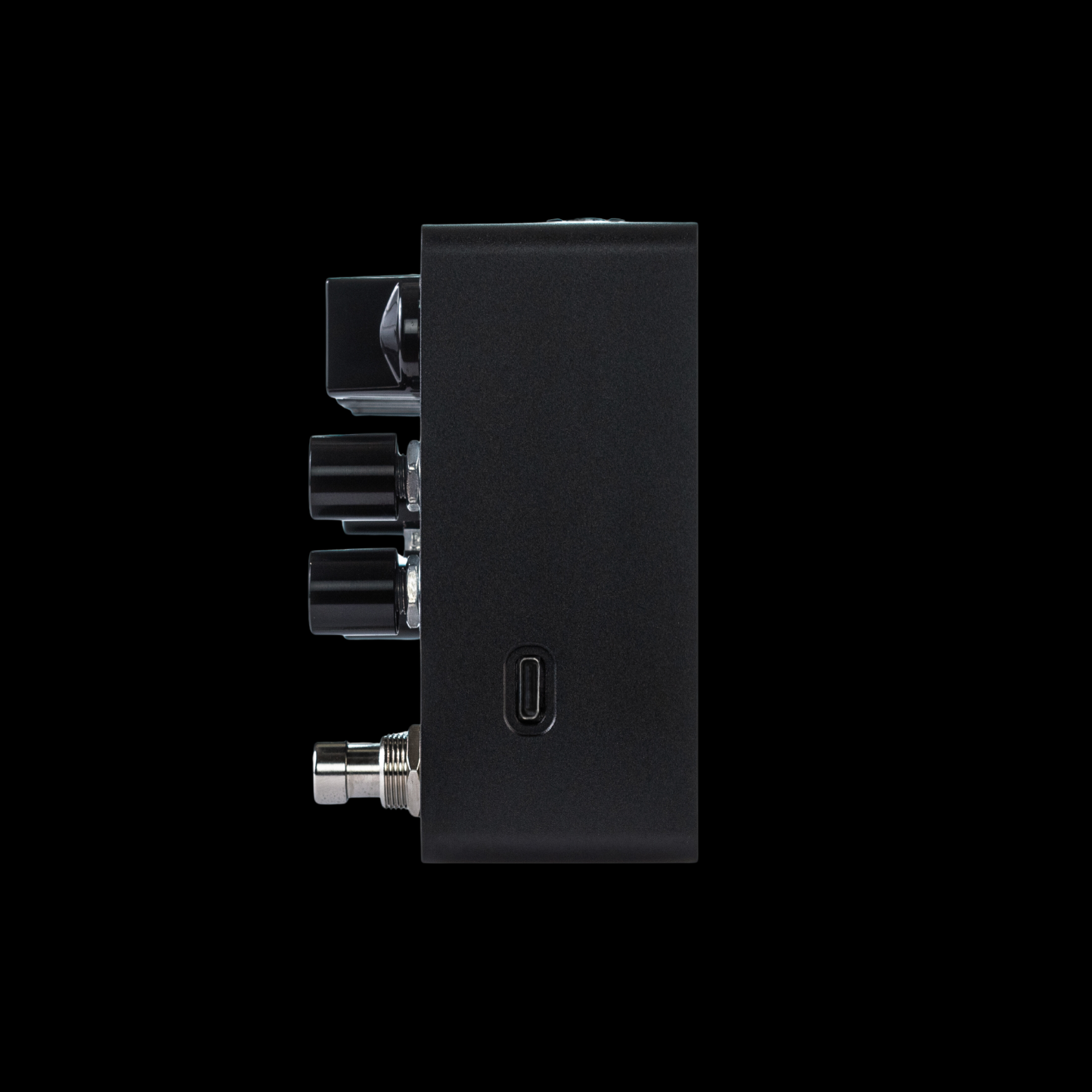

• USB C: Connect to Darkglass Suite (PC/Mac) to load impulse responses to the pedal.

• Ground lift: Disconnects the signal ground on the Direct Output to break any ground loops.

• Cab Sim: 7 Cab Sim slots for the XLR can be accessed by pushing on the Character knob
• Length: 5.5 in
• Width: 5 in
• Height: 3.3 in
• Weight: 1.45 lbs
