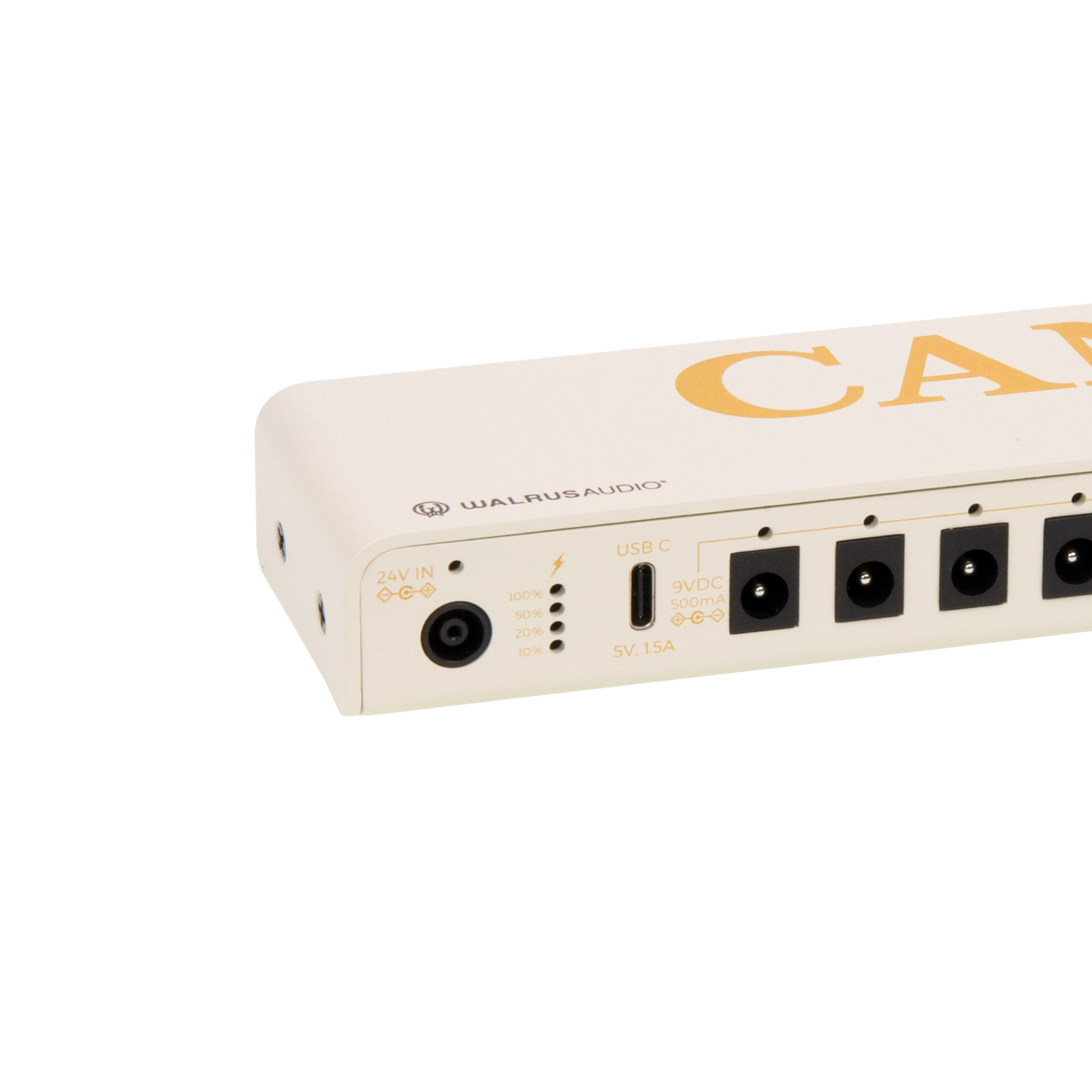

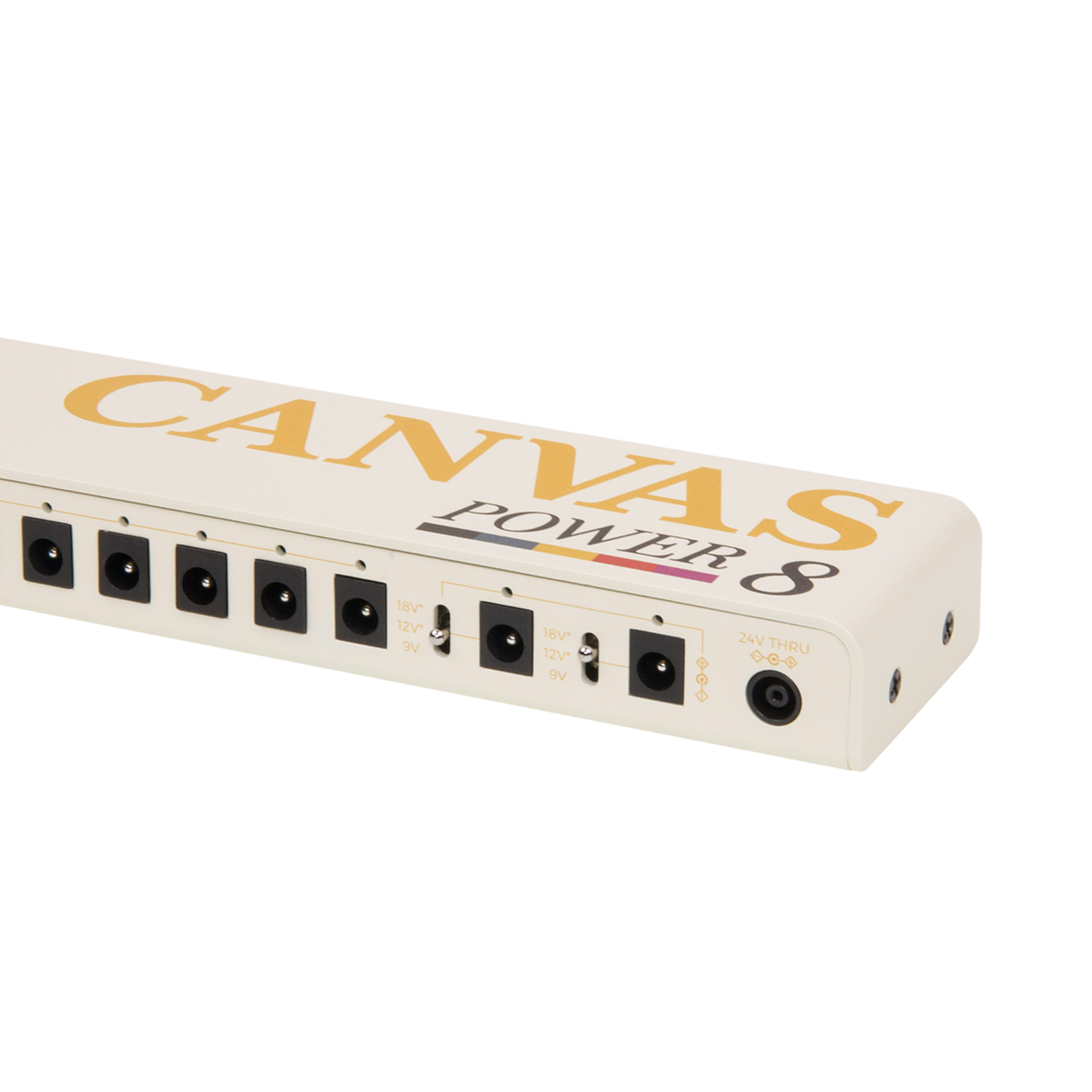

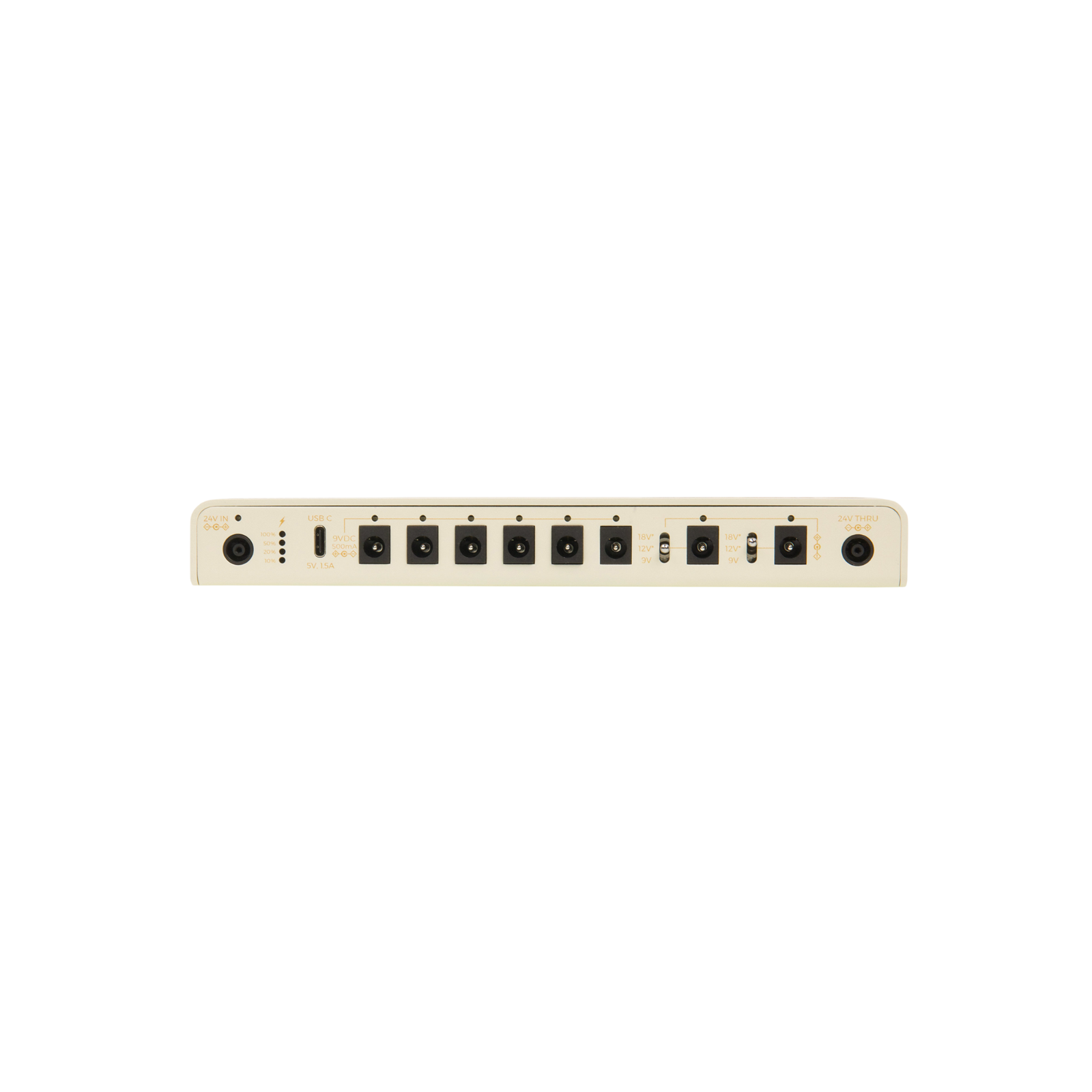

Walrus Audio Canvas Power 8 - Harvest Series

Walrus Audio Canvas Power 8 - Harvest Series

The Walrus Audio Canvas Power 8 is the essential foundation for any serious pedalboard, now available in the limited-edition Harvest Series aesthetic. This power supply ensures your effects are running at their peak potential by delivering meticulously clean and isolated DC power. Built upon modern, highly efficient switch mode supply architecture, the circuit provides eight fully isolated outputs that are heavily filtered to eliminate noise, hum, and crosstalk. This clean "tone" ensures your signal chain remains pristine, letting the true sound of your cherished pedals shine through without interference.

Boasting a rugged, super-slim construction, the Power 8 is designed to tuck neatly beneath almost any pedalboard, taking up minimal space thanks to its low 1-inch profile. The special Harvest Series warm white enclosure with unique fall-themed lettering provides a cozy, limited-edition look for your rig. For maximum versatility, it includes an LED power meter, individual output indicators, and universal mounting brackets, making installation quick and secure so you can focus on playing.

The Power 8 delivers a total of eight dedicated outputs, including six standard 9V outputs, each capable of supplying up to 500mA—perfect for most modern digital and analog effects. For power-hungry or high-headroom pedals, two outputs are switchable between 9V, 12V, and 18V, ensuring you can meet various voltage demands. Additionally, a dedicated USB-C charging port allows you to keep your smart device or tablet topped up during rehearsal or performance. This unit is truly modular, offering a 24V DC pass-thru for linking to other Canvas Power units as your board grows.

Highlights

• Limited-edition Harvest Series aesthetic featuring a warm white enclosure.

• Eight fully isolated DC power outputs ensure silent, clean performance.

• Features two variable outputs switchable between 9V, 12V, and 18V.

• Super-slim, road-ready construction (1" height) with included mounting hardware.

• Integrated USB-C charging port (5V/1.5A) for powering external devices.

Specifications

• Type: Pedalboard Power Supply

• Isolated Outputs: Yes

• Total Isolated Outputs: 8

• 9V Outputs: 6 x 9V DC 500mA

• Variable Outputs: 2 x 9V/12V/18V DC 500mA (at 9V)

• Auxiliary Output: 1 x USB-C 5V 1.5A Charging Port

• Connectivity: 2.1mm barrel (Center Negative)

• Input: 24V DC 4A (Adapter included)

• Height: 1"

• Width: 8.14"

• Depth: 2.12"

• Weight: 0.62 lbs.
