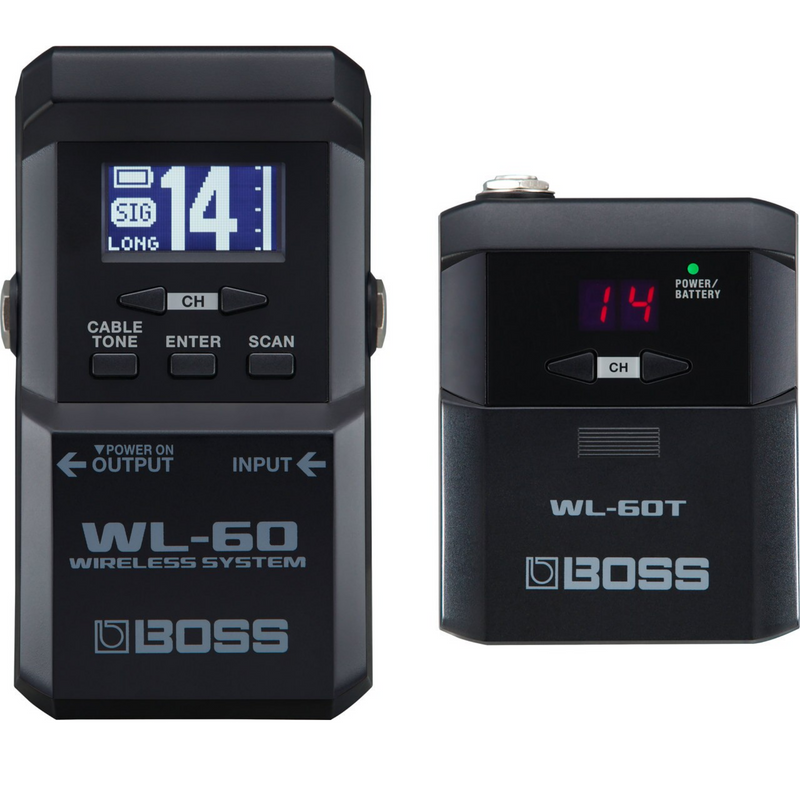

Offering great tone, ultra-low latency, and effortless set up, BOSS’s revolutionary WL series has made it easier than ever for musicians to go wireless. The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries.
SPECIFICATIONS (RECEIVER)
Wireless Format: BOSS proprietary digital audio format
Wireless carrier frequency: 2.4 GHz
Compatible Channels: 14 (May vary due to local conditions)
Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
Latency: 2.3 ms
Dynamic Range: 110 dB or greater
Frequency Response: 20 Hz--20 kHz
Nominal Input Level: -10 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -10 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Connectors: INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type
IN jack OUT jack
Power Supply: Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)
Current Draw: 70 mA
SPECIFICATIONS (TRANSMITTER (WL-60T))
Nominal Input Level: -10 dBu (1 M ohm)
Controls: POWER switch CH button
Display: 7 segments, 2 characters (LED)
Indicator: POWER/BATTERY
Connectors: INPUT jack: 1/4-inch phone type
Power Supply: Alkaline battery (AA, LR6) x 2
Current Draw: 110 mA
Expected Battery Life Under Continuous Use: Alkaline battery (AA, LR6): Approximately 25 hours * These figures will vary depending on the actual conditions of use.
