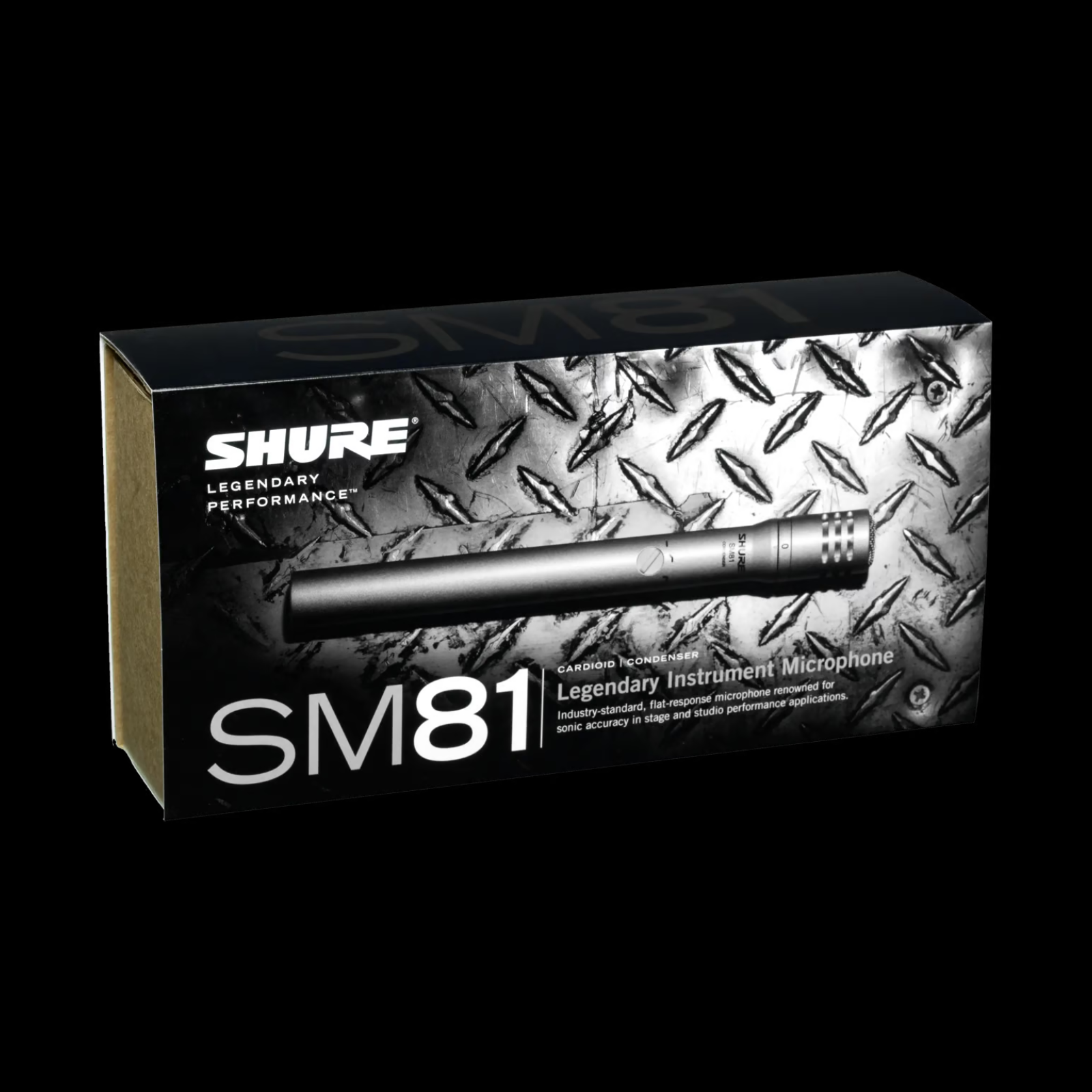

Shure SM81 Small-diaphragm w/10dB Attenuator Condenser Microphone

Shure SM81 Small-diaphragm w/10dB Attenuator Condenser Microphone

The SM81 is ruggedly constructed. It operates on phantom power and performs over a wide range of temperatures and humidity conditions. It is furnished with a swivel adapter, attenuator-switch lock, foam windscreen, and case for carrying and storage. Other accessories are available.

The Shure SM81 is a high-quality, unidirectional condenser microphone designed for studio recording, broadcasting, and sound reinforcement. Its wide frequency response, low noise characteristics, and low RF susceptibility have made it a standard for applications involving acoustic instruments, especially guitar, piano, and cymbals.

Highlights

• 20 Hz to 20 kHz frequency response
• Flat response curve for accurate reproduction of sound sources
• Low noise and high output clipping level
• Low distortion over a wide range of load impedances
• Cardioid polar pattern, uniform with frequency and symmetric about axis, providing maximum rejection and minimum coloration of off-axis sounds
• Low RF susceptibility
• Selectable low-frequency response: flat, 6 or 18 dB/octave rolloff
• 0 dB/10 dB lockable attenuator switch
• Phantom powering (DIN 45 596 voltages of 12 to 48 Vdc)
• Rugged steel construction for durability
• Field-usable over wide range of temperature and humidity conditions

Specifications

• Microphone Type:Condenser
• Polar Pattern:Cardioid
• Frequency Response:20Hz-20kHz
• Max SPL:136dB (146dB w/Pad)
• Output Impedance:150 ohms
• Signal to Noise Ratio:78dB
• Self Noise:16dB (A weighted)
• Low Cut Filter:80Hz (-18dB/octave), 100Hz (-6dB/octave)
• Pads:-10dB
• Connector:XLR
• Power Source:12-52V phantom power
• Dimensions:8.35" x 0.93"
• Weight:0.5 lbs.
• Included Accessories:Mic Clip, Carrying Pouch, Foam Windscreen, Stand Adapter
• Manufacturer Part Number:SM81-LC

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
