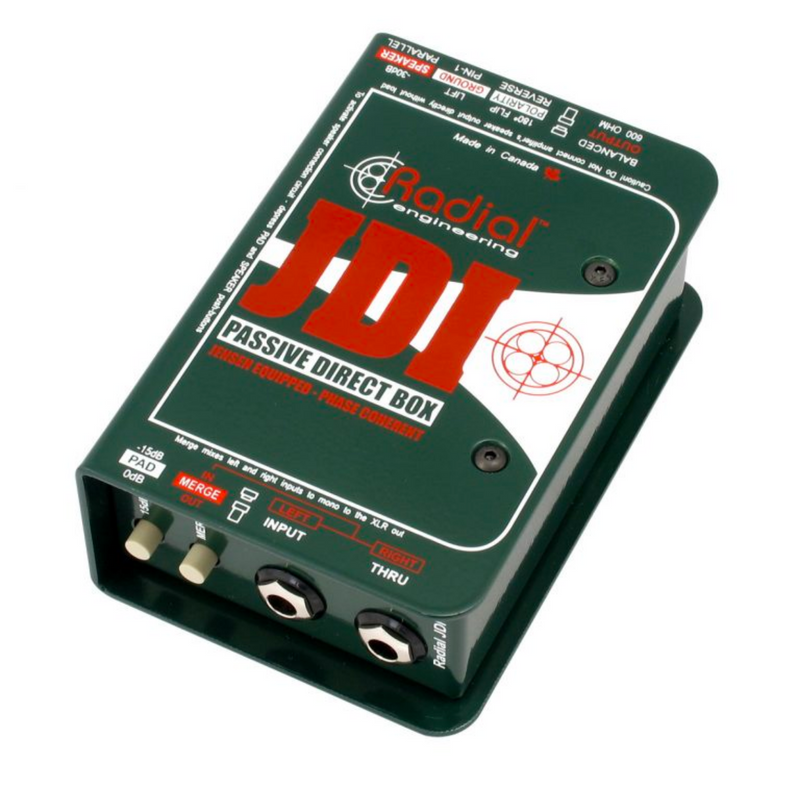

Radial JDI - Jensen Equipped 1-channel Passive Instrument Direct Box

Radial JDI - Jensen Equipped 1-channel Passive Instrument Direct Box

The JDI is a high performance passive direct box for live concert touring and professional studio recording applications, featuring a premium Jensen transformer for exceptional audio performance.

Pure Sound of the Instrument

The Radial JDI is a passive direct box designed to handle extreme signal levels without distortion of any kind. At the heart, the Radial JDI employs the world class Jensen JT-DB-EPC audio transformer delivering a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the Radial JDI performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes the JDI particularly adept at eliminating hum and buzz caused by ground loops.

Features:

• Jensen Transformer equipped passive DI
• Eliminates hum and buzz from ground loops
• Virtually zero phase & harmonic distortion
• Exceptional signal handling and noise rejection

Specs:

• Type:Passive DI
• Channels:1
• Inputs:1 x 1/4"
• Outputs:1 x XLR, 1 x TS thru
• Height:2"
• Width:3.5"
• Depth:5.5"
• Weight:2.2 lbs.
• Manufacturer Part Number:R800 1010
