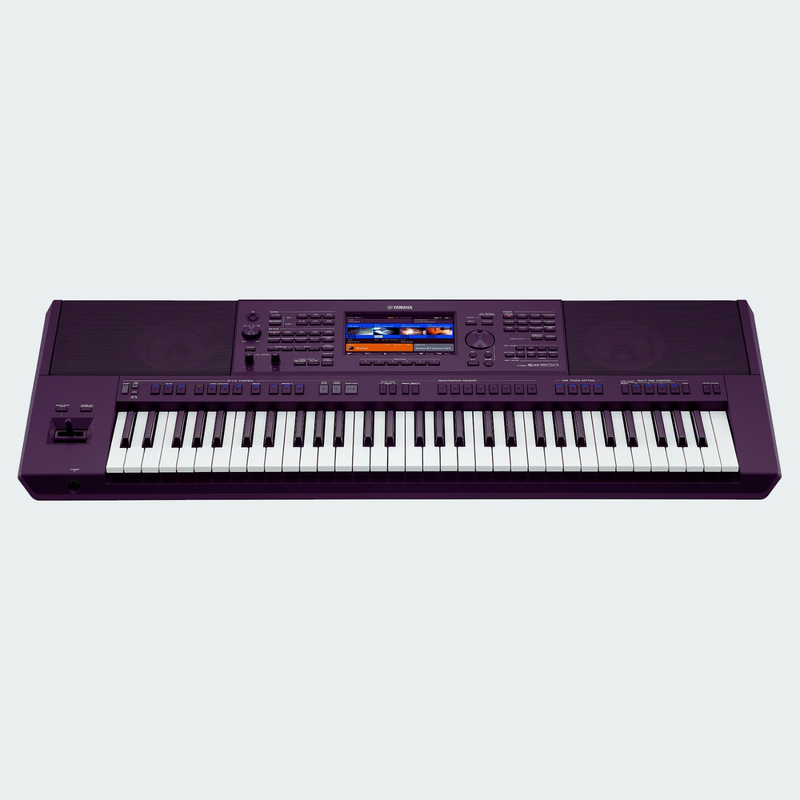

The PSR-SX900 is the flagship in the PSR-SX Series. Surpassed only by the Genos, this power-house songwriting and performance keyboard features never before seen speaker technology, pro-level connectivity, and a completely redesigned user interface.

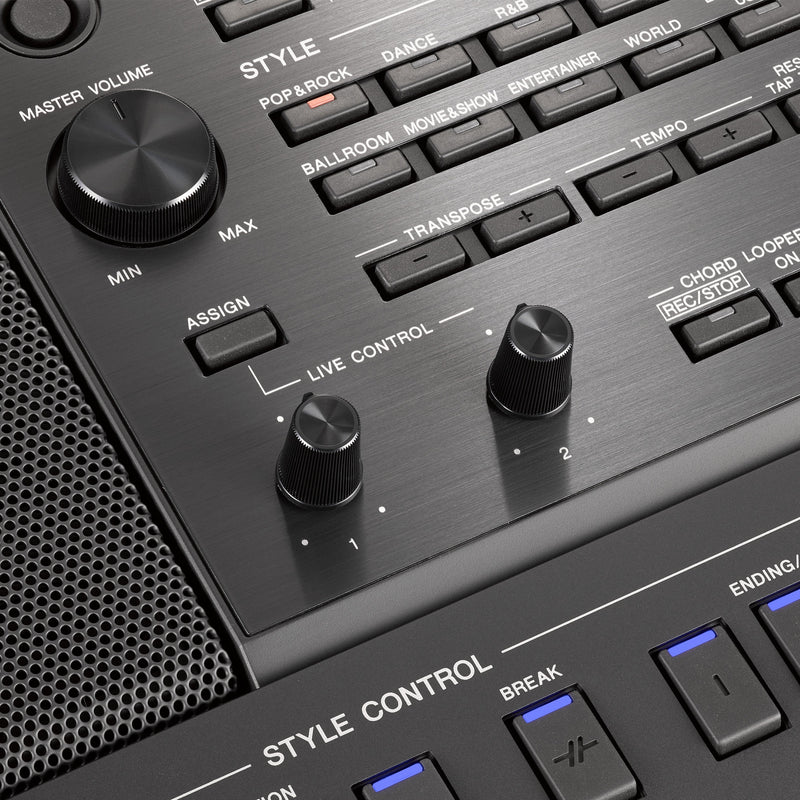

With a completely redesigned sound system, user interface, new assignable functions, Joystick and Live Controllers, you can completely tailor the functions and sounds of PSR-SX900, making your creativity positively limitless.
Perfect for songwriting, the PSR-SX900 is packed with rhythmic patterns (called "Styles") spanning many genres, making it ideal for creating the accompaniment to your musical ideas and an invaluable inspiration for your next composition or arrangement. Together with a tremendous range of expressive sounds and vocal harmony, the PSR-SX900 is your ultimate and inspirational musical partner.
|
PSR-SX900 |
PSR-SX700 |
PSR-SX600 |
||
|---|---|---|---|---|
| Body | Color | Black | Black | BPalen Musiclack |
| Dimensions | Width | 1017 mm (40") | 1017 mm (40") | 1004 mm |
| Height | 139 mm (5.5") | 139 mm (5.5") | 134 mm | |
| Depth | 431 mm (17") | 431 mm (17") | 410 mm | |
| Weight | Weight | 11.5 kg (25.35 lb) | 11.5 kg (25.35 lb) | 8.1 kg |
| Keyboard | Number of Keys | 61 | 61 | 61 |
| Type | Organ (FSB), Initial Touch | Organ (FSB), Initial Touch | Organ, Initial Touch | |
| Touch Response | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | |
| Other Controllers | Joystick | Yes | Yes | - |
| Control Knobs | 2 (assignable) | 2 (assignable) | 2 (assignable) | |
| Pitch Bend | - | - | Yes | |
| Modulation | - | - | Yes | |
| Display | Type | TFT Color Wide VGA LCD | TFT Color Wide VGA LCD | TFT Color WQVGA LCD |
| Size | 800 x 480 dots (7 inch) | 800 x 480 dots (7 inch) | 480 x 272 dots (4.3 inch) | |
| Touch Screen | Yes | Yes | - | |
| Color | Color | Color | Color | |
| Language | English, German, French, Spanish, Italian | English, German, French, Spanish, Italian | English, German, French, Spanish, Italian, Japanese | |
| Panel | Language | English | English | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling | AWM Stereo Sampling | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 128 | 128 | 128 |
| Preset | Number of Voices | 1337 Voices + 56 Drum/SFX Kits | 986 Voices + 41 Drum/SFX Kits | 850 Voices + 43 Drum/SFX Kits + 480 XG Voices |
| Featured Voices | 252 S.Art!, 54 Mega Voices, 31 Sweet! Voices, 87 Cool! Voices, 131 Live! Voices, 24 Organ Flutes! | 131 S.Art!, 30 Mega Voice, 31 Sweet! Voices, 74 Cool! Voices, 89 Live! Voices, 24 Organ Flutes! | 73 S.Articulation!, 27 MegaVoice, 27 Sweet!, 64 Cool!, 71 Live! | |
| Compatibility | XG | Yes (for Song playback) | Yes (for Song playback) | Yes (for Song playback) |
| GS | Yes (for Song playback) | Yes (for Song playback) | Yes (for Song playback) | |
| GM | Yes | Yes | Yes | |
| GM2 | Yes | Yes | Yes | |
| Expandability | Expansion Voice | Yes (approx. 1 GB) | Yes (approx. 400 MB) | Yes (approx. 100MB max.) |
| Editing | Voice Set | Voice Set | Voice Set | |
| Part | Right 1, Right 2, Right 3, Left | Right 1, Right 2, Right 3, Left | Right 1, Right 2, Left | |
| Types | Reverb | 59 Presets + 30 User | 59 Presets + 30 User | 52 Preset + 30 User |
| Chorus | 106 Presets + 30 User | 106 Presets + 30 User | 106 Preset + 30 User | |
| DSP | 322 Presets (with VCM) + 30 User | 322 Presets + 30 User | 295 Preset + 30 User | |
| Insertion Effect | 1-8: 322 Presets (with VCM) + 30 User | 1-5: 322 Presets + 30 User | - | |
| Master Compressor | 5 Presets + 30 User | 5 Presets + 30 User | 5 Preset + 30 User | |
| Master EQ | 5 Presets + 30 User | 5 Presets + 30 User | 5 Preset + 30 User | |
| Part EQ | 28 Parts | 28 Parts | 27 Parts | |
| Others | Mic/Guitar Effects: Noise Gate, Compressor, 3 Band EQ, Vocal Effect: 23 | Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1 | Mic effects: Noise Gate x 1, Compressor x 1, 3 Band EQ | |
| Arpeggio | Yes | Yes | Yes | |
| Vocal Harmony | Number of Presets | Vocal Harmony: 54, Synth Vocoder: 20 | - | - |
| Number of User Settings | 60 *The number is the total of Vocal Harmony and Synth Vocoder | - | - | |
| Preset | Number of Preset Styles | 525 | 400 | 415 |
| Featured Styles | 463 Pro Styles, 46 Session Styles, 10 DJ Styles, 6 Free Play | 353 Pro Styles, 34 Session Styles, 10 DJ Styles, 3 Free Play | 372 Pro Styles, 32 Session Styles, 10 DJ Styles, 1 Free Play | |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord | |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | |
| Other Features | One Touch Setting (OTS) | 4 for each Style | 4 for each Style | 4 for each Style |
| Chord Looper | Yes | - | - | |
| Style Section Reset | Yes | Yes | Yes | |
| Unison & Accent | - | - | Yes | |
| Expandability | Expansion Style | Yes (Internal Memory) | Yes (Internal Memory) | Yes (Internal Memory) |
| Expansion Audio Style | Yes (Internal Memory) | - | - | |
| Compatibility | Style File Format, Style File Format GE | Style File Format, Style File Format GE | Style File Format (SFF), Style File Format GE (SFF GE) | |
| Preset | Number of Preset Songs | 5 Sample Songs | 5 Sample Songs | 3 Sample Songs |
| Recording | Number of Songs | Unlimited (depends on the drive capacity) | Unlimited (depends on the drive capacity) | - |
| Number of Tracks | 16 | 16 | 16 | |
| Data Capacity | Approx. 3 MB/Song | Approx. 3 MB/Song | Approx. 1 MB/Song | |
| Recording Function | Quick Recording, Multi Recording, Step Recording | Quick Recording, Multi Recording, Step Recording | Quick Recording, Multi Track Recording | |
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF | SMF (Format 0 & 1), XF | SMF (Format 0 & 1), XF |
| Recording | SMF (Format 0) | SMF (Format 0) | SMF (Format 0) | |
| Preset | Number of Multi Pad Banks | 329 Banks x 4 Pads | 226 Banks x 4 Pads | 188 Banks x 4 Pads |
| Audio | Audio Link | Yes | Yes | Yes |
| Registration | Number of Buttons | 8 | 8 | 8 |
| Control | Registration Sequence, Freeze | Registration Sequence, Freeze | Registration Sequence, Freeze | |
| Playlist | Number of Records | 2500 (max.) Records per Playlist file | 2500 (max.) Records per Playlist file | 500 (max.) Records per Playlist file |
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo | Follow Lights, Any Key, Karao-Key, Your Tempo | Follow Lights, Any Key, Karao-Key, Your Tempo |
| Search | Registration Bank | Registration Bank | Registration Bank | |
| Demo/Help | Demonstration | Yes | Yes | Yes |
| Overall Controls | Metronome | Yes | Yes | Yes |
| Tempo Range | 5 - 500, Tap Tempo | 5 - 500, Tap Tempo | 5 - 500, Tap Tempo | |
| Transpose | -12 – 0 – +12 | -12 – 0 – +12 | -12 – 0 – +12 | |
| Tuning | 414.8 – 440 – 466.8 Hz | 414.8 – 440 – 466.8 Hz | 414.8 – 440.0 – 466.8 Hz | |
| Octave Button | Yes | Yes | Yes | |
| Scale Type | 9 types | 9 types | 9 types | |
| Sub Scale Setting | Yes | - | - | |
| Bluetooth | Yes (Audio) * May not have this functionality depending on the country | - | - | |
| Miscellaneous | Direct Access | Yes | Yes | Yes |
| Text Display Function | Yes | Yes | Yes | |
| Wallpaper Customization | Yes | Yes | - | |
| Display Out | Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. | Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. | - | |
| Voices | Harmony/Echo | Yes (with Arpeggio) | Yes (with Arpeggio) | Yes (with Arpeggio) |
| Panel Sustain | Yes | Yes | Yes | |
| Mono/Poly | Yes | Yes | Yes | |
| Voice Information | - | Yes | Yes | |
| Styles | Style Creator | Yes | Yes | Yes |
| OTS Information | Yes | Yes | Yes | |
| Songs | Score Display Function | Yes | Yes | Yes |
| Lyrics Display Function | Yes | Yes | Yes | |
| Song Creator | - | Yes | Yes | |
| Multi Pads | Multi Pad Creator | Yes | Yes | Yes |
| Audio Recorder/Player | Recording Time (max.) | 80 minutes/Song | 80 minutes/Song | 80 minutes/Song |
| Recording | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) | *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo) | |
| Playback | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) | *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo) | |
| Lyrics Display Function | Yes (.mp3 only) | Yes (.mp3 only) | - | |
| Time Stretch | Yes | Yes | Yes | |
| Pitch Shift | Yes | Yes | Yes | |
| Vocal Cancel | Yes | Yes | Yes | |
| Storage | Internal Memory | Yes (approx. 4 GB) | Yes (approx. 1 GB) | Yes (approx. 20 MB max.) |
| External Drives | USB Flash Memory (via USB to DEVICE) | USB Flash Memory (via USB to DEVICE) | USB flash drive | |
| Connectivity | Headphones | Yes | Yes | Yes |
| FOOT PEDAL | 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable | 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable | 1 (Sustain), 2 (Unison), Function Assignable | |
| Microphone | Microphone/Guitar x 1 | Microphone/Guitar x 1 | Microphone x 1 | |
| MIDI | IN, OUT | IN, OUT | - | |
| AUX IN | Stereo mini jack | Stereo mini jack | Stereo mini jack | |
| LINE OUT | MAIN OUTPUT (L/L+R, R), SUB (AUX) OUTPUT (1,2 (L/L+R, R)) | MAIN OUTPUT (L/L+R, R) | MAIN OUTPUT(L/L+R, R) | |
| USB TO DEVICE | Yes (x 2) | Yes | Yes | |
| USB TO HOST | Yes | Yes | Yes | |
| Amplifiers | (15 W + 10 W) x 2 | 15 W x 2 | 15 W x 2 | |
| Speakers | 13 cm x 2 + 2.5 cm (dome) x 2 | 13 cm x 2 + 5 cm x 2 | 12 cm x 2 | |
| Power Supply | PA-300C or an equivalent recommended by Yamaha | PA-300C or an equivalent recommended by Yamaha | PA-300C or an equivalent recommended by Yamaha | |
| Power Consumption | 24 W | 21 W | 17 W | |
| Auto Power Off Function | Yes | Yes | Yes | |
| Included Accessories | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.) | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.) | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor (may not be include depending on your area. Check with your Yamaha dealer.) | |
