Two-Notes Torpedo Captor 16-ohm Reactive Loadbox

Two-Notes Torpedo Captor 16-ohm Reactive Loadbox

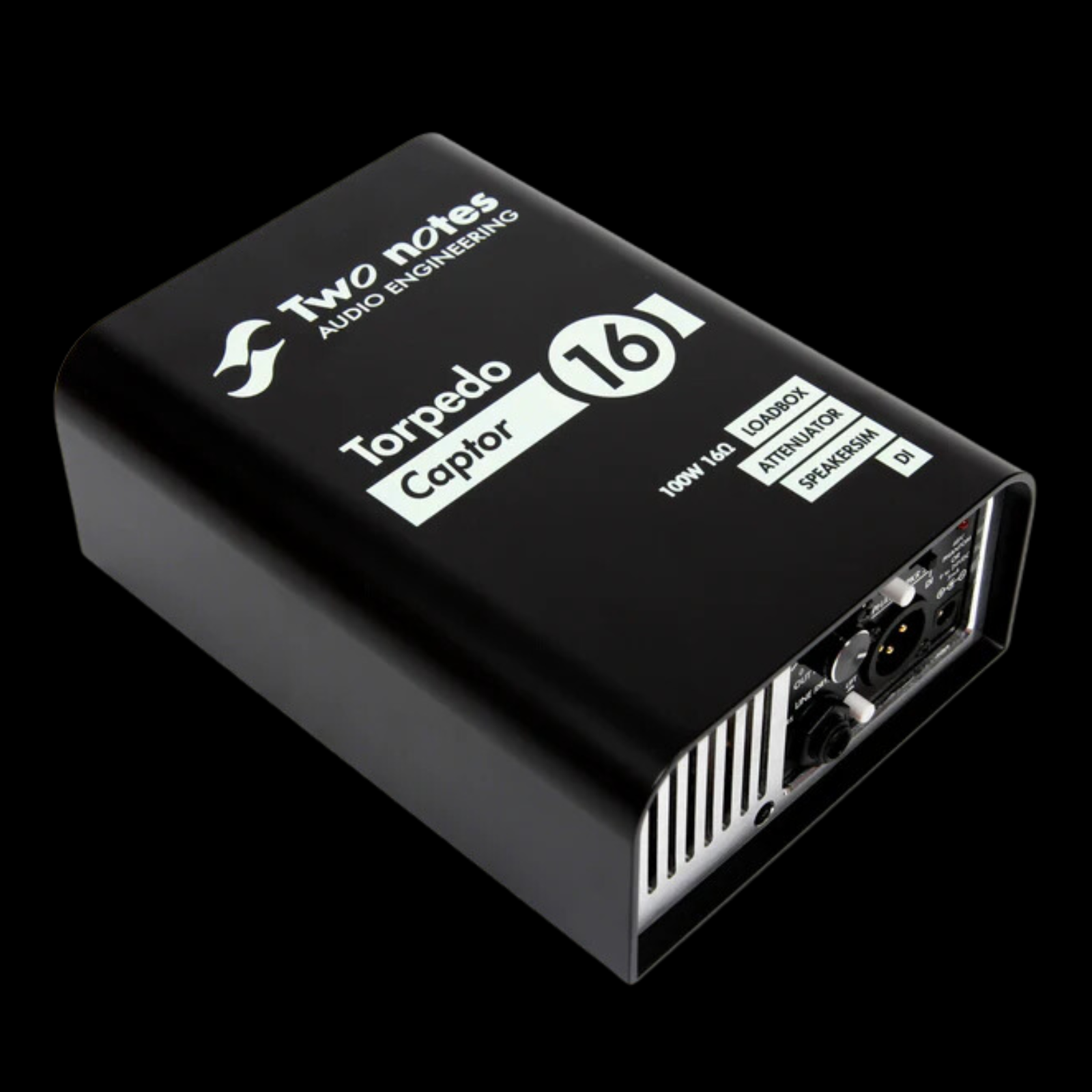

The Torpedo Captor 16 is an easy-to-use reactive Loadbox, perfect for unleashing your favorite tube amp in a variety of modern applications and venues. Designed to be placed between your amp head and speaker cabinet, it acts as a power attenuator and cabinet simulator, all packaged in a super-convenient DI-sized enclosure.

Featuring a superior arsenal of connectivity options as well as the Two notes
GENOME plug-in software, complete with 16 stand-out virtual cabinets to choose from, the Torpedo Captor 16 allows you to use your amp at full potential at home, in the studio, or live.

Highlights

• Save space, weight and volume on stage

• Easy and fast recording

• Use your favorite loud amp at reasonable volume or silently

• Choose between 16 famous virtual cabinets with the GENOME plug-in

• Use your amp and play securely

Specifications

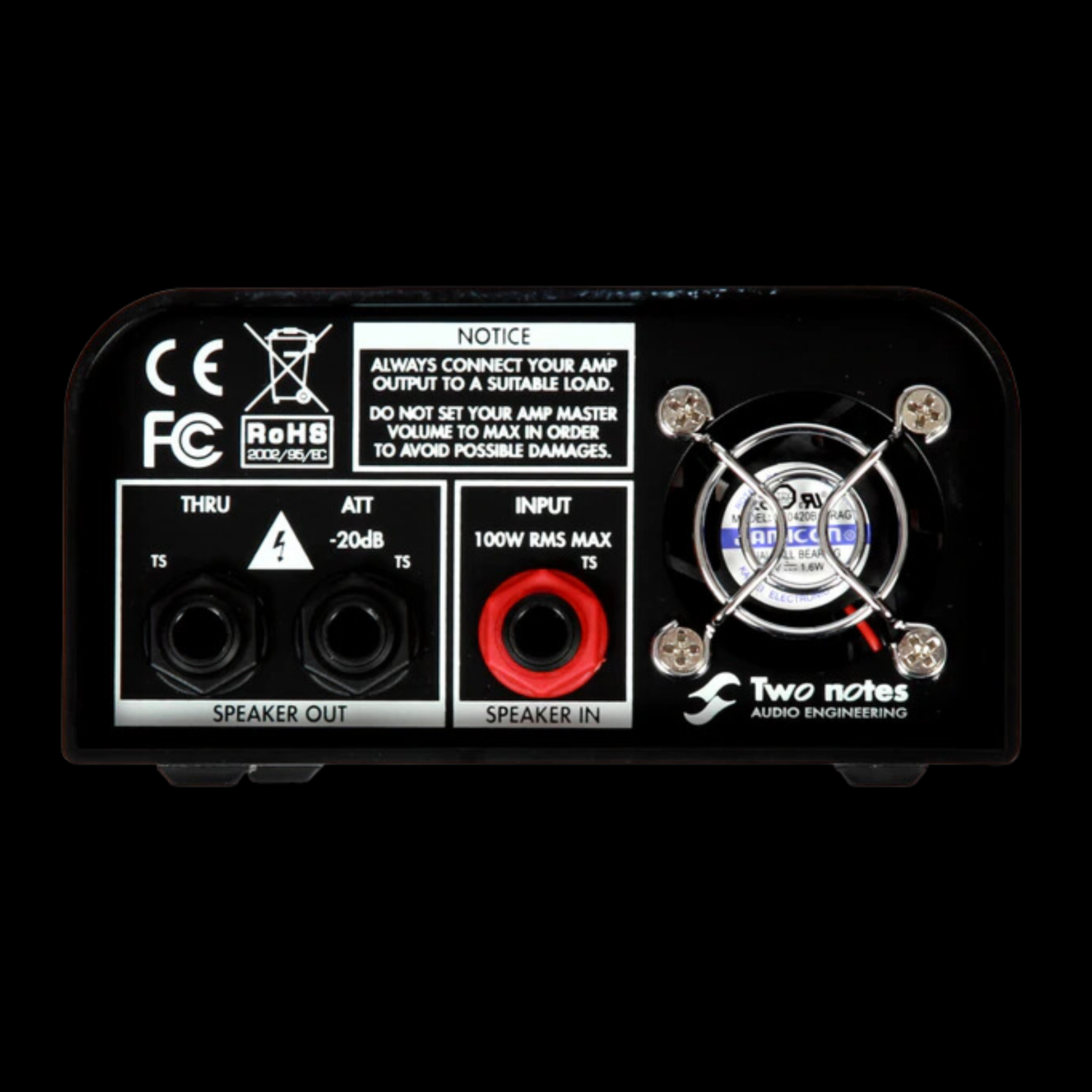

• Speaker input: 1/4″ jack unbalanced (TS)

• Speaker Attenuated Output: 1/4″ jack unbalanced (TS)

• Speaker Thru: 1/4″ Jack unbalanced (TS) - Directly connected to Speaker Input (Loadbox disconnected when in use)

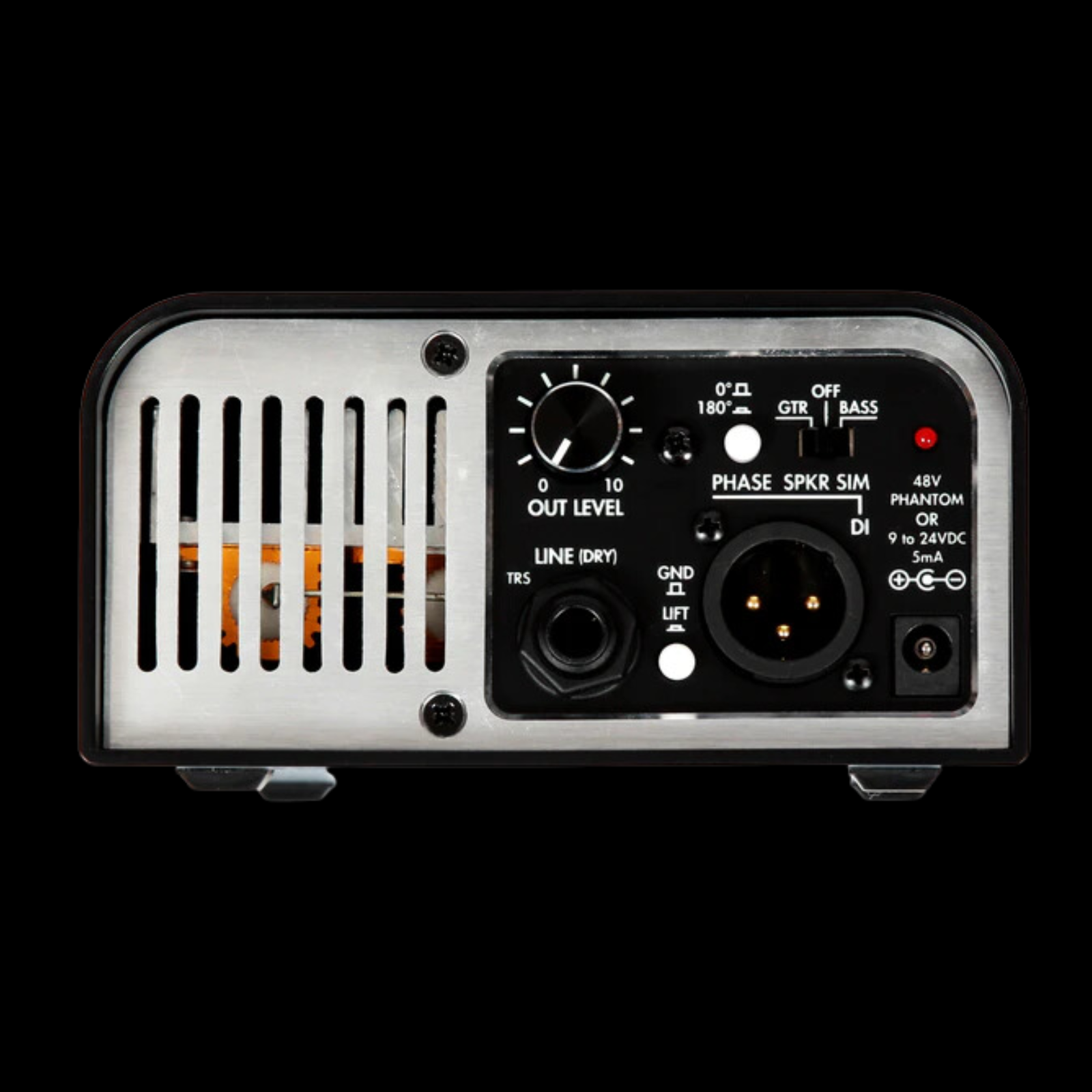

• Line Output: 1/4″ Jack balanced (TRS) - Impedance: 1000 Ohms - Phase switch - Ground lift (Without speaker simulation)

• DI Output: XLR balanced - Impedance: 600 Ohms (With or without speaker simulation)

• Analog speaker sim: Guitar : based on Brit VintC DynIR Cabinet – Dyn57
• Microphone / Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone

• Impedance: 4, 8 or 16 Ohms

• Max admissible power: 100W RMS

• Safety system: Temperature-controlled fan / Active thermal safety

• Width x Depth x Height: 12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″ (Including connectors and knobs)

• Weight: 1000 g / 2.2 lbs

• Input voltage: Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center

• Current draw: 5mA

• Power input connector: DC connector, 2.1mm x 5.5mm, center negative (Power is required only for the XLR DI output and analog speaker sim)
