Compact and lightweight, AIR10 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR10 gives you all the power and tools you need for both mobile and installed sound.
Each type of power amplifier has advantages and disadvantages. By employing different amplifier types for each driver, AIR10 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker’s frequency range. A 500W (continuous), Class D amplifier powers the 10-inch low-frequency driver, providing efficient, clean low end when you need it. A 200W (continuous), Class AB amplifier powers the 1-inch high-frequency driver, delivering a natural sounding, "AIR-y" high end. The combination can deliver up to 121 dB SPL of sweet, clear sound between 66 Hz and 20 kHz.
The AIR10’s molded plastic cabinet can be mounted in several ways, providing tremendous versatility. The multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and nonskid rubber feet on one side for stage monitor applications. Rig the speaker using M10 fly points, yoke-mount it to walls or beams, or ground-stack it for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. The integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR10 is easy to transport, thanks to its top-mounted handle.

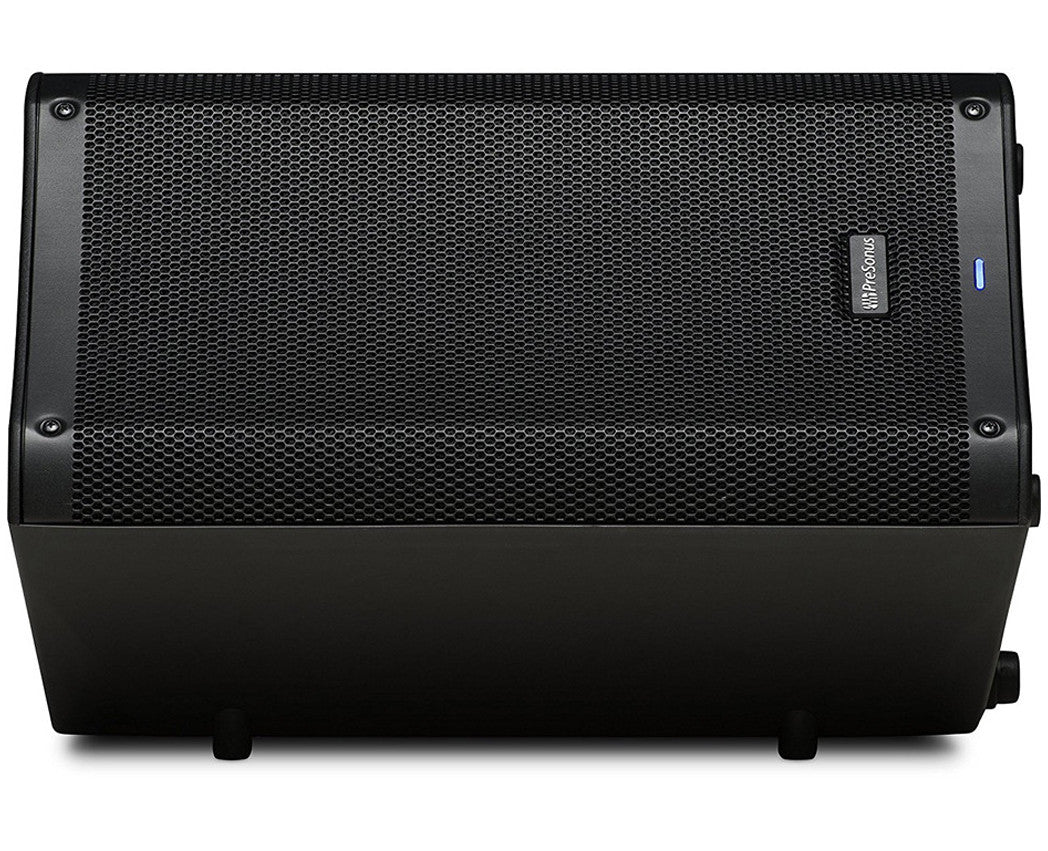

If you place a loudspeaker against a hard surface such as a wall or floor, the low frequencies emitted from the rear of the enclosure propagate back into the room. This effect, called “half-space loading,” can increase the output of bass frequencies by as much as 6 dB, and it is an unavoidable issue with floor monitors. Most PA speakers in this class simply roll off excess low frequencies with a highpass filter—a half-baked compensation for half-space loading. In contrast, AIR-series full-range loudspeakers offer a Monitor preset that uses DSP to retune the speaker to both compensate for bass buildup and maintain a tight mid-bass response, while suppressing problematic frequencies to reduce feedback.

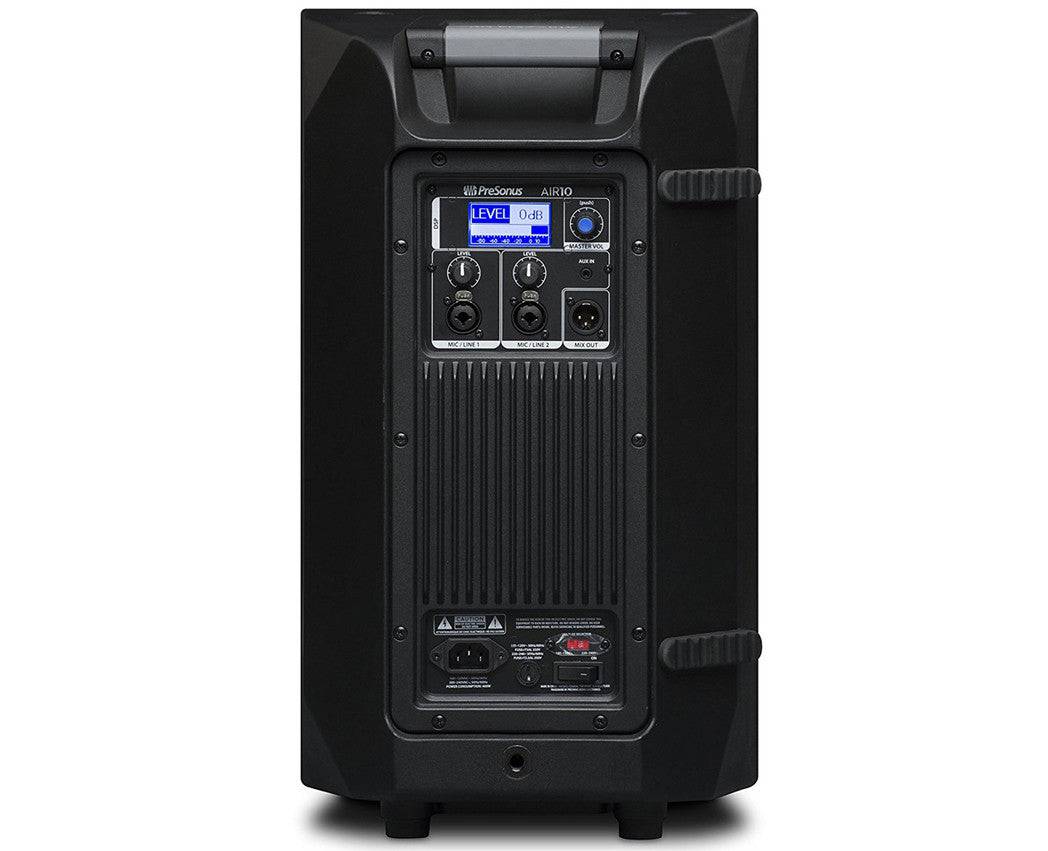

AIR-series full-range loudspeakers offer a choice of inputs so you can use them with a variety of sources. You get two combo XLR mic/TRS line inputs, each with a Class A microphone preamplifier and independent gain control. A stereo 1/8” connection admits signals from smartphones, tablets, and other consumer audio devices. These signals can be combined with the AIR10’s internal mixer, and a balanced XLR Mix output lets you send pass the signals to other AIR-series loudspeakers.
With their “best of both worlds” power-amp configuration, carefully programmed DSP presets, versatile mounting options, flexible inputs with onboard mixing, and other professional features, PreSonus AIR-series loudspeakers are an excellent choice for both mobile and installed sound. You’ll love their easy transportability and their affordability. But the best thing about AIR-series loudspeakers is their clear, natural, “AIR-y” sound.
|LF Driver Size:||10" Woofer|
|HF Driver Size:||1" Compression Driver|
|LF Driver Power Amp:||500W Continuous Class D|
|HF Driver Power Amp:||200W Continuous Class AB|
|Total Power:||1200W Class D/Class AB|
|Inputs:||2 x XLR - 1/4" Combo, 1 x 1/8" (Aux In)|
|Outputs:||1 x XLR (Mix Out)|
|Signal Processing:||EQ (HF, LF), Performance Presets (DJ, FOH, Monitor, Speech, Enhance)|
|Frequency Range:||55Hz - 20kHz (-10dB)|
|Maximum Peak SPL:||111 dB|
|Horizontal Coverage Angle:||90 Degrees|
|Vertical Coverage Angle:||60 Degrees|
|Enclosure Material:||Rugged Molded Plastic|
|Mounting Options:||Stand Pole-Mountable (1.37" Socket), Suspend with M10 Rigging Points, Wall Mount|
|Manufacturer Part Number:||AIR10|
