Orange OB1-300 300-watt Single Channel Solid State Bass Head



Free Shipping on Most Products

Free Shipping on Most order(s) above $14.99 (over-sized products not included)


Orange OB1-300 300-watt Single Channel Solid State Bass Head

For years, bassists have been combining guitar and bass amps to remarkable effect, adding harmonics and layers of overdrive from a guitar amp to their core bass tone in pursuit of the ultimate live sound. This “bi-amp” trend got us thinking: why drag two amps to the show when you could take just one? The result is the OB1 series of Class A/B rack mountable bass heads, which take care of this and much more besides.

The key to the OB1’s unique sound is our footswitch able blend circuit, which adds a veneer of controllable gain and increased harmonic content to the upper registers of the input signal. The lower frequencies and clean signal are left alone, staying just as warm and clear as they would in a “bi-amped” setup. Depending on where the Gain and Blend controls are set, the possibilities are limitless. Toggle the Blend control to achieve anything from a transparent clean boost to all-out filthy grind and everywhere in between.

OB1-300 is the 300-Watt version, sharing the same features and 2U rack dimensions as the more powerful OB1-500.

“BI-AMP”-INSPIRED DESIGN

The OB1 splits the input instrument signal into two separate paths. One amplifies the clean signal, with all the clarity you would expect from Orange. The other adds stages of gain to the upper harmonics only, controllable via the amp’s Gain knob. These two elements are combined using the amplifier’s Blend control which adjusts the balance between clean and dirty. The Blend control can then be remotely engaged or defeated using the optional footswitch.

The gain and blend range allows for almost any tone, from a subtle level boost that cuts through the mix to added girth and presence at moderate settings that fattens up chorus passages, and fully saturated savagery at the extremes. However you dial it in, the OB1 always maintains critical low-end definition, right the way up to the most offensive settings.

ACTIVE EQ

The OB1’s highly responsive active three-band EQ has been meticulously voiced for maximum effect and minimal fuss. The EQ section is located after the gain and blend in the circuit, allowing full tonal control over the entire range of sounds. The Bass and Middle controls feature ±15 dB of boost or cut, while there is a range of ±20 dB on the Treble control.

ALL-ANALOGUE SIGNAL PATH

The OB1 series puts Class A/B power back on the map. All circuitry is completely analogue, ensuring these amps sound expressive and musical, even at ridiculous gain levels.

RACK-MOUNT FRIENDLY

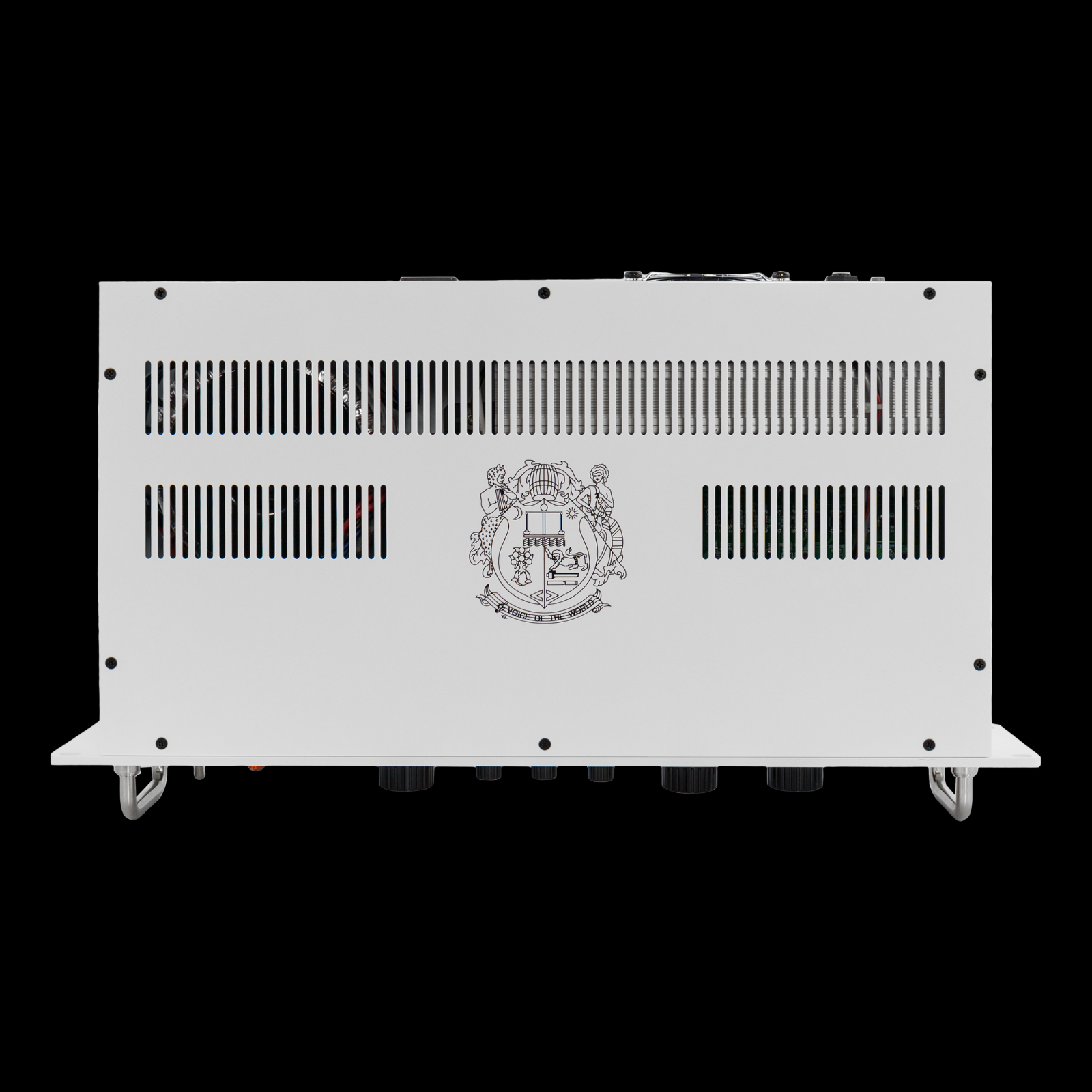

The OB1 Series are our first rack-mountable amps, suitable for 19-inch cases. Enclosed in a rugged steel chassis, the fascia is finished in Orange’s classic “pics-only” styling.

Highlights

  • A single channel bass head that acts like a bi-amped rig
  • Clean side of the amp has a 3-band Baxandall EQ with powerful tone-sculpting ability
  • Gain control only affects the upper harmonics of your sound keeping the bottom end fat and full
  • Dial in everything from subtle warmth to full on overdrive and distortion
  • All-analog signal path with Class A/B power amp that delivers big tone
  • Footswitchable blend and gain controls mix your clean and dirty sound together

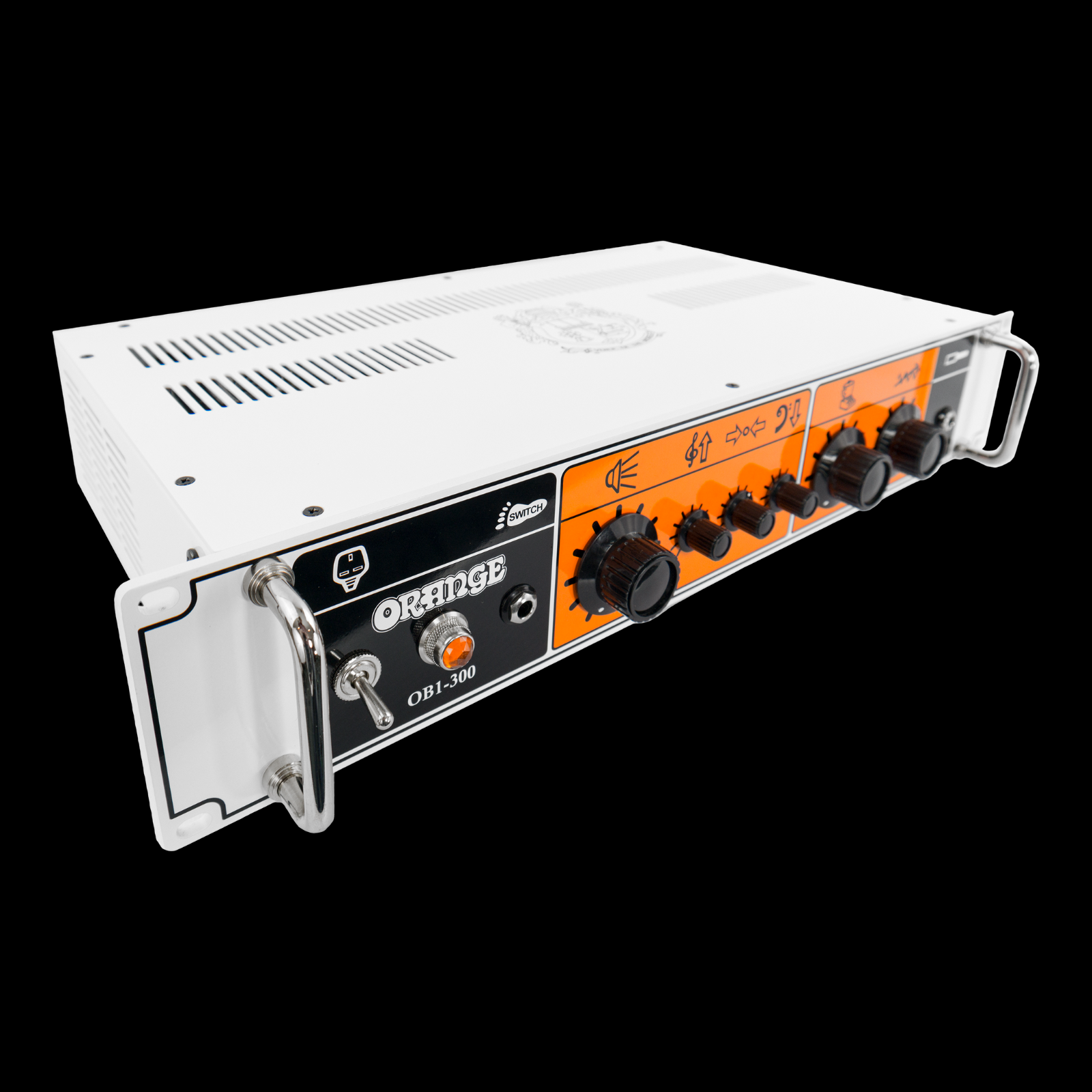

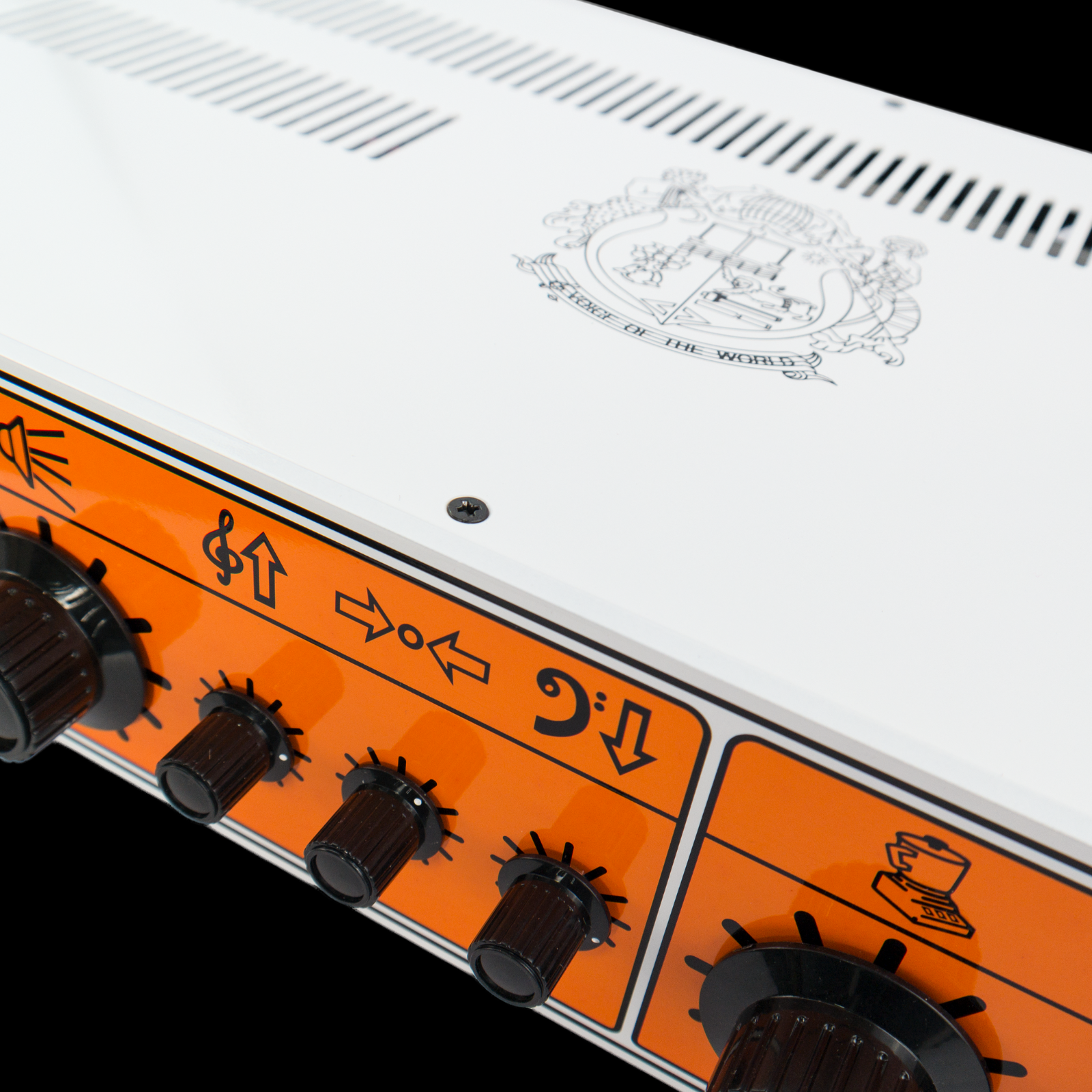

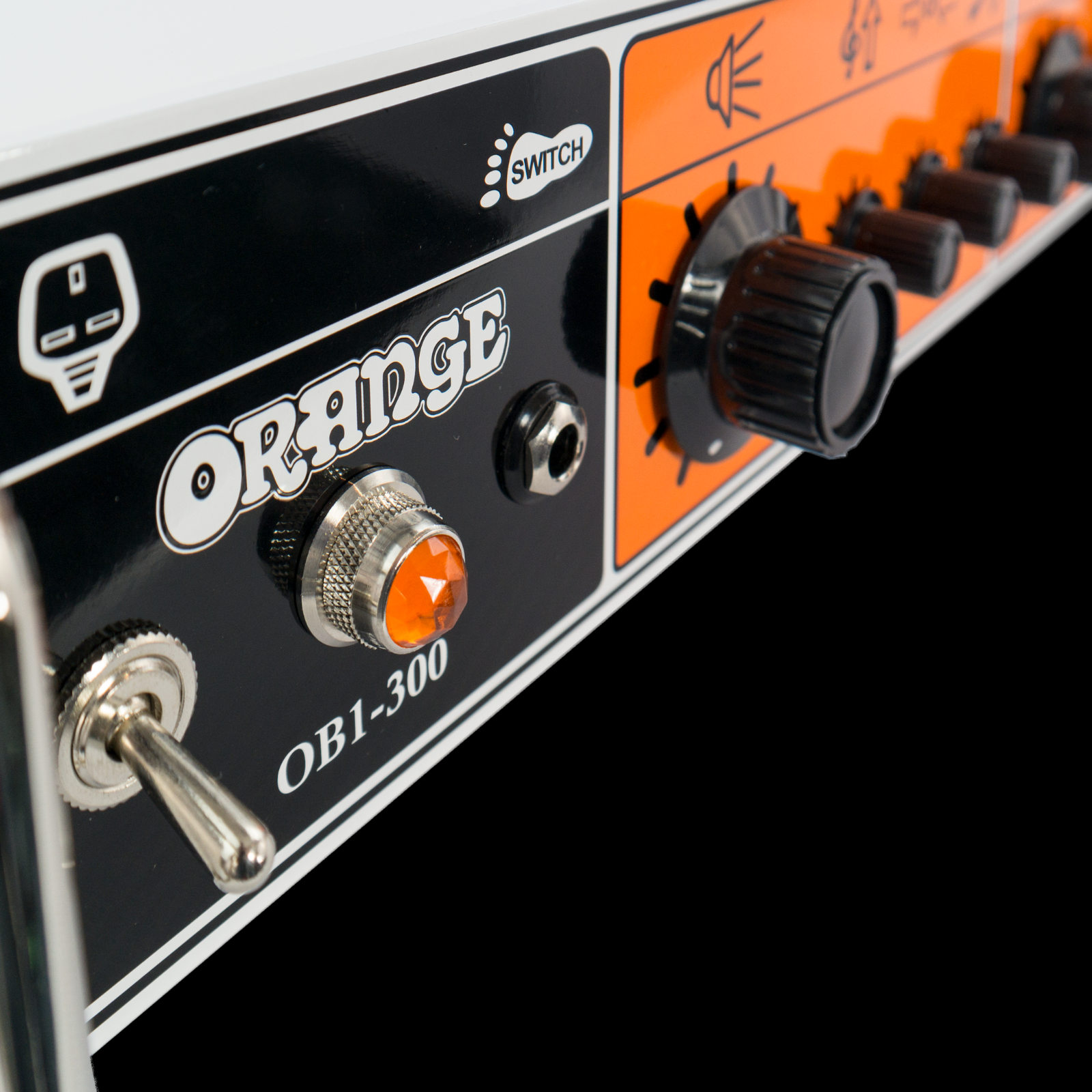

  • Volume, bass, middle, treble, blend, and gain controls, plus an active/passive switch
  • Blend and gain are footswitchable
  • Balanced DI out for feeding your signal to a mixer or PA
  • 19" rack width and 2U tall

Specifications

  • Type: Solid State
  • Number of Channels: 1
  • Total Power: 300W
  • EQ: 3-band
  • Inputs: 1 x 1/4"

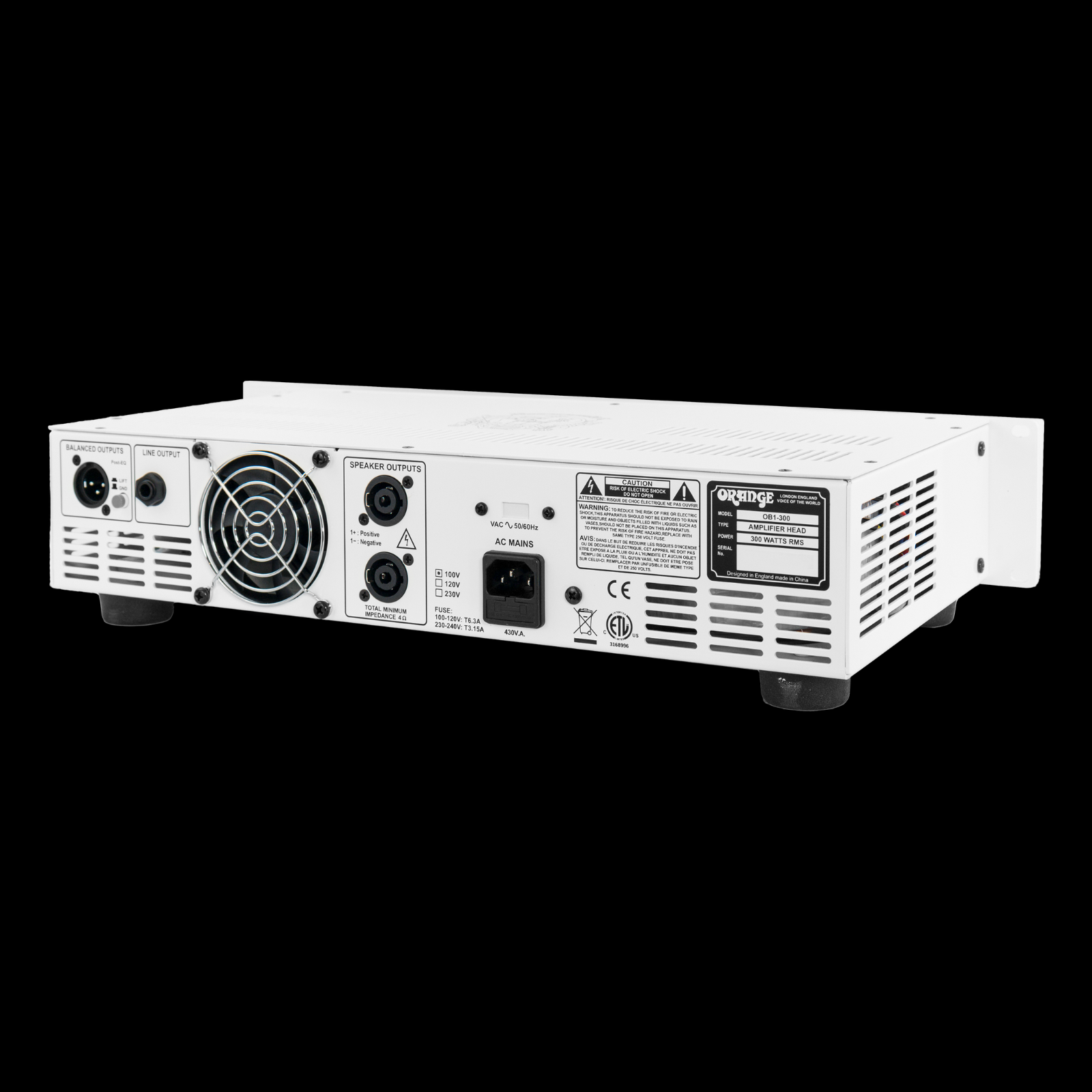

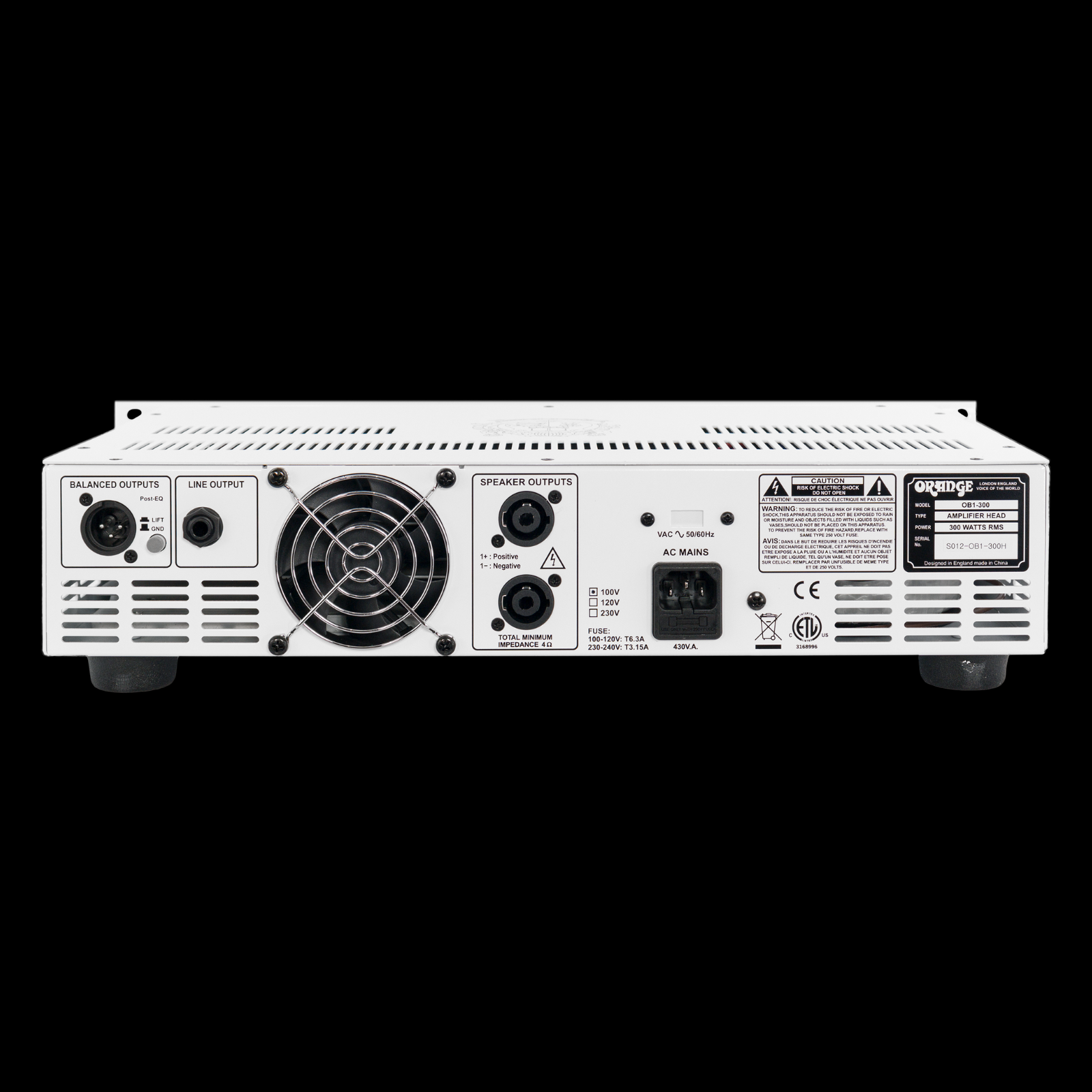

  • Outputs: 1 x XLR (DI), 1 x 1/4", 2 x speakON
  • Footswitch I/O: 1 x 1/4" (blend/gain)
  • Footswitch Included: No

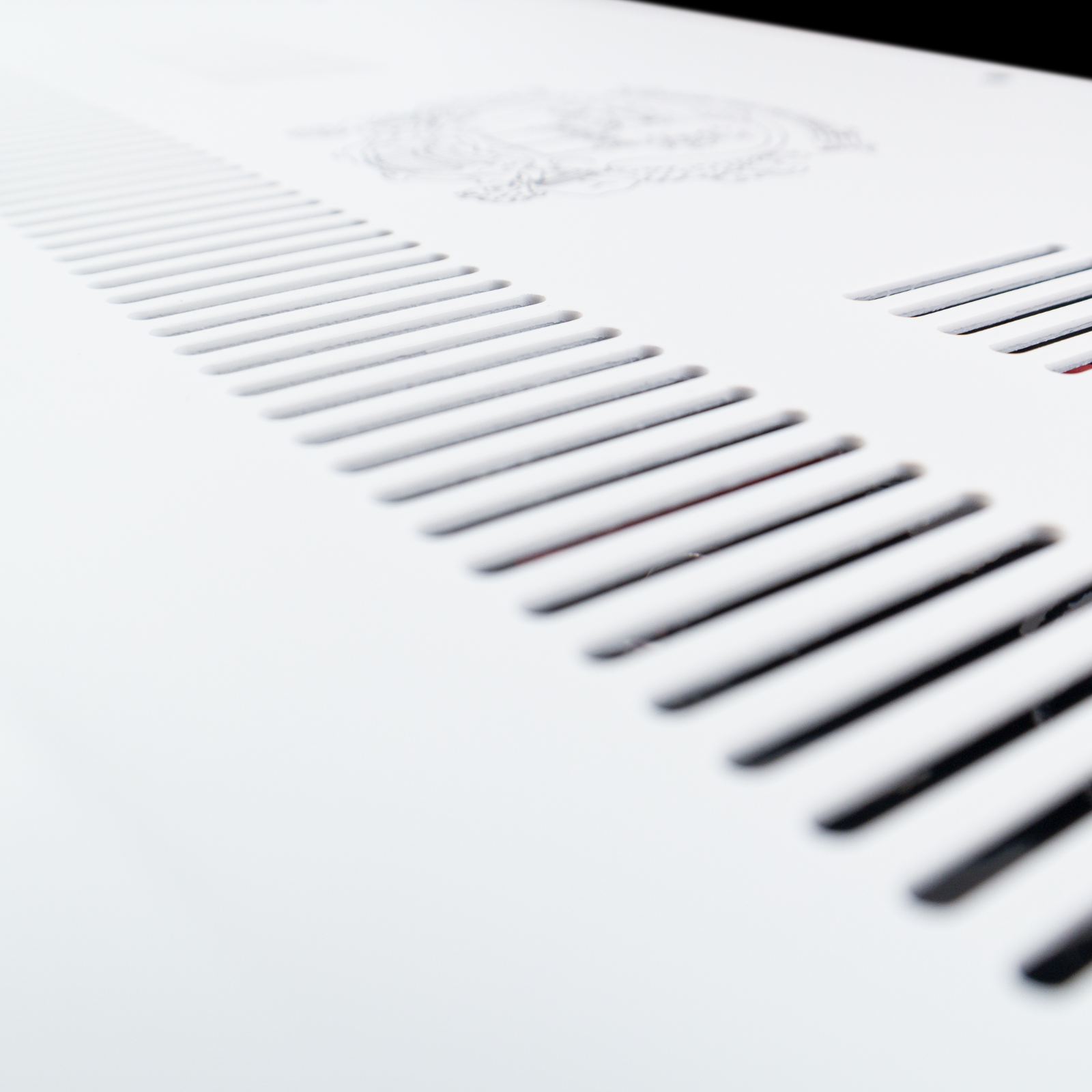

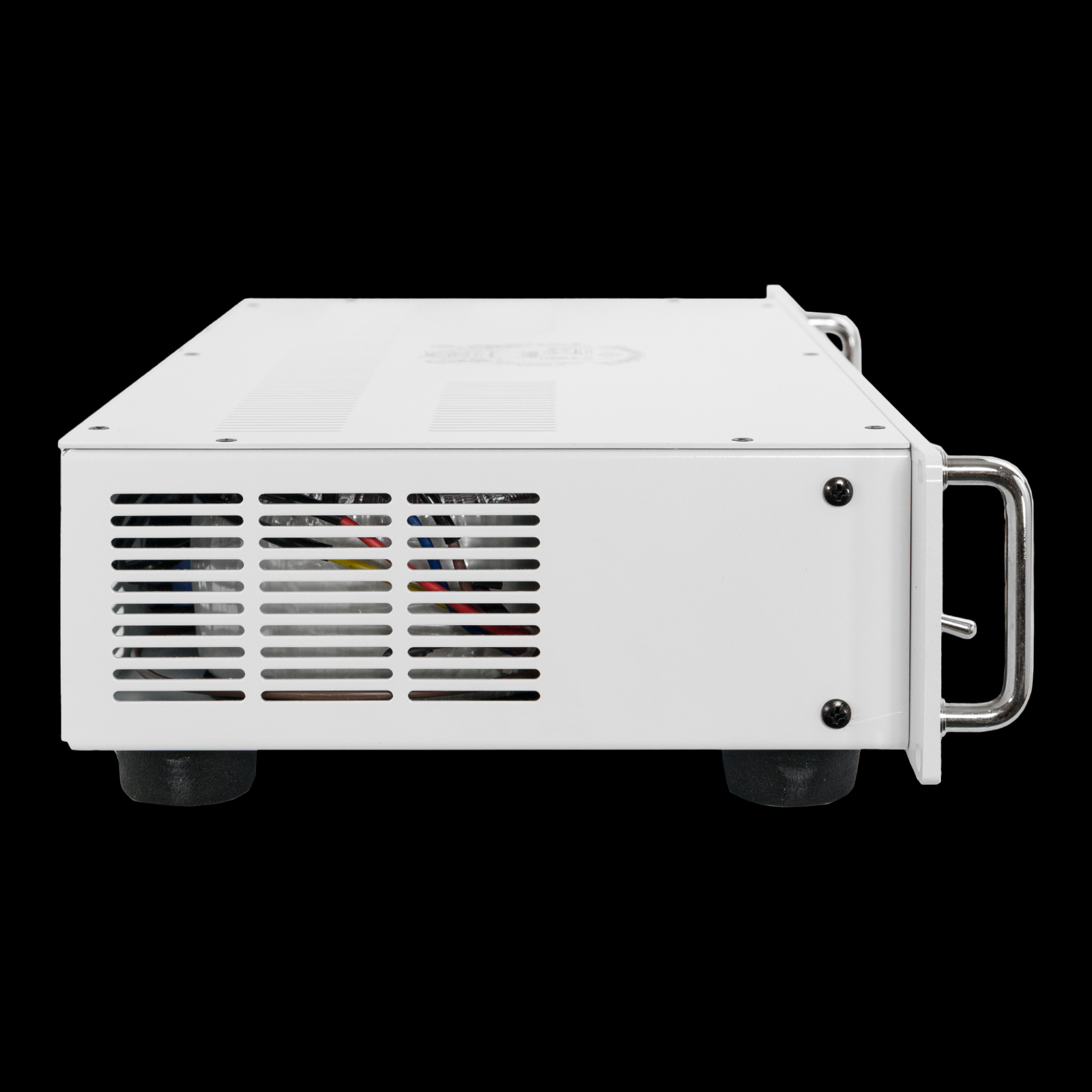

  • Cooling System: Internal Fan, Top/Side/Rear Air Vents
  • Power Source: Standard IEC AC cable
  • Height: 3.93"
  • Width: 18.97"
  • Depth: 10.43"
  • Weight: 21 lbs.
  • Manufacturer Part Number: OB1-300

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
