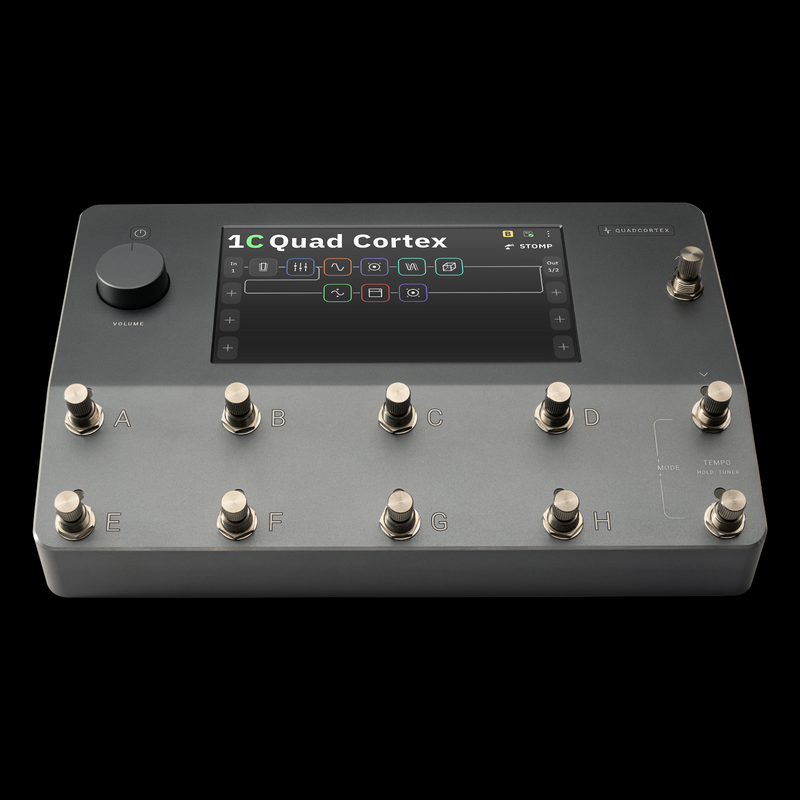

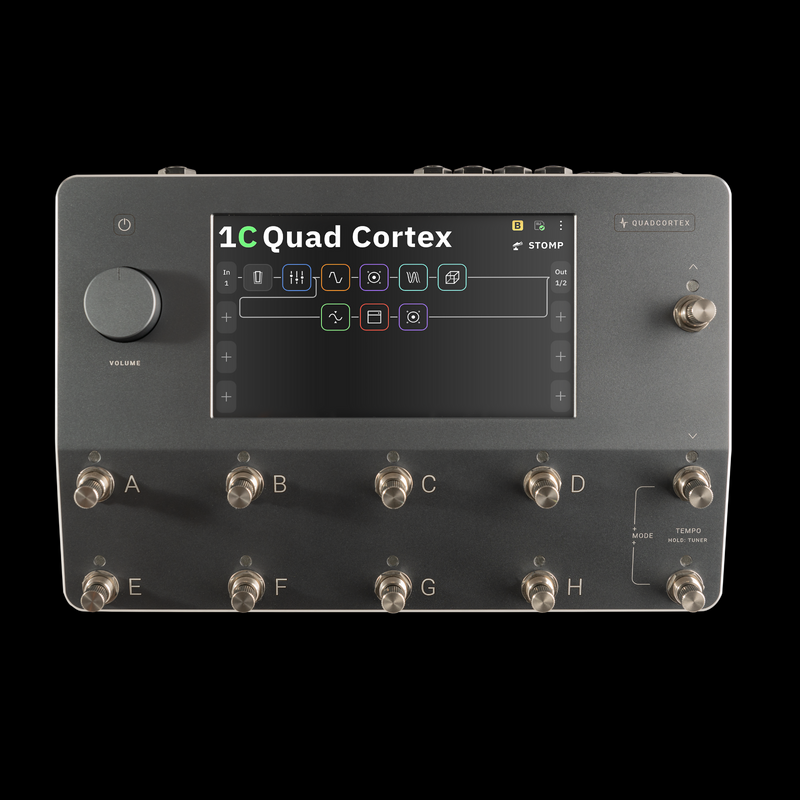

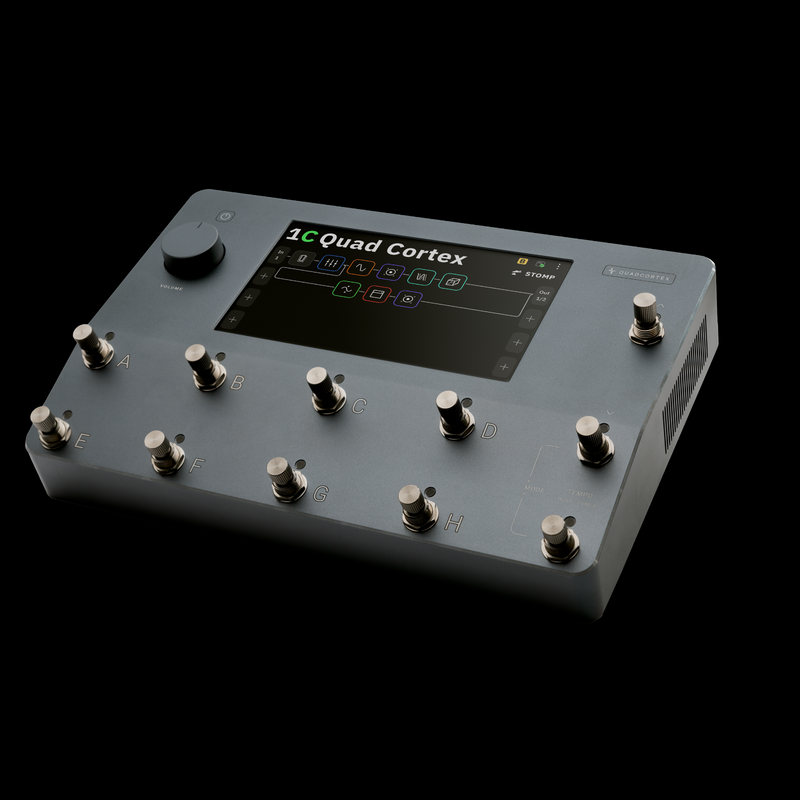

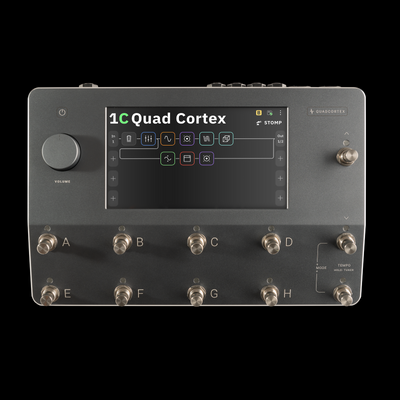

Quad Cortex is the most powerful floor modeler on the planet. With a total of 6 cores (4x SHARC+ and 2x ARM Cortex-A5 running at 500MHz each), this ludicrous amount of processing capacity provides limitless sound design possibilities.
Capture, share and download your favorite rigs’ sounds. Equipped with our unique biomimetic AI technology, Quad Cortex can learn and replicate the sonic characteristics of any physical amplifier, overdrive, and cabinet with unprecedented accuracy.
Unlike any other, our sophisticated neural network algorithm perceives sound akin to human perception, making it the most natural-sounding capture solution on the planet.
We are collaborating with some of the best producers and sound designers to provide an ever-growing collection of free rig captures in addition to our full-circuit models.
Unbelievably Compact
Using advanced mechanical design and manufacturing techniques, we managed to not only build the most powerful floor modeler/multi-effects processor on the planet, we also managed to pack it all in an extremely compact format.
Highlights
- Amazing modeler for both guitar and bass
- Bright 7-inch color multi-touch display
- The quad-core SHARC DSP provides enormous processing capability
- Over 50 amps, 70 effects, and 1,000 cabs are already preloaded
- Built-in looper with a maximum recording time of 4 minutes and 44 seconds
- Neural Capture digitizes your preferred amplifiers, effects pedals, and cabinets right down to the component level
- Aluminum chassis with 1.8mm glass display protection that is bulletproof
- I/O that is incredibly adaptable and has patch-by-patch customizable routing
- USB-based audio and MIDI with a variety of audio playback options
- Rotary switches with two functions allow for both footswitch and knob control
- Onboard Wi-Fi for cloud backups, firmware upgrades, and wireless tone access
Specifications
-
Multi-FX, Amp Modeling, Digital Amp Capture
-
Digital
-
10 Setlists, 256 Presets per Setlists
-
70+ Effects
-
12 x Reverbs, 5 x Delays, 9 x Modulation, 7 x Pitch, 11 x Wah/Envelope
-
50+ Amps, Neural Capture Technology
-
1000+ IRs, Third-party IR support
-

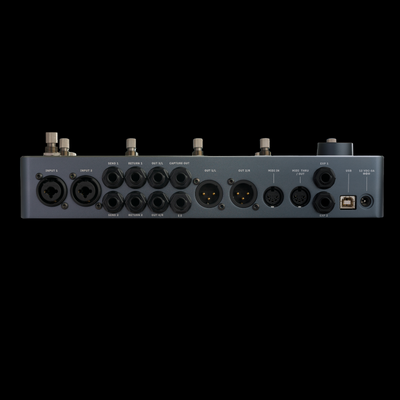

2 x XLR-1/4" combo (instrument/mic), 2 x 1/4" (return 1/2)
-
2 x XLR, 2 x 1/4" TRS, 2 x 1/4" (send 1/2)
-
In, Out/Thru, USB
-
1 x Type B
-
1 x 1/4"
-
2 x 1/4" (expression 1/2), 1 x 1/4" (capture signal out)
-
Wi-Fi (preset sharing, firmware updates), 2GHz Quad-Core SHARC Processors, 7" Multi-touch Display
-
Neural CNS Mobile app
-
12V DC power supply (included)
-
2"
-
11.4"
-
7"
-
4.2 lbs.
-
Quad Cortex
Please feel free to reach out to our knowledgeable sales staff with any additional questions!
