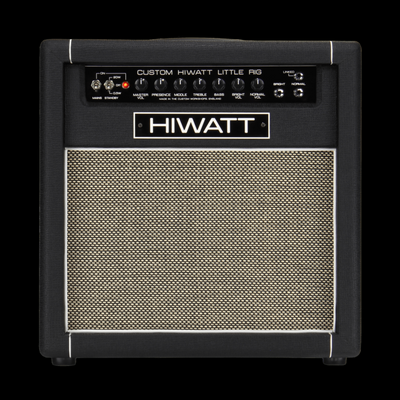

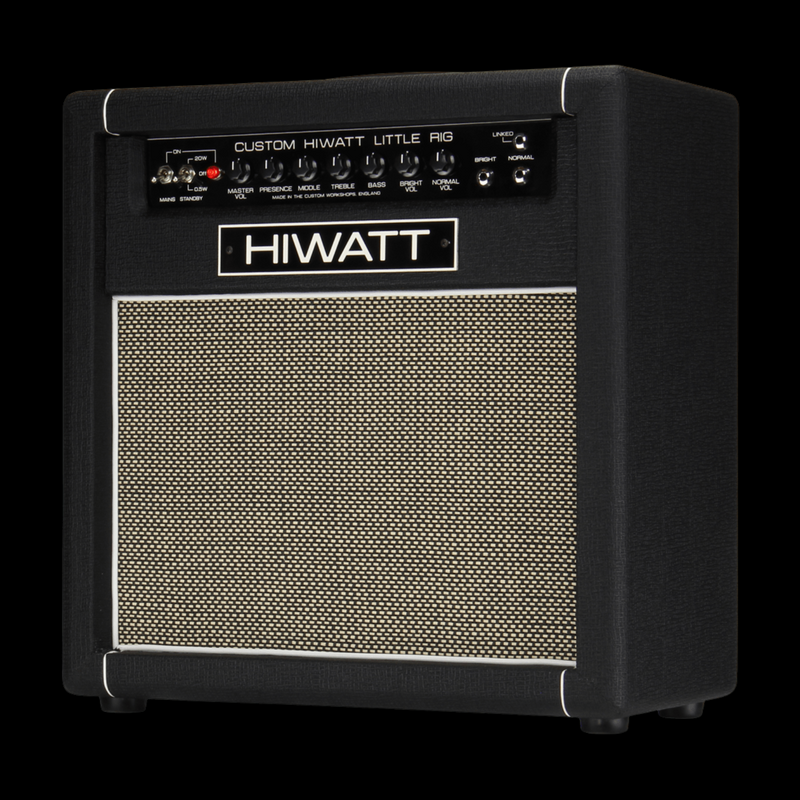

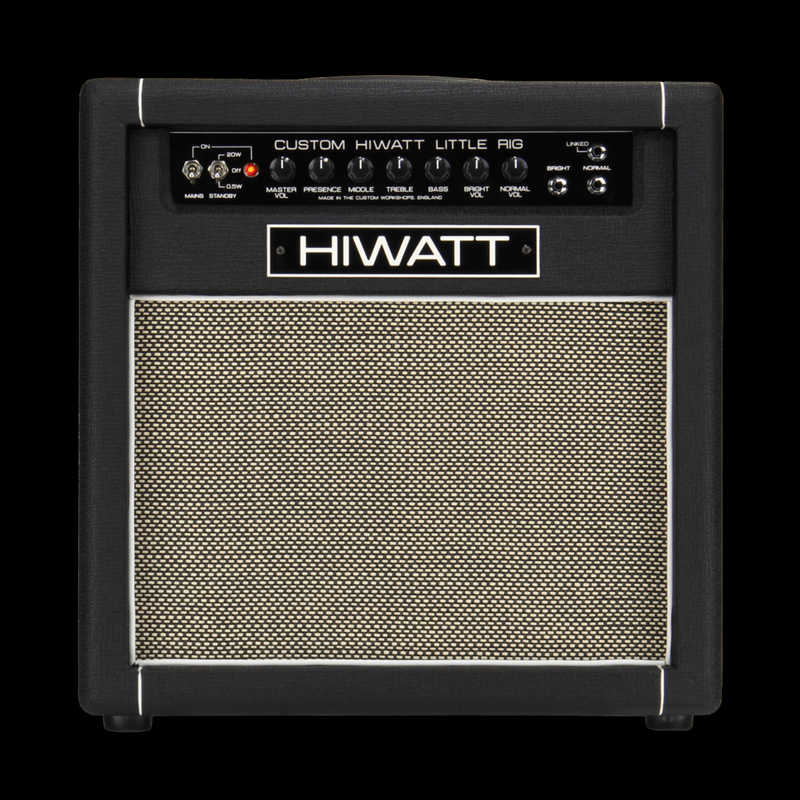

Hiwatt DR20/0.5 - The Little Rig 112 Combo W/ Fane Purpleback & Fatswitch

Hiwatt DR20/0.5 - The Little Rig 112 Combo W/ Fane Purpleback & Fatswitch

The legendary Hiwatt preamp circuit and tonestack found in the DR103/504 feeding a 20W (switchable to 0.5W) output section offers classic Hiwatt headroom, clarity, instantaneous response, sonic depth, and detail, with breakup at recording and club volumes (switch to 0.5W in the greenroom).

Iconic 60s British tone in a lightweight and portable package.

Highlights

• Original linked input circuit as famously modded for Pink Floyd, increasing signal to the V1 preamp valve and producing a fuller, more present and forward sound.
• Optional "Fat Switch" mod for a fuller tone with extended low-end range and increased volume.
• Normal and Brilliant channels. Versatile and intuitive, perfect for bringing life out of dark pickups or taming shrill high end in bright pickups.
• Volume for any gig — Switchable wattage allows switching from 20W down to 0.5W for bedroom playing and smaller venues.

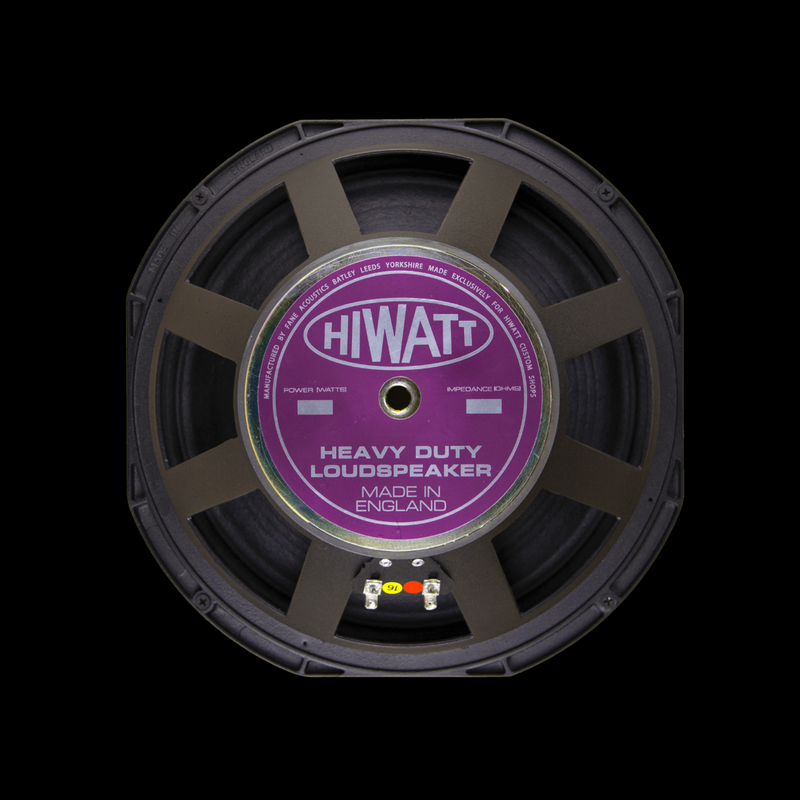

• Loaded with a Fane Purpleback 12" 150 W Speaker

Specifications

• Wattage: Switchable — 20W or 0.5W
• Channels: NormalBrilliant
• Inputs: NormalBrilliantLinked
• Output: 2 x 1/4" Speaker Out
• Preamp Valves: 4 x ECC83 (12AX7)
• Output Valves: 2 x EL84
• Controls: Normal VolumeBrilliant Volume3-Band EQ shared by both channels — Bass, Treble, MiddlePresence — Treble Boost shared by both channelsMaster VolumeStandby — On/OffMains — On/Off
• Voltage: 115v or 240v (Based on your region)
• Impedance: Switchable using Variable Impedance Inputs on the rear panel — 4 Ω, 8 Ω, or 16 Ω
• Road Ready — Rugged 18mm Birch-Ply ConstructionBand Ready — ’Soak Tested’ by our Custom Shop TechniciansTouring Ready — World Impedance Inputs
• Based on Hiwatt’s original circuit designed by Dave Reeves.Transformers Built-in England.Meticulously hand-wired to Harry Joyce’s exacting military standards.
• 🇬🇧 Proudly manufactured in the Hiwatt Custom Shops.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
