Entering production 10 years ago, the original Z Wreck amplifier has reached somewhat of a legendary status among Z players, being a hallmark collaborative effort between Dr. Z, the late amplifier guru Ken Fischer of Trainwreck Amps, and country music star Brad Paisley. All three combined their thoughts and wishes for a perfect stage-worthy amp then launched the Z Wreck, a design that has become a “halo product” for Dr. Z.
Yet being a non-master volume amp, reining in the Z Wreck’s robust volume has always been a concern for working musicians who require a controllable sonic footprint for smaller venues and less raucous gigs, but demand the tactile response and dynamic expressiveness found the amp. Controlling the loudness without compromising the character and harmonic overtones of the original Z Wreck formula became the challenge Dr. Z took up over nearly a year of development.
The new Z Wreck Jr. answers all concerns. As a half-powered sibling of the original Z Wreck, the Z Wreck Jr. introduces a post-phase inverter master volume circuit into the design ideal for studios, small clubs, and worship venues. Now the magical place between chiming clean and blooming overdrive the Z Wreck was lauded for is at the player’s fingertips at any volume level, be it full bore on stage or at home in the practice room. This master volume circuit shares a similar design to the master volume players have been raving about over the last few years that are found in our MK. II series of MAZ amps, the JETTA, and the NOVA.
The Z Wreck Jr. retains the attention to detail, reliability, and quality of workmanship found in all Dr. Z amps, using the exact same turret board construction and aircraft grade aluminum chassis of the original amp. We use the same reissue Tung Sol preamp tubes and NOS military grade 6n14n power tubes, as prescribed by Ken Fischer and true to the Trainwreck DNA. A 5Y3 rectifier tube controls the touch sensitivity and blooming response of the amp by reproducing the plate voltages found at the “comfort” setting in the original Z Wreck, making for a truly addicting playing experience.

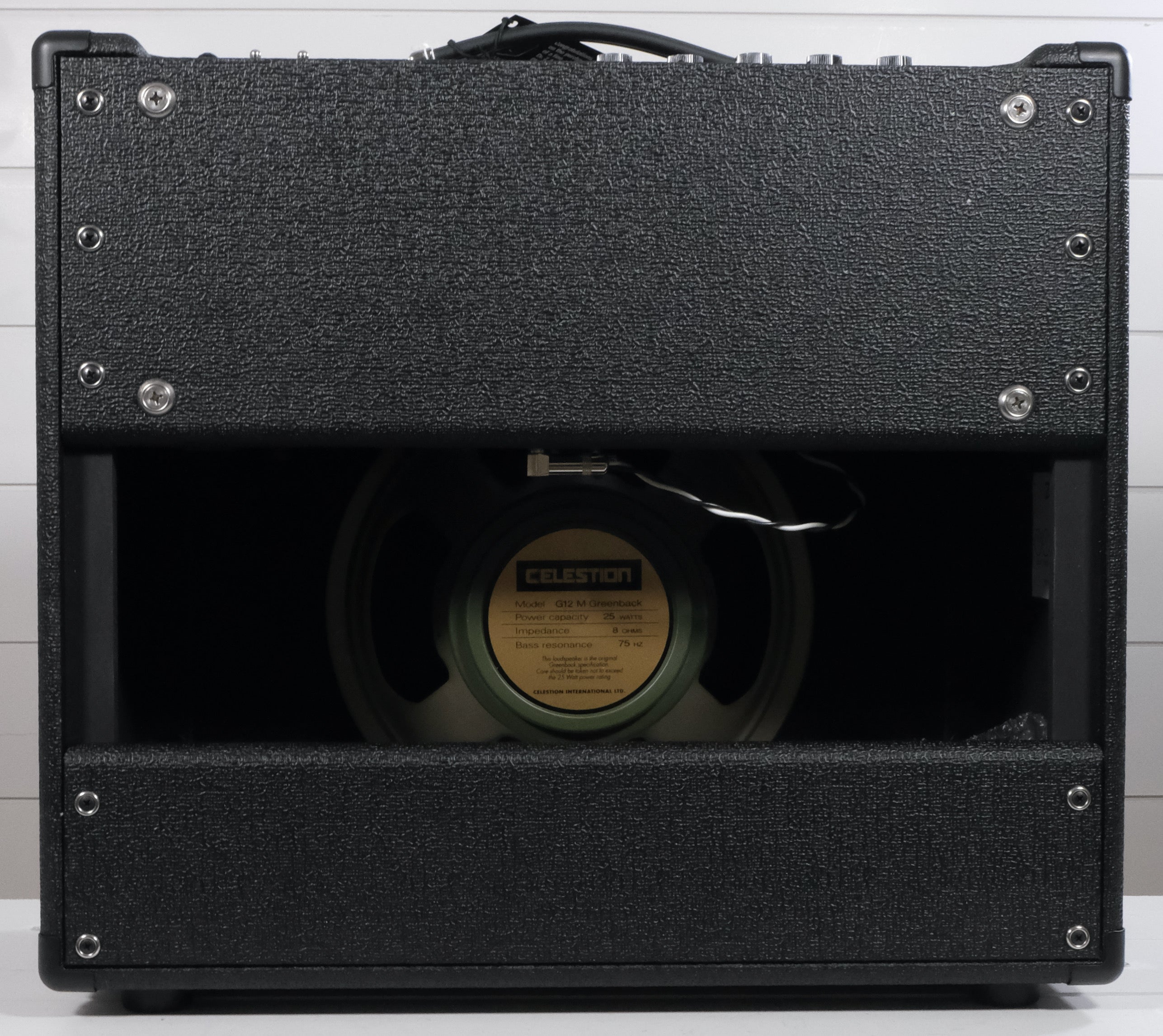

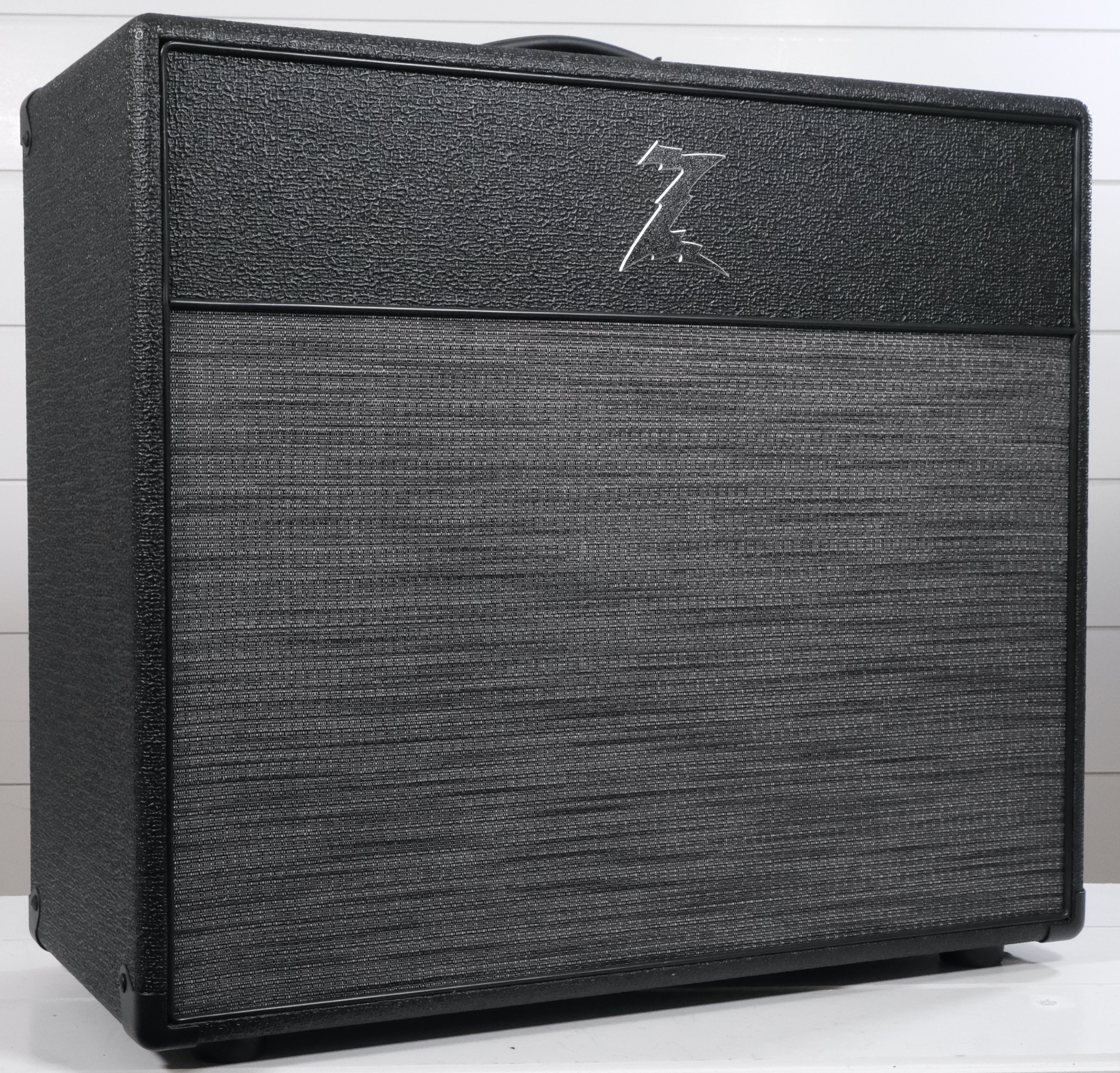

Featuring a more price-conscious cost than its larger counterpart, the Z Wreck Jr. is available in head or top-mounted 1×12 combo, the same dimensions as the standard Z Wreck but at a back-saving weight of 44 lbs. It is loaded with a Celestion Greenback 12” speaker, heard on a myriad of classic recordings over the past half a century.
|Power Output||15 Watts|
|Output Tubes||2 – 6n14n (EL84), Cathode Biased|
|Preamp Tubes||3 – 12AX7|
|Rectifier||1 – 5Y3|

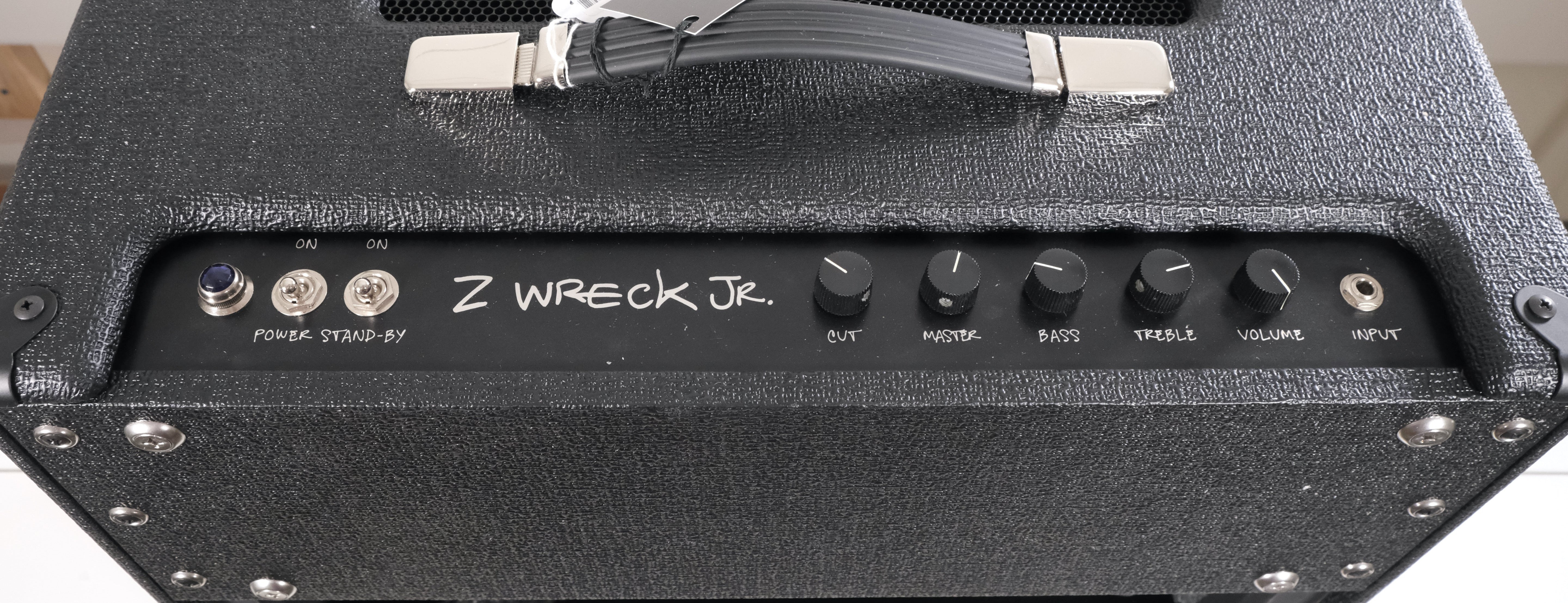

|Controls||Volume, Master, Bass, Treble, Cut|
|Configurations||Head, 1×12 Combo (w/ Celestion Greenback)|
|Dimensions & Weight||Head: 20 5/8”W x 9 1/2”D x 9 1/8”H, 32 lbs.
1×12 Combo: 22 1/2″W x 10 1/2″D x 20″H, 44 lbs.
|Other||4, 8, & 16 ohm outputs, NOS mil-spec power tubes|
Condition: Light wear typical of a gently used instrument. Light surface scratches, scuffs, etc.
The instrument pictured is the exact instrument you’ll receive. All fretted instruments receive a free complimentary professional setup.
Please feel free to reach out to our knowledgeable sales staff with any additional questions!
