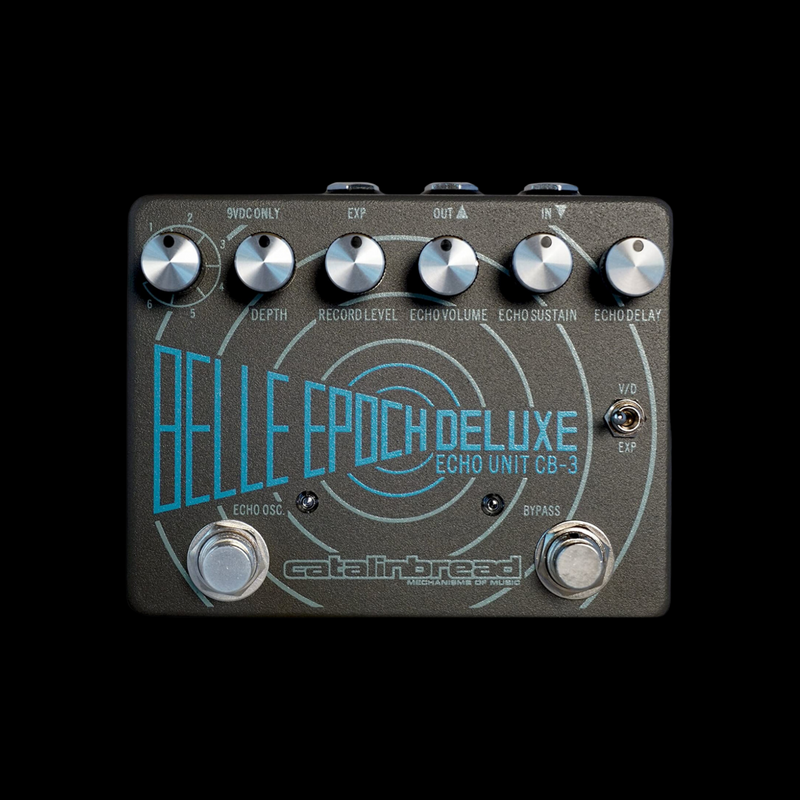

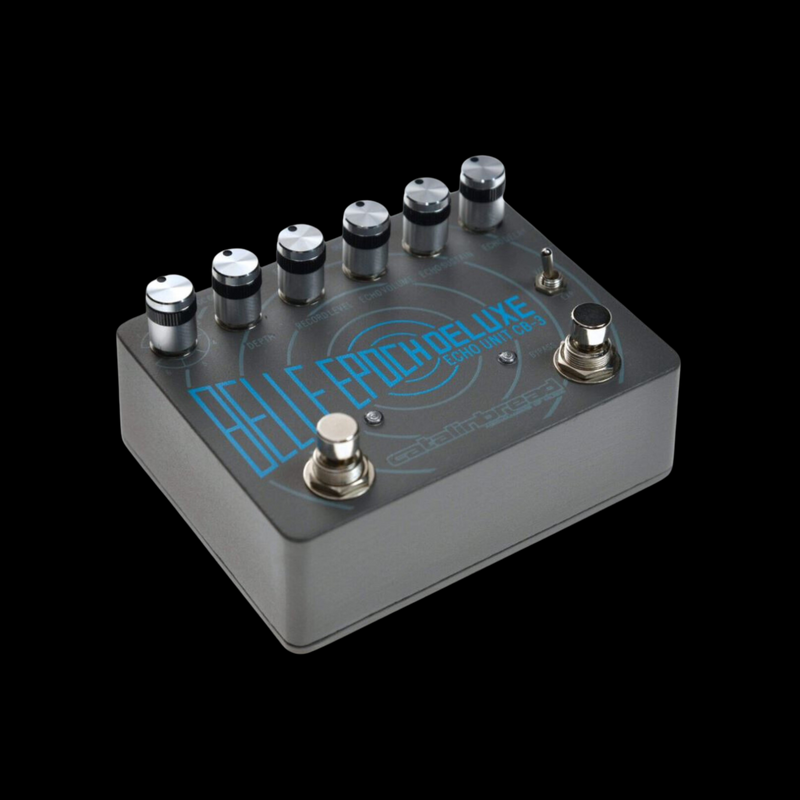

Catalinbread Belle Epoch Deluxe Tape Echo Pedal

Catalinbread Belle Epoch Deluxe Tape Echo Pedal

Exact EP-3 circuitry, from the 22 volt power rail, to the JFET preamp (later spec), to the mixer stage, to the high gain silicon transistor based record and playback amplifiers, to the feedback loop. All circuitry is faithfully reproduced and fine-tuned from the original EP-3 specifications. The only thing missing are the record and playback heads, with a 24-bit high-fidelity digital delay line taking the place of the tape.

All-discrete, through-hole construction with orange drop 225P capacitors, carbon composition resistors, germanium diodes, and other premium parts.

Highlights

• Expression pedal input for control of delay time, playback volume, filter sweep, or rotary speed with topside toggle switch

• You can select how much delay signal to feed back into the delay line using Echo Sustain

Specifications

• Power Source: 9V DC power supply (sold separately)
• Power Usage: 200mA
• Features: Internal tunable repeats trimpot, internal bypass type switch
• Max Delay Time: 800ms
• True Bypass: Yes (switchable to buffered mode)
• Height: 2.4"
• Width: 4.68"
• Depth: 3.66"
• Weight: .93 lbs.
• Expression: 1/4" TRS expression input
