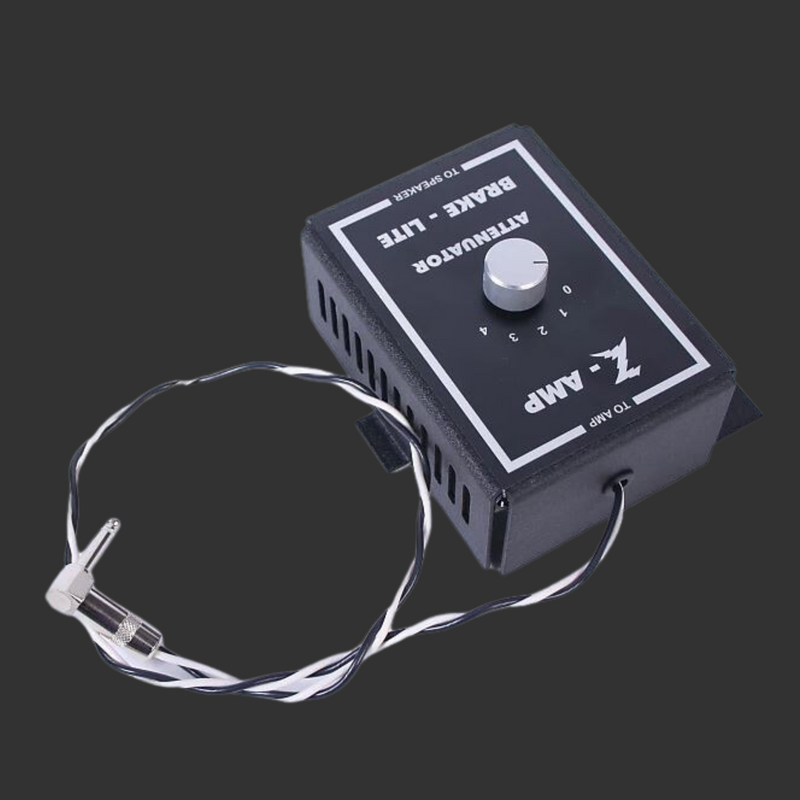

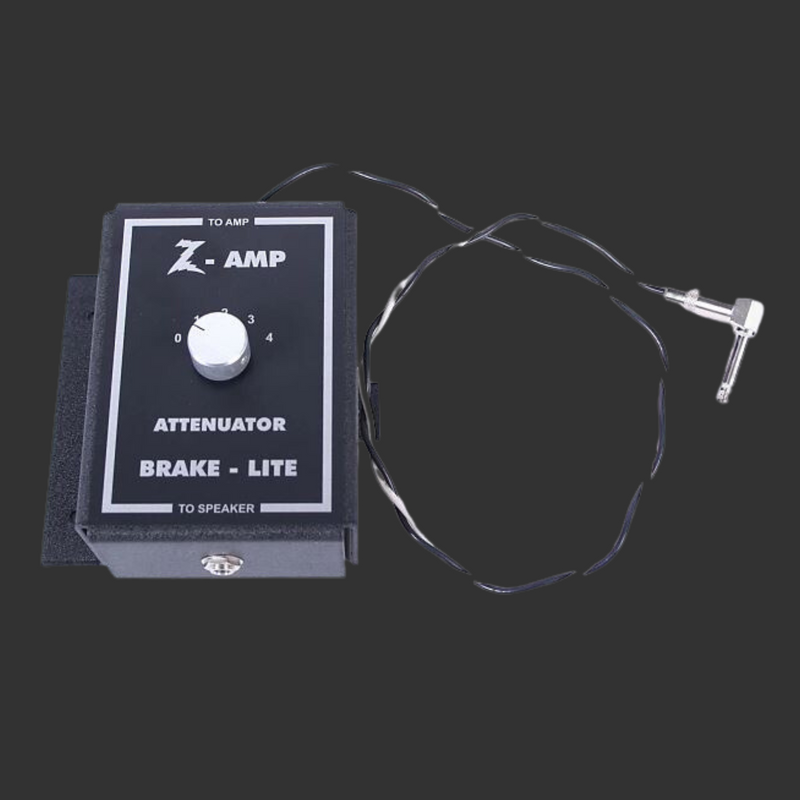

Dr. Z Amplification Brake-Lite Attenuator


Free Shipping on Most Products

Free Shipping on Most order(s) above $14.99 (over-sized products not included)

Dr. Z Amplification Brake-Lite Attenuator

The new Z Brake Lite Attenuator will be right at home mounted inside your combo amp. Like the Airbrake, there is no sacrifice in tone. Perfect for dialing in your combo to it’s sweet spot while dialing back the volume level.

The Brake Lite works with any tube amp up to 45 watts and can be used with 4, 8, or 16, ohm loads. Very simple to install, the Brake Lite mounts with 2 screws and has a hardwired speaker cable to plug into the amp chassis. Plug the speaker into the Brake Lite and you are ready to go.

Please note: the Brake Lite is NOT a stand alone unit and needs to be mounted in a combo for proper operation.


  • Including mounting screws
  • Accepts loads of 4 or 8 or 16 ohms
  • Any tube amp up to 45 watts compatible
  • Ideal for recording, performing, or practicing


  • Power Handling:Up to 45W max
  • Impedance: 4/8/16 ohms
  • Attenuation:5-way switch, 2dB-11dB settings
  • Inputs: Cable with 1/4" plug
  • Outputs: 1 x 1/4" (to speaker)
  • Power Source:Passive
  • Height: 2.24"
  • Width:4"
  • Depth:5.5"
  • Weight:1 lbs.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
