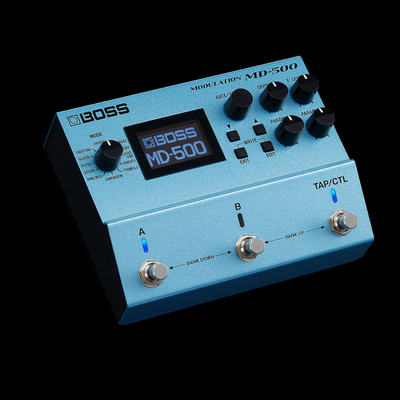

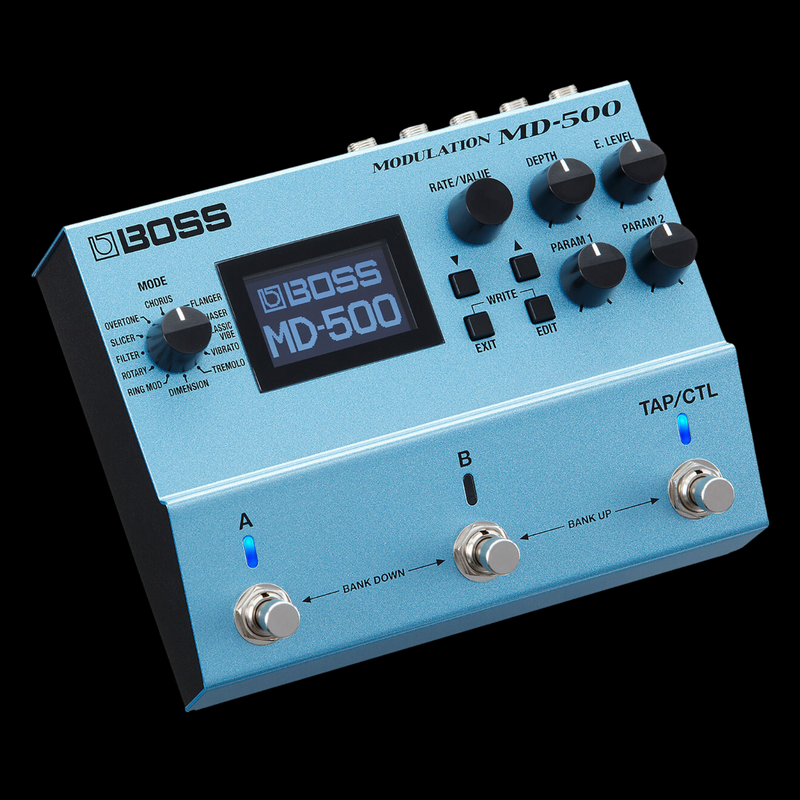

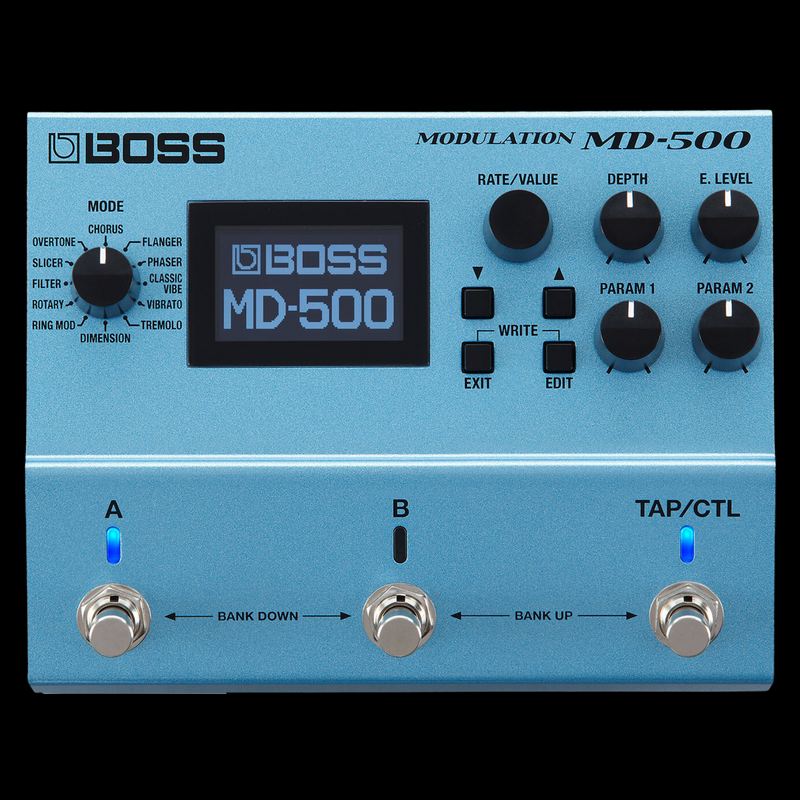

Boss MD-500 Modulation Multi Effect Pedal

Item ID: MD500

In Stock! Ready to ship immediately!

Free Shipping on Most Products

Free Shipping on Most order(s) above $14.99 (over-sized products not included)

Boss MD-500 Modulation Multi Effect Pedal

Powered by advanced BOSS technology, the ultra-versatile MD-500 delivers nearly any type of modulation effect a musician could want, and then some. Included are 28 different algorithms with intensive programming parameters, offering a nearly limitless sound palette to create with. And with class-defying 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate throughout, you’ll enjoy pristine sound quality that extends beyond the capabilities of the very best studio hardware.

Effects in the MD-500 include many new Prime types developed with cutting-edge BOSS tech, plus authentic sonic recreations of vintage classics like the CE-1 Chorus Ensemble, Roland Dimension D, ‘70s script phaser, ‘80s tri-chorus, and numerous others. With the ability to use two patches at once with A/B Simul mode, the MD-500 can likely cover all your mod needs with one convenient pedal. And by inserting drive pedals in the MD-500’s flexible external loop, it’s easy to place mod effects before, after, or around the loop as needed for the very best sound.


  • Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • 12 modes and 28 modulation types, all with deep editing parameters
  • Classic mod effects and BOSS originals, newly enhanced with cutting-edge technology
  • A/B Simul mode for using two patches at once, with your choice of series/parallel connection and mixed or split A/B output
  • Insert Loop function allows you to use mod effects before, after, or around drive pedals
  • Graphic LCD and intensive real-time control options
  • 297 onboard patch memories and hands-on controls
  • Selectable buffered-bypass or true-bypass operation
  • MIDI I/O for interfacing with MIDI control devices
  • USB-MIDI for connecting to the MD-500 Editor/Librarian or a DAW
  • Runs on four AA-size batteries or PSA-series AC adapter


  • Pedal Type: Multi-modulation effects

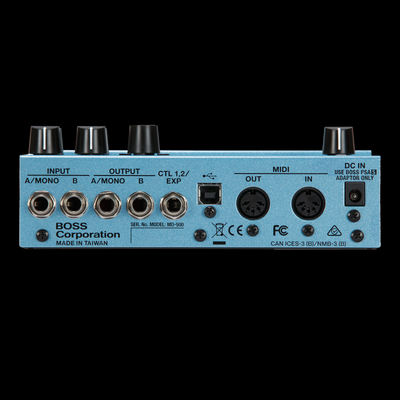

  • Inputs: 2 x 1/4" (instrument in), 1 x 1/4" (control/expression)
  • Outputs: 2 x 1/4"
  • MIDI: In/Out
  • USB: 1 x Type B
  • Bypass Switching: Switchable - buffered/true bypass
  • Power Source: 9V DC power supply (sold separately)
  • Power Usage: 225mA
  • Batteries: 4 x AA batteries
  • Height: 2.5"
  • Width: 6.75"
  • Depth: 5.43"
  • Weight: 2 lbs. 4 oz.
  • Manufacturer Part Number: MD-500

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
