Line 6 DL4 MkII Delay Modeler Pedal

Item ID: 990403705

In Stock! Ready to ship immediately!

Free Shipping on Most Products

Free Shipping on Most order(s) above $14.99 (over-sized products not included)

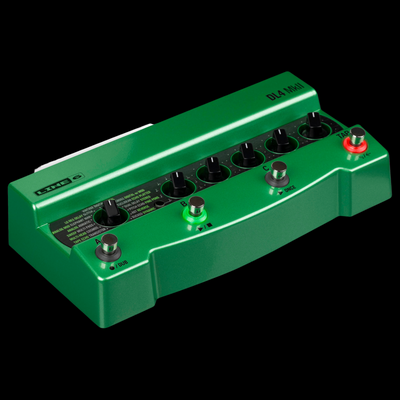

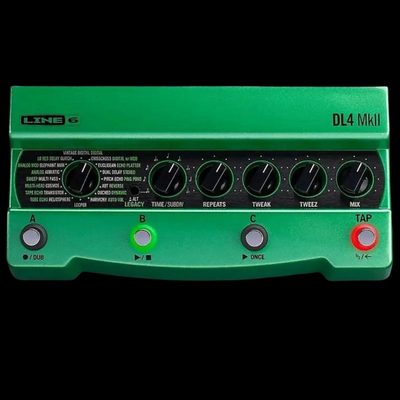

Line 6 DL4 MkII Delay Modeler Pedal

The DL4 MkII includes everything in the original DL4 Delay Modeler, while introducing 15 new MkII delays drawn from our HX® family of amp and effects processors and both 4-Switch and 1-Switch loopers with up to 240 seconds of record time (expandable to several hours using an optional microSD card). There's also an XLR microphone input, MIDI In and Out/Thru connectors, heavy duty footswitches, three bypass options, and a jack for connecting an optional expression pedal or two additional footswitches. The DL4 MkII is also smaller and lighter than the original, making it an even more appealing choice for modern musicians.


  • Update of the classic DL4
  • Features the same footswitch and knob arrangement as the previous version
  • Includes all of the sounds from the original pedal, as well as 15 new HX-derived effects and 15 reverbs
  • Recording times of up to 240 seconds are provided by 1- and 4-switch loopers
  • Longer recording times are available with microSD cards, and they can be stored through power cycles
  • It is possible to arrange the looper before or after other effects, and it can operate in either mono or stereo
  • Vocals can be looped using an XLR microphone input without the use of extra converters or other devices
  • Program change, CC, and other MIDI messages can be accommodated using MIDI In and Out/Thru DIN connectors
  • Dynamically change your parameters and choose presets
  • 3 presets are accessible via the A, B, and C footswitches, or 6 if the Tap switch is configured to switch between two preset banks (A,B, C and D, E, FU
  • Up to 128 MIDI selectable presets can be kept
  • True, buffered, and DSP bypass switches
  • Can be used with an expression pedal


  • Pedal Type: Delay
  • Analog/Digital: Digital
  • Presets: 6 x User, 128 via MIDI
  • Effects: 30 x Delay, 15 x Reverb
  • Max Delay Time: 4 seconds
  • Looping Time: 2 minutes (stereo), 4 minutes (mono), Expandable to several hours with microSD card
  • Tap Tempo: Yes
  • Inputs: 2 x 1/4" TS (L/mono, R), 1 x XLR (mic/instrument)
  • Outputs: 2 x 1/4" TS (L/mono, R)
  • MIDI I/O: In, Out/Thru, USB
  • Other I/O: 1 x 1/4" (expression/dual external footswitch/one of each)
  • USB: 1 x USB-C
  • Bypass Switching: True Bypass, Buffered, DSP
  • Power Source: 9V DC 500mA power supply (included)
  • Height: 2"
  • Width: 9.25"
  • Depth: 4.5"
  • Weight: 2.07 lbs.
  • Manufacturer Part Number: 99-040-3705
